15

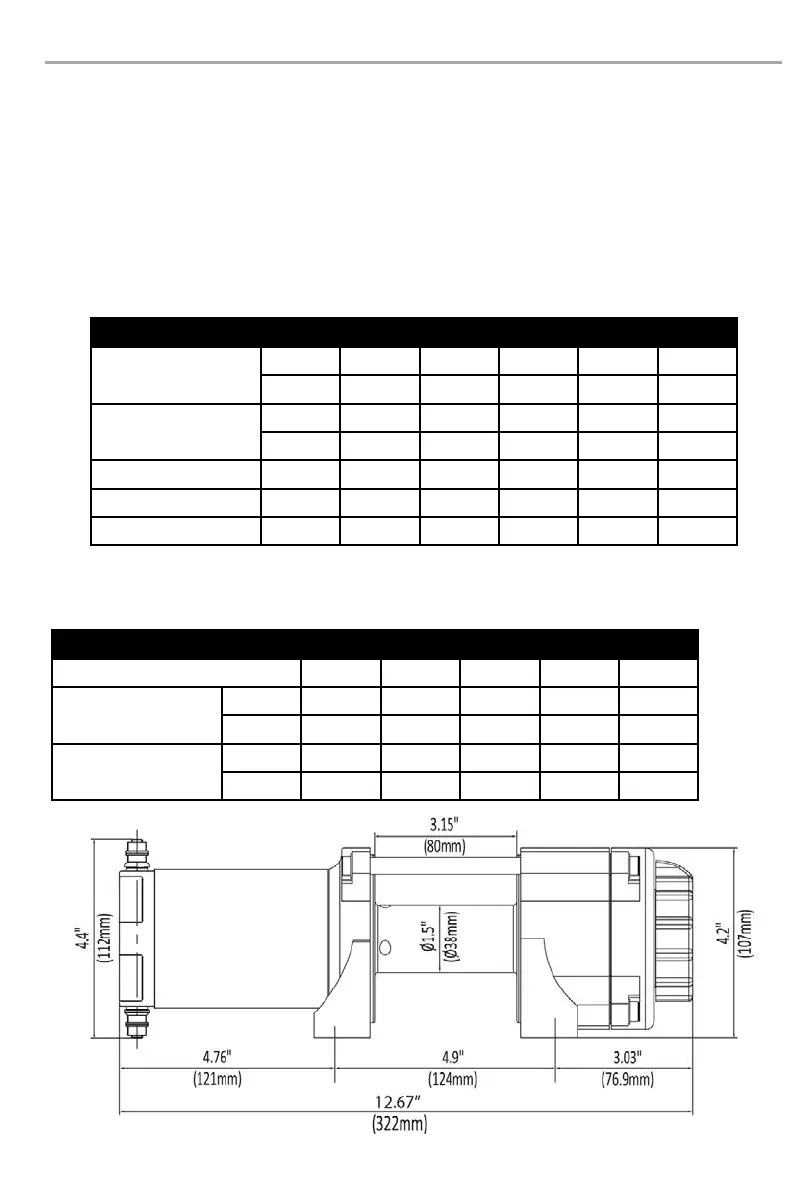

MODEL #SE25 – 2,500LB (1134KG) WINCH
SPECIfICATIONS
speCIfICaTIons
Performance:
Rated Pull ......................................... 2,500 lb (1134 kg)
Gear Reduction Ratio ............................................171:1
Motor ...................Permanent Magnet, 1.20 HP (DC 12V)
Drum Size ........................ 1.50 x 3.15 in. (38 x 80 mm)
Cable Dimensions .... 3/16 in. x 50 ft. (4.8mm x 15.25m)
Net Weight ............................................. 24.3 lb. (11 kg)
Mounting Bolt Pattern ......................................................
4.88 in. x 3.00 in. (12.4 cm x 7.6 cm)
Overall Dimensions .........................................................
12.67 in. (L) x 4.06 in. (W) x 4.20 in. (H)
(32.2 cm x 10.3 cm x 10.7 cm)
Line Speed and Motor Current (First Layer)
Line Pull
LB 0 1000 1500 2000 2500
KG 0 454 680 907 1134
Line Speed
(12 VDC)
FPM 8.86 7.55 6.23 5.25 4.27
MPM 2.7 2.3 1.9 1.6 1.3
Max Current A 15 50 80 120 170
Run Time * Minutes 1 1 1 1 1
Cooling Time ** Minutes 5 5 5 5 5
* If the motor becomes uncomfortably hot to the touch, stop winching immediately and let it cool down for 5 minutes. Do not pull for
more than one minute at or near the rated load.
** Electric winches are designed and made for intermittent use and should not be used in constant duty applications.
Line Pull and Cable Capacity Per Layer
Layers of Cable on Drum 1 2 3 4 5
Rated Line Pull
LB 2500 2033 1713 1480 1303
KG 1134 922 777 671 591
Cable Capacity
FT 7.15 15.45 24.7 34.5 50
M 2.18 4.71 7.52 10.52 15.24
