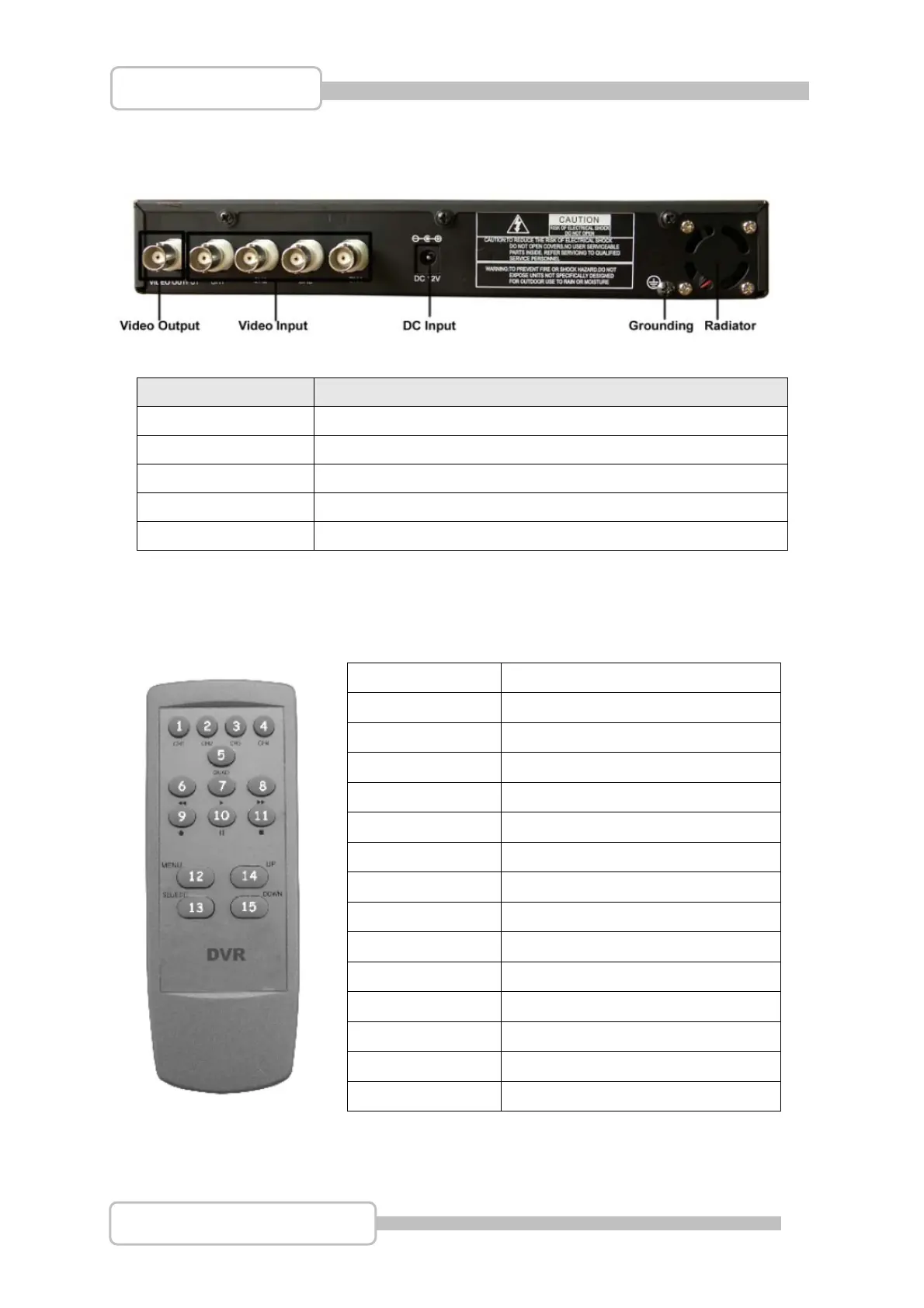

3. Rear Panel
No. Function
Video Output (BNC) BNC connector for attaching to Monitor.
Video Input (BNC) BCN Inputs for 4x Video Cameras.
DC Input DC-IN (12V)
Grounding Screw for attaching grounding cable (if required).
Cooling Fan Vent Vent for cooling fan (do not cover).
4. Remote Control
1.
CH1 Select or enlarge CH1
2. CH2 Select or enlarge CH2
3. CH3 Select or enlarge CH3
4. CH4 Select or enlarge CH4
5. QUAD Quad View
6. REW Rewind
7. PLAY Play record list
8. FWD Forward
9. RECORD Record
10. PAUSE Pause
11. STOP Stop recording or playing
12. MENU Enter or exit setup menu
13. Select / Edit Modify item
14. UP Move up prompt
15.
DOWN
Move down prompt
