KI Balance - WireWorks Off-Module Mounted Overhead Units; Preparation and Hanging

4
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Balance
®
Overhead Cabinet
Assembly Instructions
WireWorks
®
Off-Module Mounted
Overhead Units
1. WireWorks off-module overhead
units can only be hung with the top
aligned to a 12” high tile. To make
hanging the unit easier, remove the
top cap or tile directly above the top
of the overhead.
2. Disengage the overhead locks on the
mounting brackets by lifting the tabs
closest to the back of the overhead
and pulling it toward the cabinet.
With the overhead locks pulled out
toward the front of the cabinet, hang
the top and bottom of the mounting
brackets into the tracks of the panel’s
horizontal rail.
Caution: Make sure the cabinet is
hanging on the horizontal track and
not on the tile.
3. After the unit is hung in the track,
move it to the desired position by
gently lifting up while sliding it.
Secure the cabinet on the tracks by
pushing the overhead locks toward
the track (Figure 3).

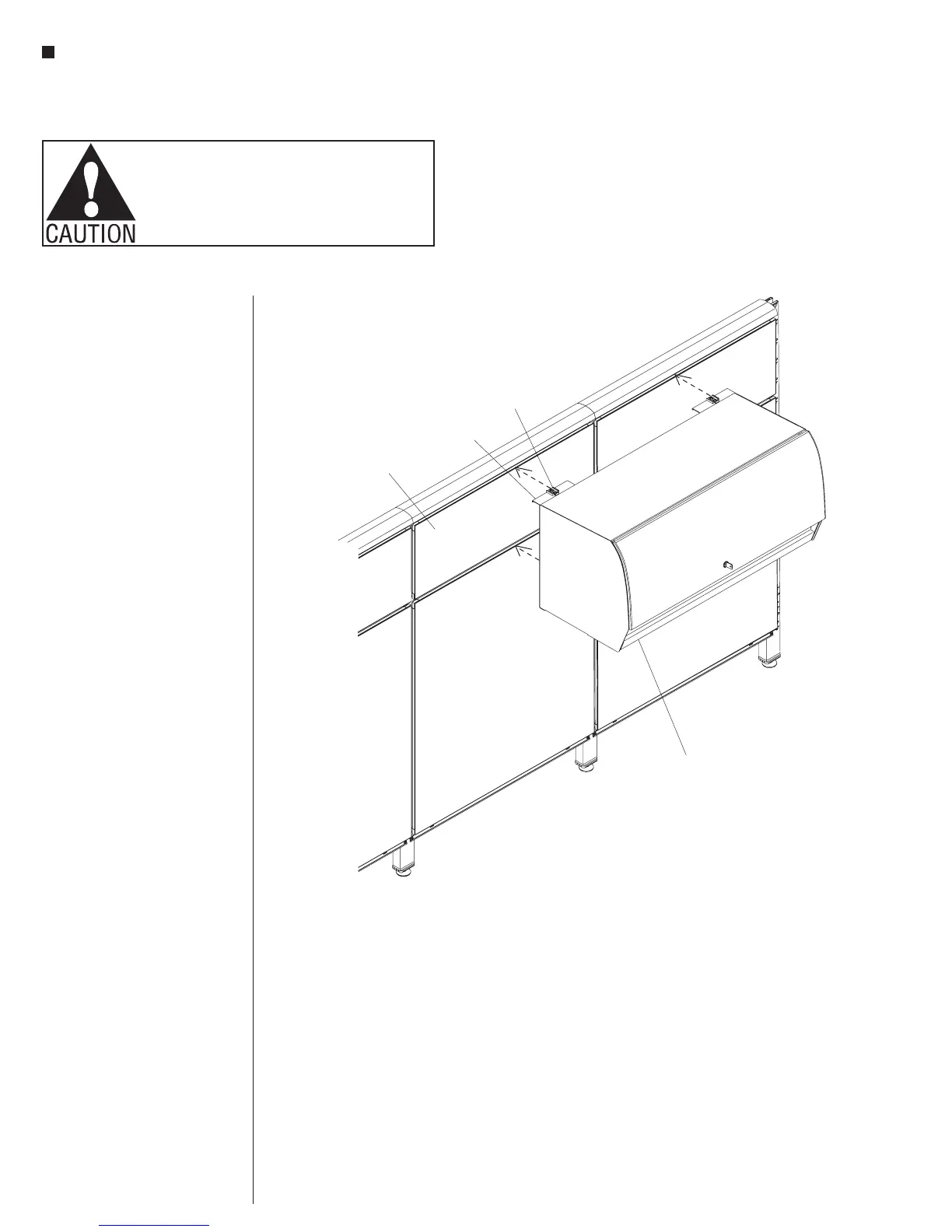

Figure 3
12 tile"
mounting
bracket
overhead
lock
off-module
cabinet
