KI Balance - Upmount Bracket Installation; Bracket Positioning

6
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Balance
®
Overhead Cabinet
Assembly Instructions
Upmount Bracket

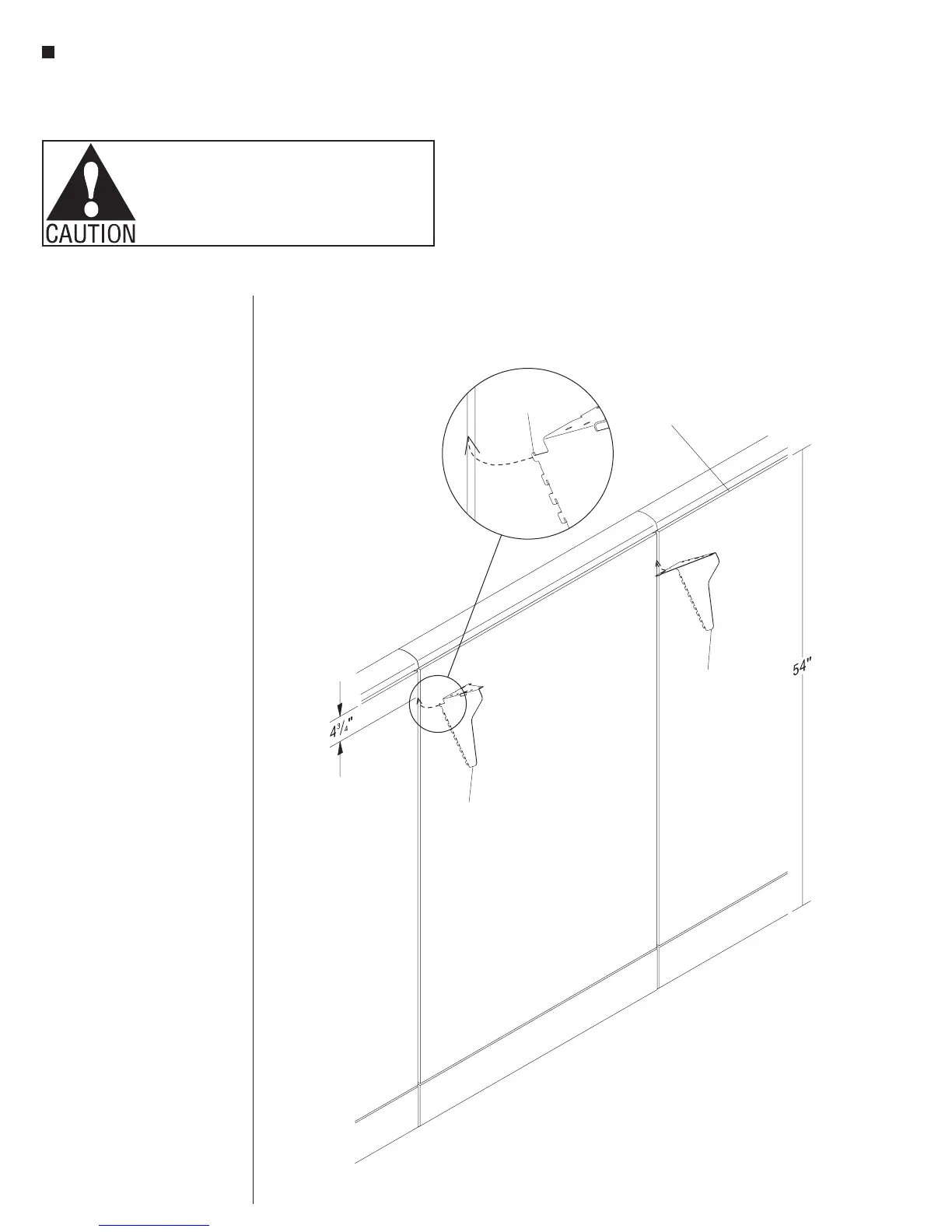

1. Position brackets on a 54” high
WireWorks panel with the top tooth
(antidislodgement) engaged in
the sixth slot from the top of the
uppermost tile so there is a 4
3
/
4
”
space between the top of the tile
and the top of the bracket. This will
position the bottom of the balance
cabinet at 20” above a 29” high
worksurface (Figure 5).
antidislodgement
tooth
WireWorks
Panel
Detail A
Figure 5
upmount bracket
(right-hand)
upmount bracket
(left-hand)
