Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Seminar
TM
Tables with 4-Wire Power System - Two-Direction Power Infeed & Jumpers
Assembly Instructions
Two-Direction Power Infeed
Installation
Note: All table connections (joint
fasteners and splice plates) must be
securely fastened before electrical
components can be installed.
Note: Refer to the space-planning
layout for power infeed location. The
instructions below cover two-direction
power infeed using a quad block and
receptacle jumpers. See pages 9 & 10
for single-direction power infeed.
20. Reference the space-planning
layout and determine the table
base location for the two-direction
power infeed. Check and assure
that the duplex receptacles are
installed correctly (Page 8,
Figures 6 & 7). The ground prongs
must be oriented to the side of the
associated power infeed. For
two-sided power infeed the
receptacles will be oriented in
different directions on each side
of the power infeed. If below floor
level power is to be run to the
tabletops, the power infeed should
already be in place. To install above
floor level power infeed, run the
exposed wires end of the power
infeed through the oval cut-out in
the tabletop mounting flange, down
the table base column and out the
lower wire access hole, then plug
the connector end into the first
duplex receptacle next to the power
infeed (Figure 10).
21. Verify that the power infeed’s
exposed wire ends will reach their
desired connection location at floor
level. Do not attach power infeed to
any source power until instructed to
at a later time (Page 18, Figure 18).
22. Per the space-planning layout,
locate the required quad block
and plug the two-direction power
infeed plug end into the quad block.
Then locate the required receptacle
jumpers and plug them into the
installed duplex receptacles. At the
quad block on the two-direction
power infeed, two receptacle
jumpers will plug into the quad
block as illustrated (Figure 10).

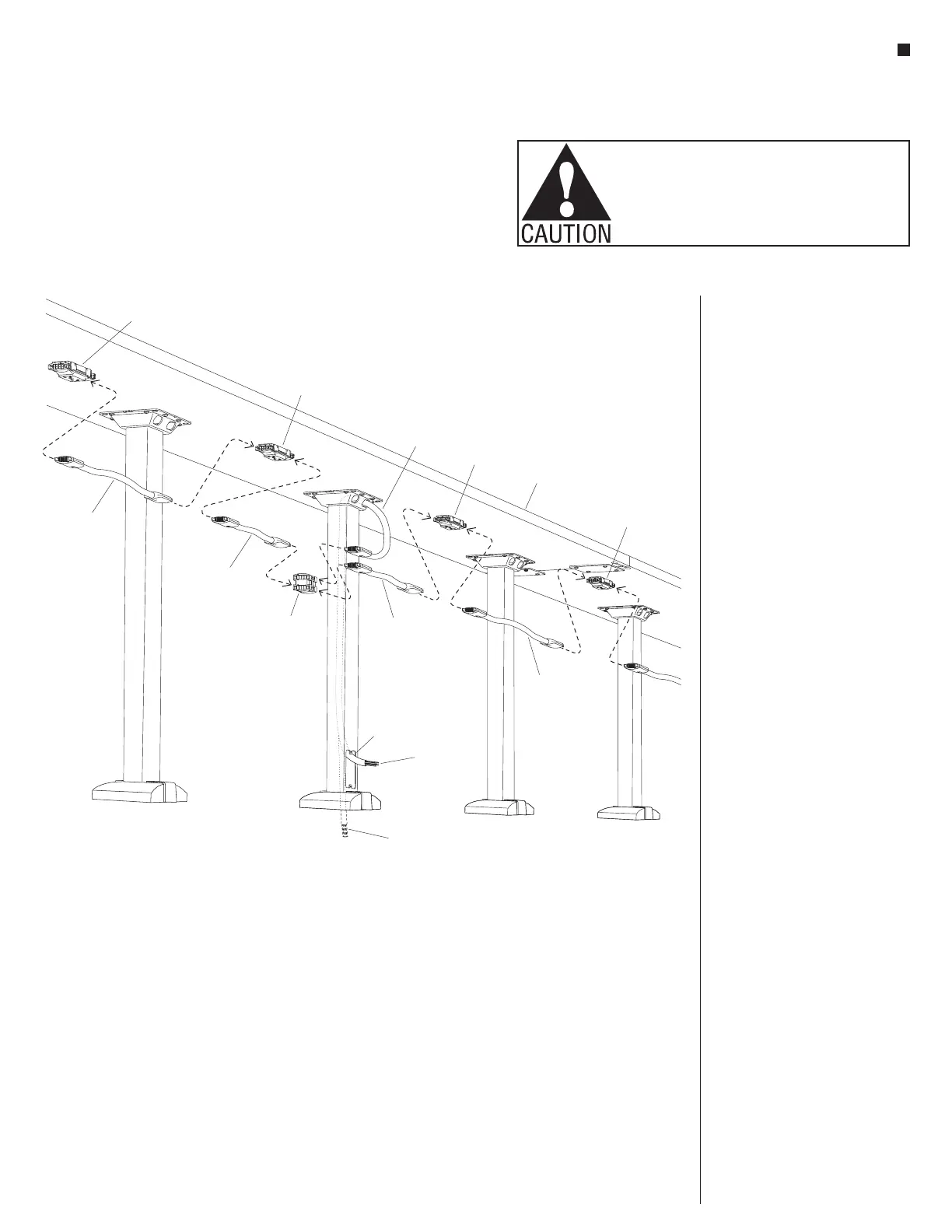

Figure - Power Infeed Two-Direction (right-hand or left-hand)10
lower wire
access hole
tabletop
power infeed
(exposed end)
power infeed
(run from below oor level)
duplex
receptacle
duplex
receptacle
duplex
receptacle
duplex
receptacle
receptacle
jumper
receptacle
jumper
4-wire
blockquad
receptacle
jumper
receptacle
jumper
two-direction
power infeed
plug end
