Tables with 4-Wire Power System - Power Modules
Assembly Instructions
tabletop
Dean In-Surface
power module
with 3-prong plug
Detail H
receptacle hub
shroud
duplex
receptacle
Dean In-Surface
power module
3-prong plug

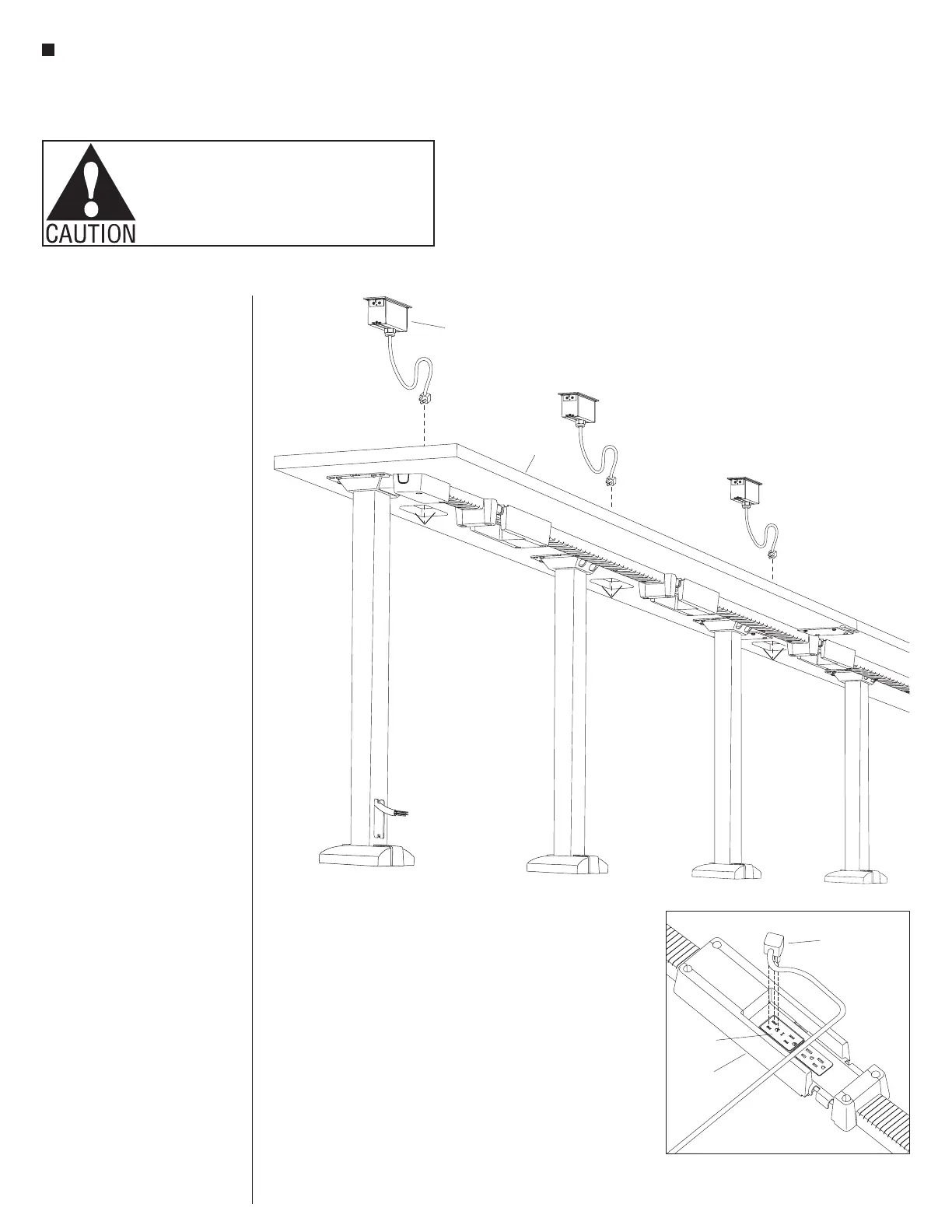

Figure 14
Dean
®
In-Surface Power Module
Installation
29. Install the Dean In-Surface power
module with 3-prong plug into the
mounting hole in the tabletop per
the manufacturer’s instructions
included with the module
(Figure 14).
30. Once the Dean In-Surface power
module with 3-prong plug is
installed, route the power cord to
the nearest duplex receptacle under
the table and plug the 3-prong plug
end into it (Detail H).
