15
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Seminar
TM

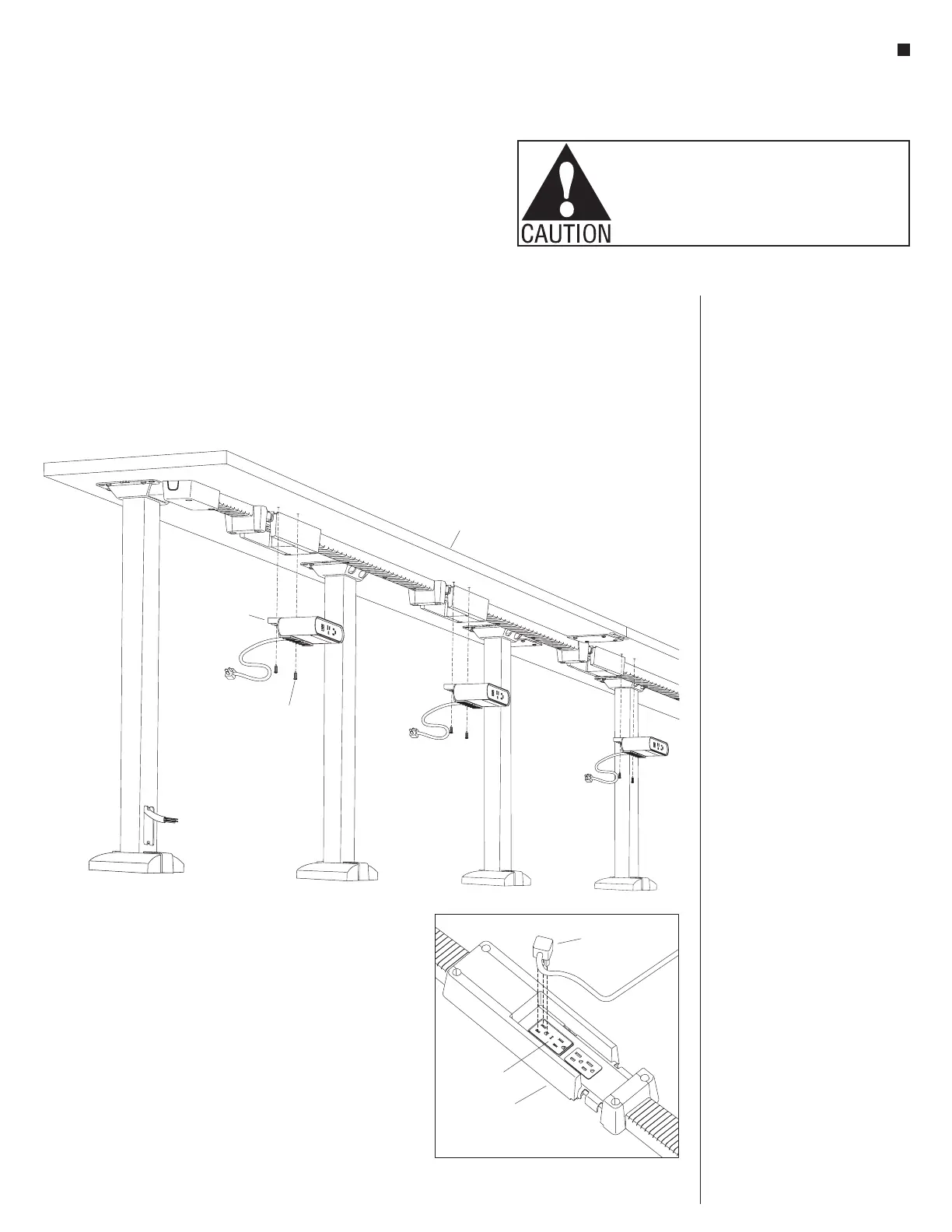

Tables with 4-Wire Power System - Power Modules
Assembly Instructions
#x /”10
3
4
screw
Dubbel Undersurface
power module
with 3-prong plug
Detail I
receptacle hub
shroud
duplex
receptacle
Figure
15
tabletop
Dubbel ndersurfaceU
power module
with 3-prong plug
Dubbel Undersurface Power
Module Installation
31. Install the Dubbel Undersurface
power module with 3-prong plug to
the underside of the tabletop with
two #10 x
3
/
4
” screws in pre-drilled
holes (Figure 15)
32. Once the Dubbel Undersurface
power module with 3-prong plug is
installed, route the power cord to
the nearest duplex receptacle under
the table and plug the 3-prong plug
end into it (Detail I).
