Seating - Ganger Kit
Assembly Instructions
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.

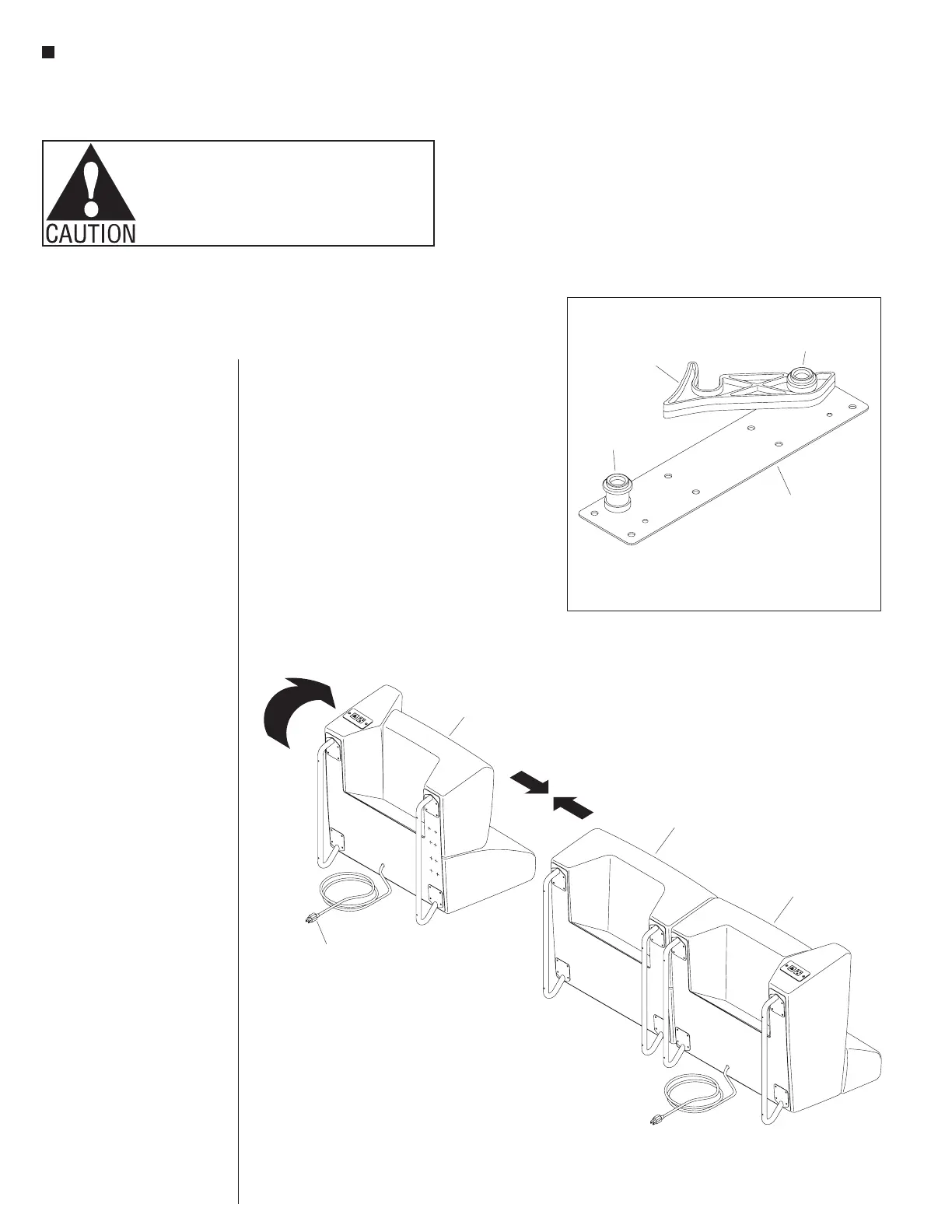

Detail A
hook
peg
peg
ganging plate
assembly
MyWay seating
unit #2
MyWay seating
unit #3
MyWay seating
unit #1
power
cord
MyWay Ganger Overview
The Ganger kit consists of a pair
of ganging plate assemblies. Each
ganging plate of the pair comes fully
assembled with two pegs, one hook
and eight #10 x 1” mounting screws
per assembly (Detail A).
Important: Depending on size,
only two to three seating units may
be ganged together at one time when
turned upright from their backs. If
more than three units need to be
ganged, assemble ganging plate
assemblies to them in groups of two
or three. Then unhook the ganging
plate assemblies, turn the units
upright and put into position before
final re-hooking.
Caution: MyWay seating units
containing any power options must
not be plugged into the power
supply receptacles until all units
are at their final upright installation
location and all ganging assemblies
are connected together properly.
Tools Required
• Drill
• #2 Phillips driver bit
•
1
/
8
" drill bit
• Tape measure
MyWay Ganging Assembly
Note: Two or more people are
needed to complete the steps in
this instruction. Care must be
taken to align seating units in
a uniform manner and to press
them tightly together for the
ganging process.
1. Reference the space-planning
layout to arrange seating units at
their approximate final location in
the room.
2. To gang side-to-side (in-line),
carefully tip two or three seating
units onto their backside on a soft
protective surface to position for
ganging (Figure 1).
3. Position MyWay seating units
together so that bottoms are
aligned and flush (Figure 1).
