MyWay
®
Seating - Ganger Kit
Assembly Instructions
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
13
center gangers
modular seats

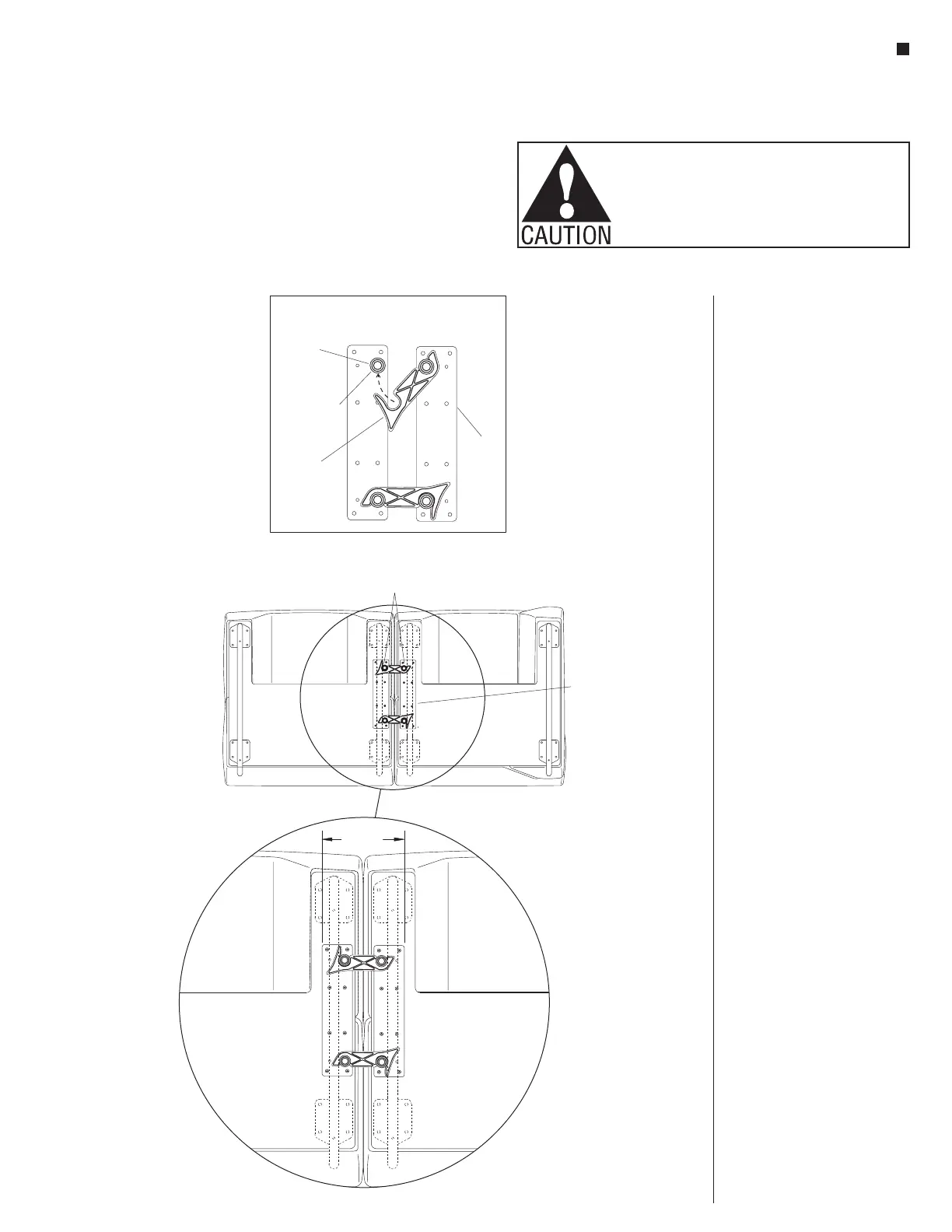

Figure 2 - Bottom View
Detail C - GangingSide-to-Side
FRONT OF UNIT
Detail B
orient pegs
and hooks as
belowillustrated
latch hook to
the opposing
rmlypeg
hook
peg
ganging
plate
assembly
pair
ganging plate
assembly pair
centered
4. Locate a pair of ganging plate
assemblies and orient them as
illustrated, on a flat, firm surface.
Latch the hooks to the opposing
pegs, snapping together firmly
(Detail B).
5. To install ganging plate
assemblies, one person must
first hold two MyWay seating
units tightly together while also
holding seat bottoms flush. Then,
another person must position
the joined pair of ganging plates
centered evenly between the units
(Figure 2 & Detail C).
