Hub
®
Seating - Ganger Kit
Assembly Instructions
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
7
Hub modular
seating unit #3
(on back)
Hub modular
seating unit #1
(on back)
Hub modular
seating unit #2
(on back)

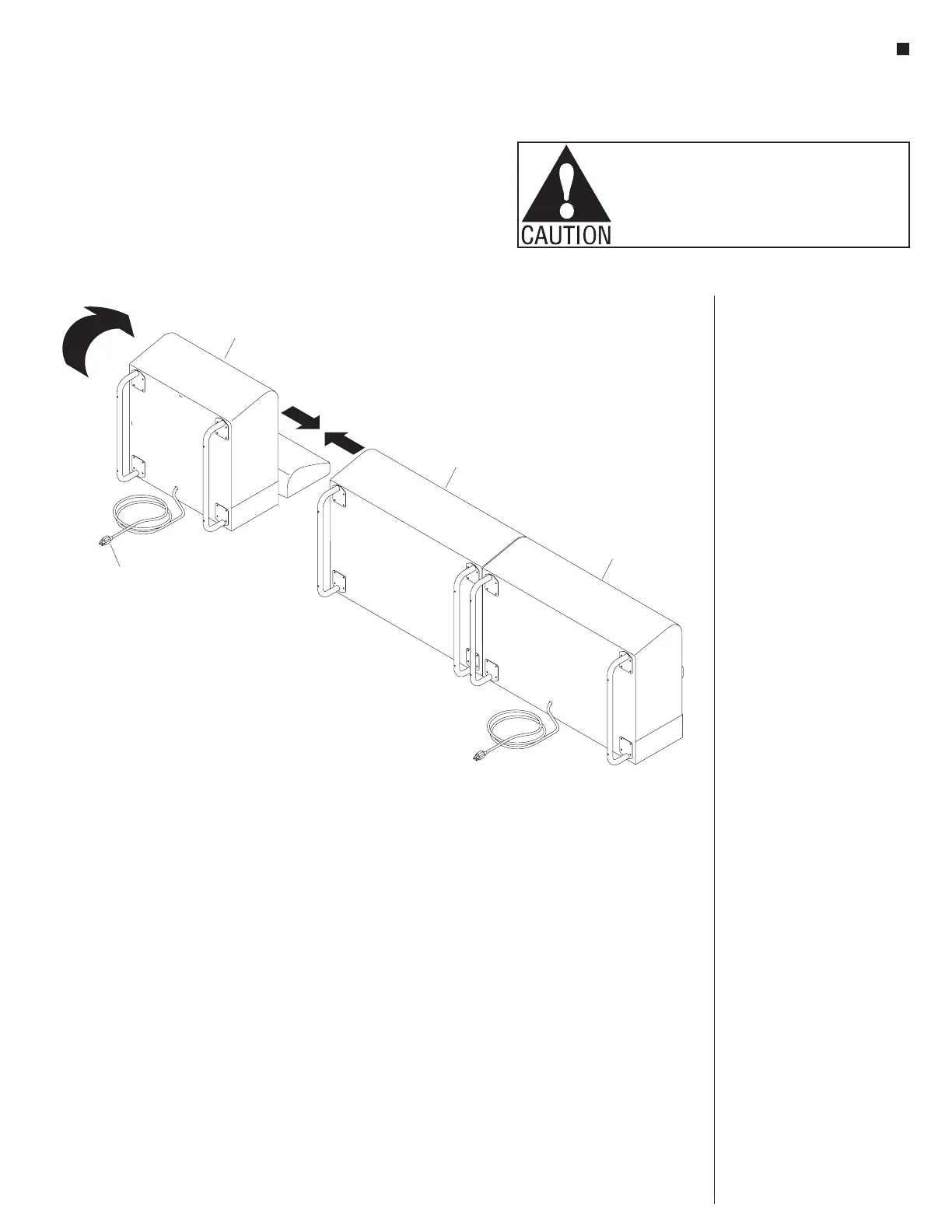

Figure 1
power
cord
Hub Ganging Assembly
Note: Two or more people are
needed to complete the steps in
this instruction. Care must be
taken to align seating units in
a uniform manner and to press
them tightly together for the
ganging process.
1. Reference the space-planning
layout to arrange seating units at
their approximate final location in
the room.
2. To gang side-to-side (in-line),
carefully tip two or three seating
units onto their backside on a soft
protective surface to position for
ganging (Figure 1).
3. Position Hub seating units
together so that bottoms are
aligned and flush (Figure 1).
To Next Page
