Maintenance Fuses
BATT1 40 A
ICU Junction Block (LONG TERM LOAD LATCH RELAY,
Fuse Name: HEV ECU1, MODULE1, OBC (On-Board
Charger), S/HEATER RR, DR LOCK, IBU (Integrated
Body Control Unit)1, BRAKE SWITCH, AIR BAG2)
DCT1 40 A TCM (Transmission Control Module)
DCT2 40 A TCM (Transmission Control Module)
BURGLAR ALARM 10 A
ICM (Integrated Circuit Module) Relay Box (B/Alarm
Horn Relay)
AMS 10 A Battery Sensor
RR HTD 40 A REAR HEATED Relay
IEB2 40 A
Integrated Electric Brake Module, Multipurpose Check
Connector
PTGM 30 A Power Tail Gate Module
POWER OUTLET1 40 A POWER OUTLET Relay
IG3 4 10 A
OBC (On-Board Charger) Unit, HPCU (Hybrid Power
Control Unit), ECM (Engine Control Module), TCM
(Transmission Control Module)
IG3 3 10 A Electric Water Pump (HEV)
IG3 5 10 A
BMS (Battery Management System) Control Module,
Inhibitor Switch, BATTERY C/FAN Relay, ICU Junction
Block (IPS Control Module)

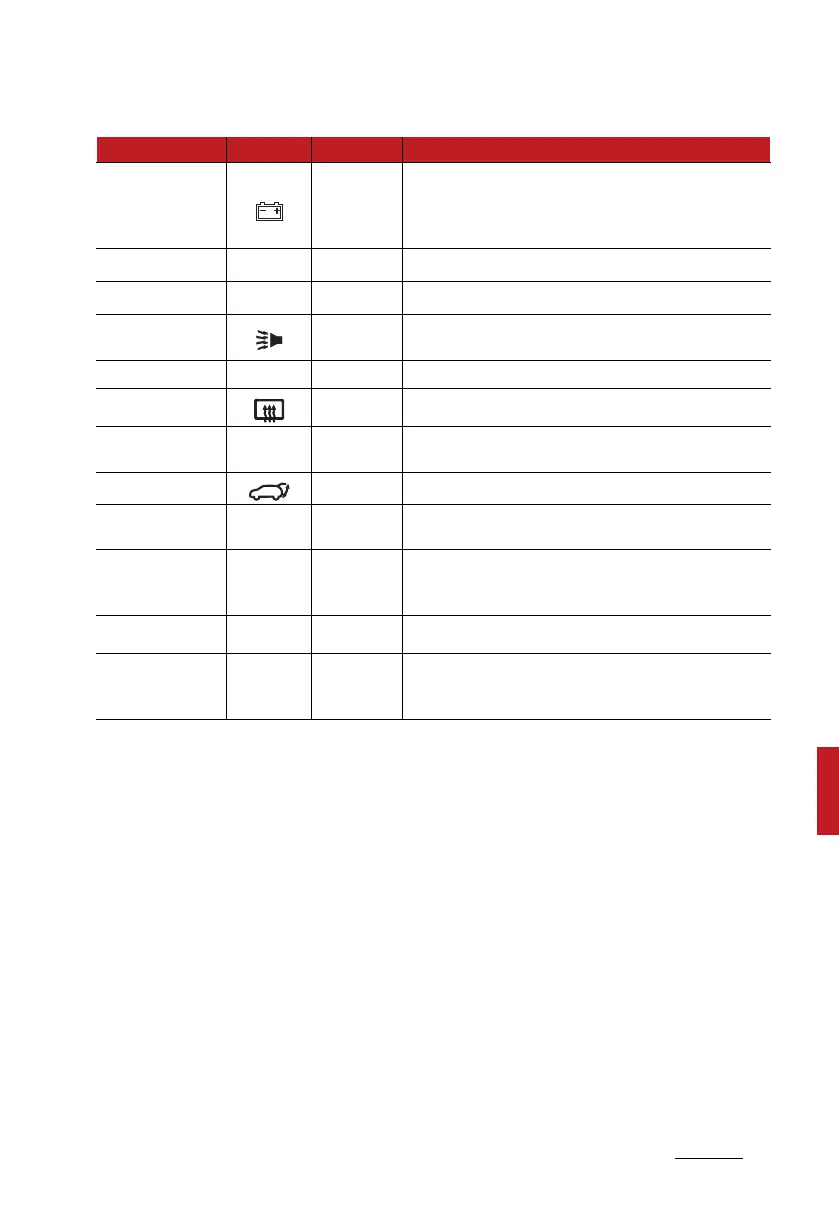

Fuse Name Symbol Fuse rating Circuit Protected
1
DCT
2
AMS
IEB
2
IG3
4
IG3
