Fuse installation should be as close as
possible to the battery, and no further than
18” (45cm) of the battery, and in-line with
the power cable, which is connected to
your LX Amplifier. Make sure the power wire
is routed so that it will not be damaged,
crimped, or shorted. If you ever need to
remove the amplifier from the vehicle after it
has been installed, the ground wire should
be the last wire disconnected from the
amplifier; just the opposite as when you
installed it.

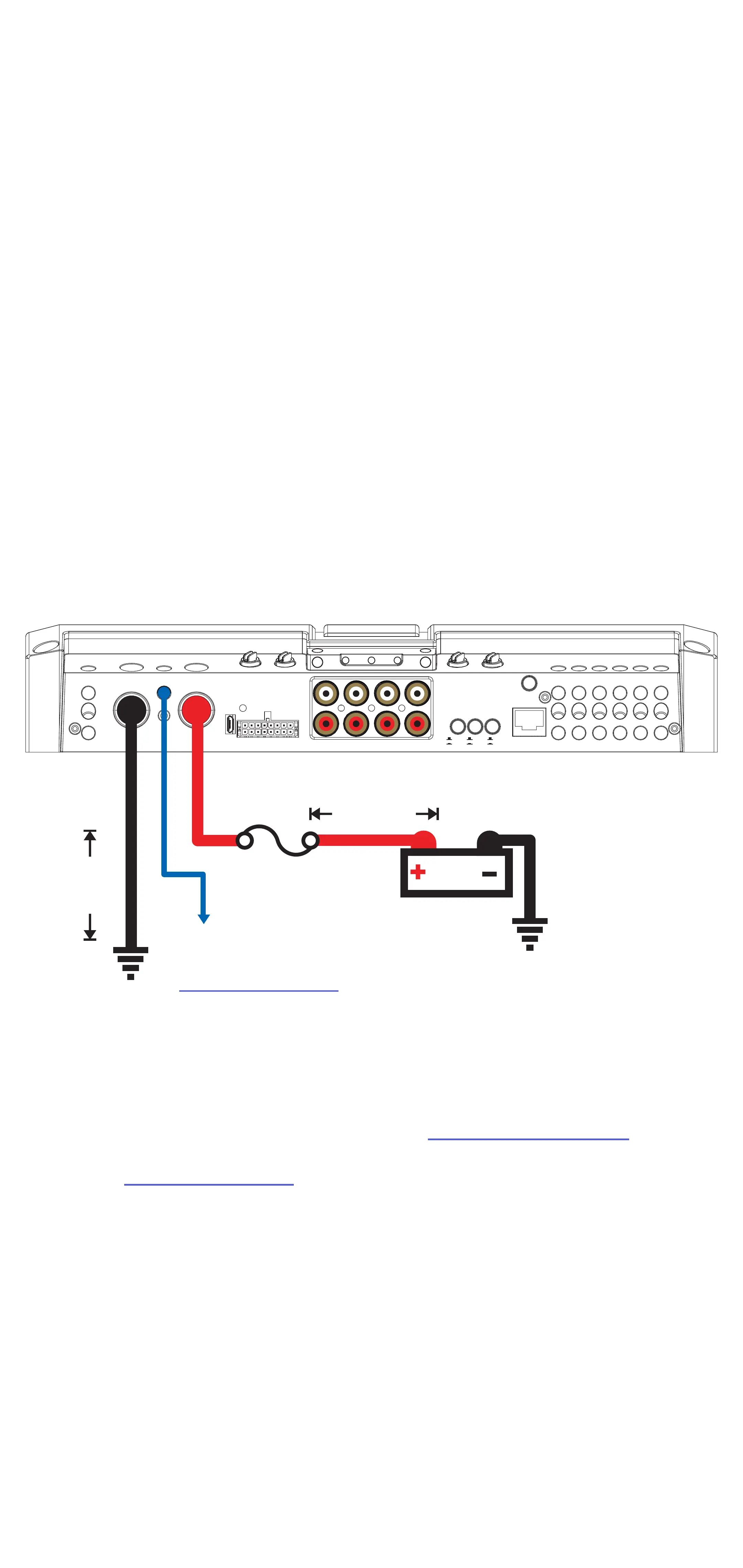

HI-LEVEL
INPUT
AMP2
INPUT
AMP3
INPUT
SUB
INPUT
AMP3
SUB
AMP2
AMP3
AMP1
AMP2
PWR/
PRT
AMP1 AMP2 AMP3 SUB
+
-
+
-
+
-
+
-
+
-
+
-
CONTROLLER/
REMOTE BASS
BRIDGED (L+ AND R-)
+
-
L
R
12V
battery
fuse
remote turn-on
(see page 64)
ground
≤18”
(45cm)
≤24”
(60cm)
Pro Tip: All that’s left are KS speakers,
and a few cables, and you’ll have an audio
upgrade that will dominate any factory
system! KICKER amplifiers make it easy to
upgrade to solid bass with your existing or
stock source unit. Ask your dealer about
KICKER upgrades.
