LXRC Installation
The LXRC is a multi-function remote bass
knob that further expands the DSP features
of the LX amplifier, with access to LED
lighting changes, real-time battery input
voltage monitoring, clip output indication,
and KICKER’s proprietary SHOCwave 2.0
(Sub-Harmonic Octave Creation) algorithm.

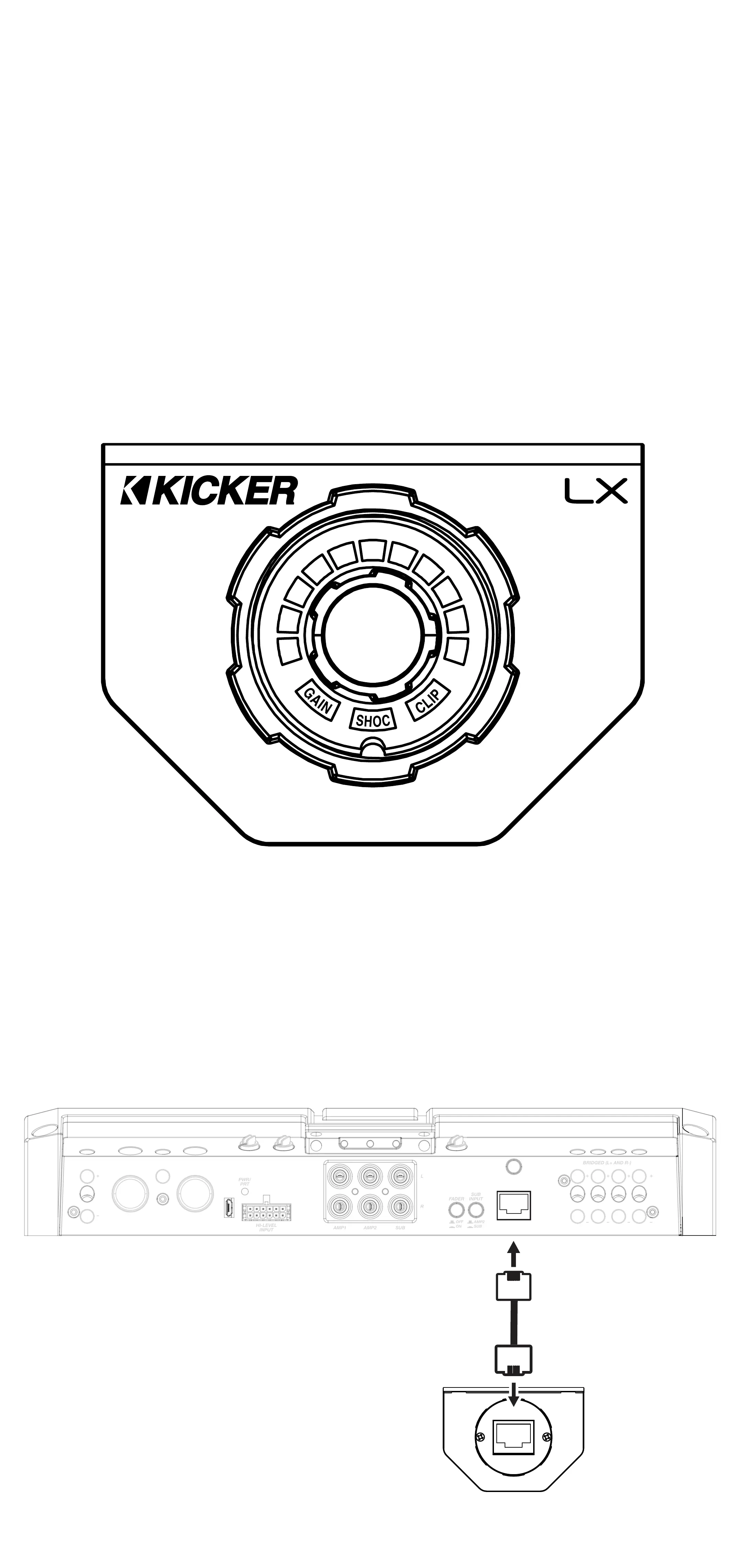

Disconnect the supplied RJ-45 cable used
to fine-tune with the LXCC, then connect
from the back of the LXRC to the Remote
Bass jack of the LX amplifier.
