Kicker LX Series - Input Wiring

37English
Input Wiring

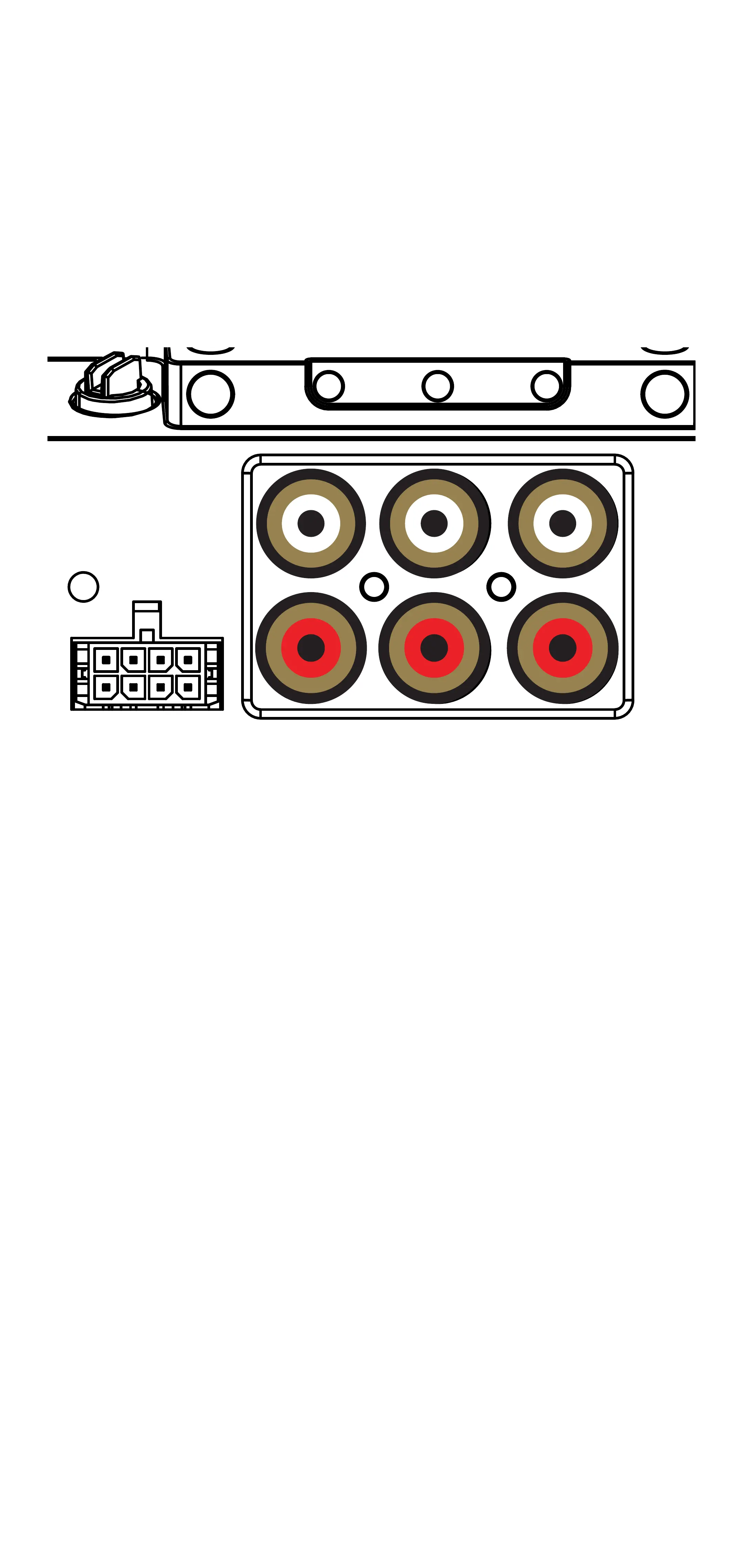

The LX-series are capable of receiving both
Low-level signals with the RCA inputs and
Hi-level signals with the Hi-Level Input wiring
harness on the front panel of the amplifier.
+
-
+
GND REM +12VGND REM +12V
FADERFADER
-
+
OFF
ON
OFF
ON
+
BRIDGED (L+ AND R-)
CONTROLLER
HI-LEVEL
INPUT
PWR/
PRT
R
L
AMP1 AMP2 OUTPUT
HI-LEVEL
INPUT
PWR/
PRT
R
L
AMP1 AMP2 OUTPUT
- -
The input channel corresponding to the
wiring harness colors are:
AMP1 Left: White, White/Black
AMP1 Right: Grey, Grey/Black
AMP2 Left: Green, Green/Black
AMP2 Right: Purple, Purple Black
