Chapter 1: Introduction
VM-1 User Guide 15

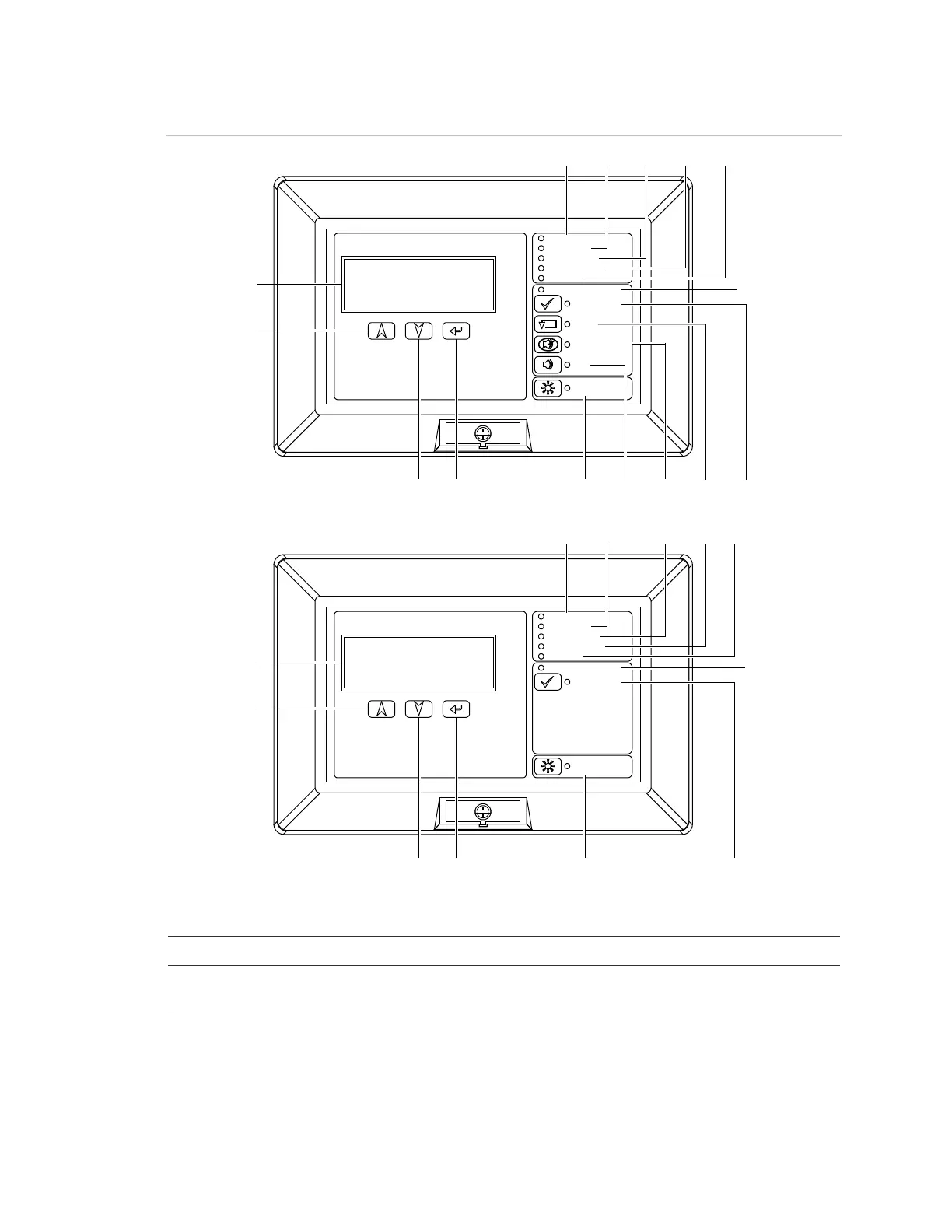

Figure 10: LCD model remote annunciator controls and indicators
Table 6: LCD model remote annunciator controls and indicators
Item
Control/Indicator Description
1
LCD screen Displays system status, event messages, and event message
details.
2
Up button Pressing the Up button scrolls up through the messages in the
event message queue and scrolls up through characters for
password entry.
Controls Enabled
Ack/Silence
Reset
Signal Silence
Drill
Lamp Test
Power
Fire Alarm
Supervisory
Ground Fault
Trouble
RLCD-C / K-RLCD-C
Controls Enabled
Ack/Silence
Lamp Test
Power
Fire Alarm
Supervisory
Ground Fault
Trouble
RLCD / K-RLCD
(1)
(1)
(2)
(2)
(3)
(3)
(4)
(4)
(5)
(5)
(6)
(7) (8) (9)
(9)
(10)
(10)
(11)
(11)
(12)
(12)
(13)
(13)
(14)
(14)
(15)
(15)
