Chapter 1: Introduction
VM-1 User Guide 17

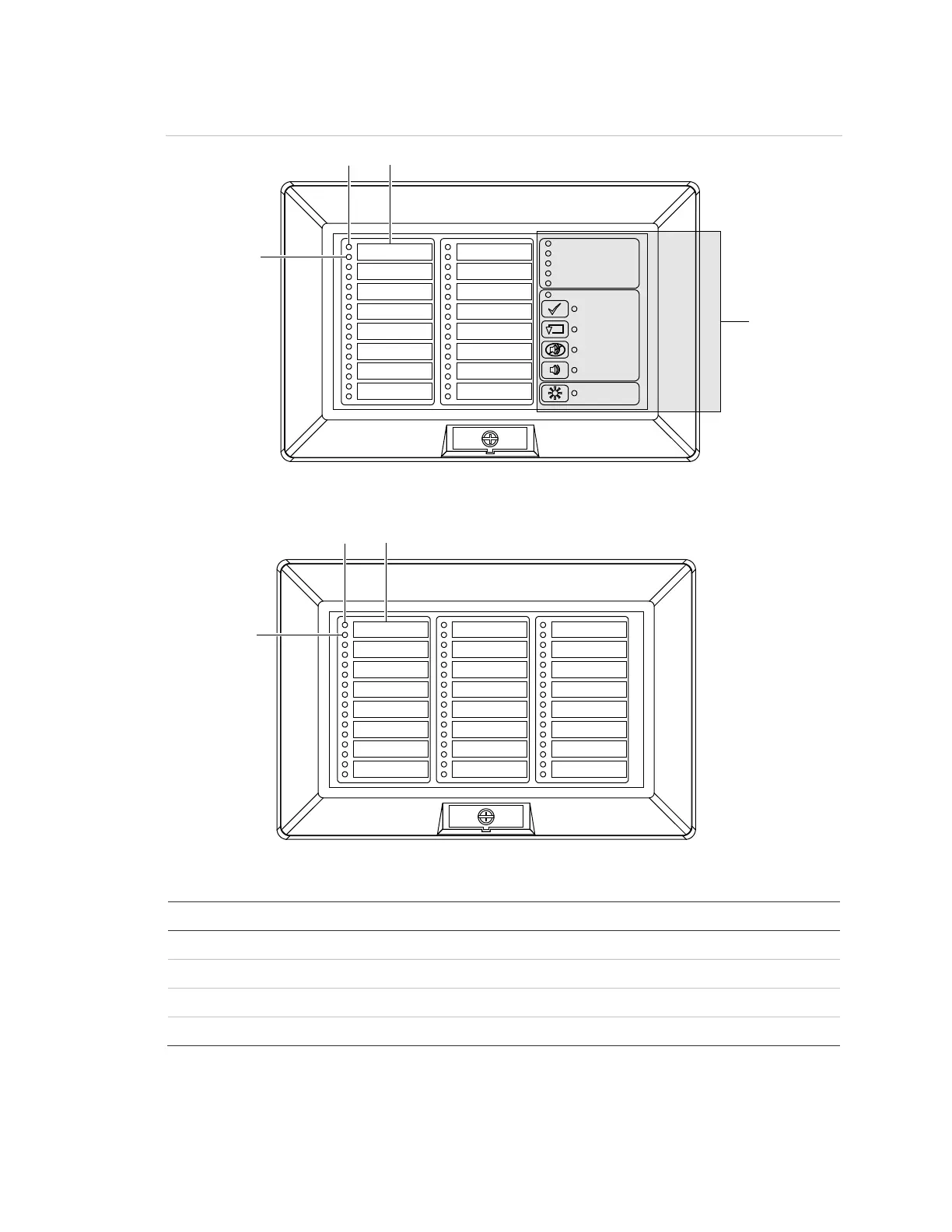

Figure 11: LED model remote annunciator and expander controls and indicators
Table 7: LED model remote annunciator and expander controls and indicators
Item
Control/Indicator Description
1
Zone description label User-defined zone or device description
2
Active LED Red LED indicates an active zone or device alarm state
3
Trouble LED Yellow LED indicates an active zone or device trouble state
4
Controls and indicators [1] See items 5 through 15 in Table 6 on page 15
[1] Controls and indicators are not on the RLED24 or K-RLED24 remote expander.
RLED-C / K-RLED-C
RLED24 / K-RLED24
Controls Enabled
Ack/Silence
Reset
Signal Silence
Drill
Lamp Test
Power
Fire Alarm
Supervisory
Ground Fault
Trouble
(1)
(1)
(2)
(2)
(3)
(3)
(4)
