Kikusui PLZ-U Series Operation Manual

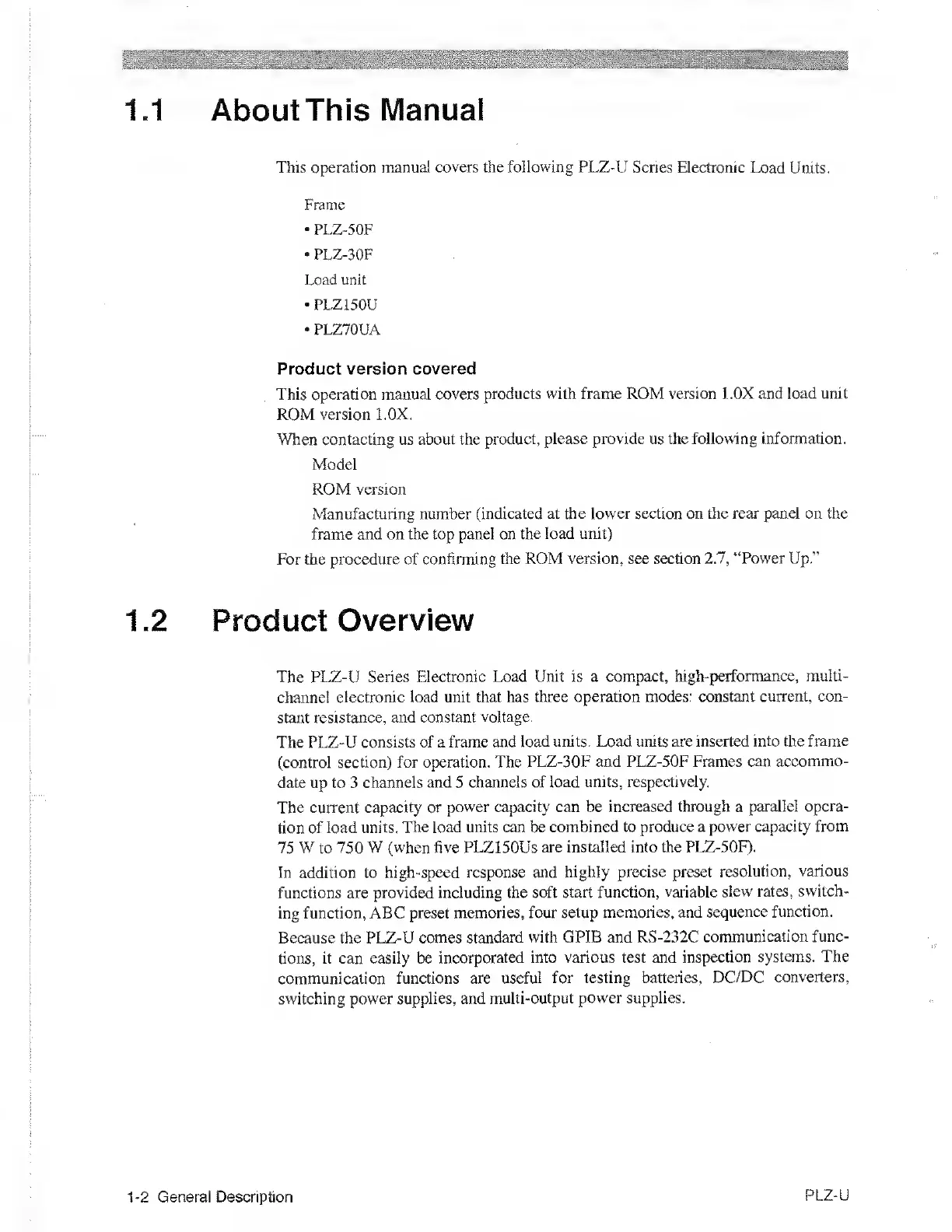

1.1 About This Manual
This operation
manual covers the following PLZ-U
Series Eiaitronic Load
Units.
Frame
•
PLZ-50F
•
PLZ-30F
Load unit
•
PLZ150U
•
PLZ70UA
Product version covered
This operation manual covers
products with frame ROM version l.OX and
load unit
ROM version l.OX.
When
contacting us about the
product, please provide us the following information.
Model
ROM version
Manufacturing number (indicated
at the lower section on the rear panel on the
frame
and on the top panel on
the load unit)
For the procedure of
confirming the ROM version, see section
2.7,
“Power Up.”
1 .2 Product
Overview
The PLZ-U Series Electronic
Load Unit is a compact,
high-performance, multi-
channel
electronic load unit that has
three operation modes: constant
current, con-
stant
resistance, and constant
voltage.
The PLZ-U
consists of a frame and
load units. Load units are inserted
into
the
frame
(control
section) for operation. The
PLZ-30F and PLZ-50F Frames
can accommo-
date up to 3
channels and 5 channels of
load units, respectively.
The current capacity
or power capacity can be
increased through
a
parallel
opera-
tion
of load units.
The load units can be
combined
to
produce a power
capacity from
75 W
to
750 W (when five PLZ150Us
are installed into the PLZ-50F).
In addition to
high-speed response and
highly precise preset
resolution,
various
functions are
provided including the soft
start function,
variable slew rates, switch-
ing function, ABC preset
memories, four setup
memories, and
sequence function.
Because the PLZ-U comes
standard with GPIB and RS-232C
communication func-
tions,
it
can easily be
incorporated into various test
and inspection systems.
The
communication
functions are
useful for testing batteries,
DC/DC converters,
switching power
supplies, and
multi-output power supplies.
1-2
General Description
PLZ-U
