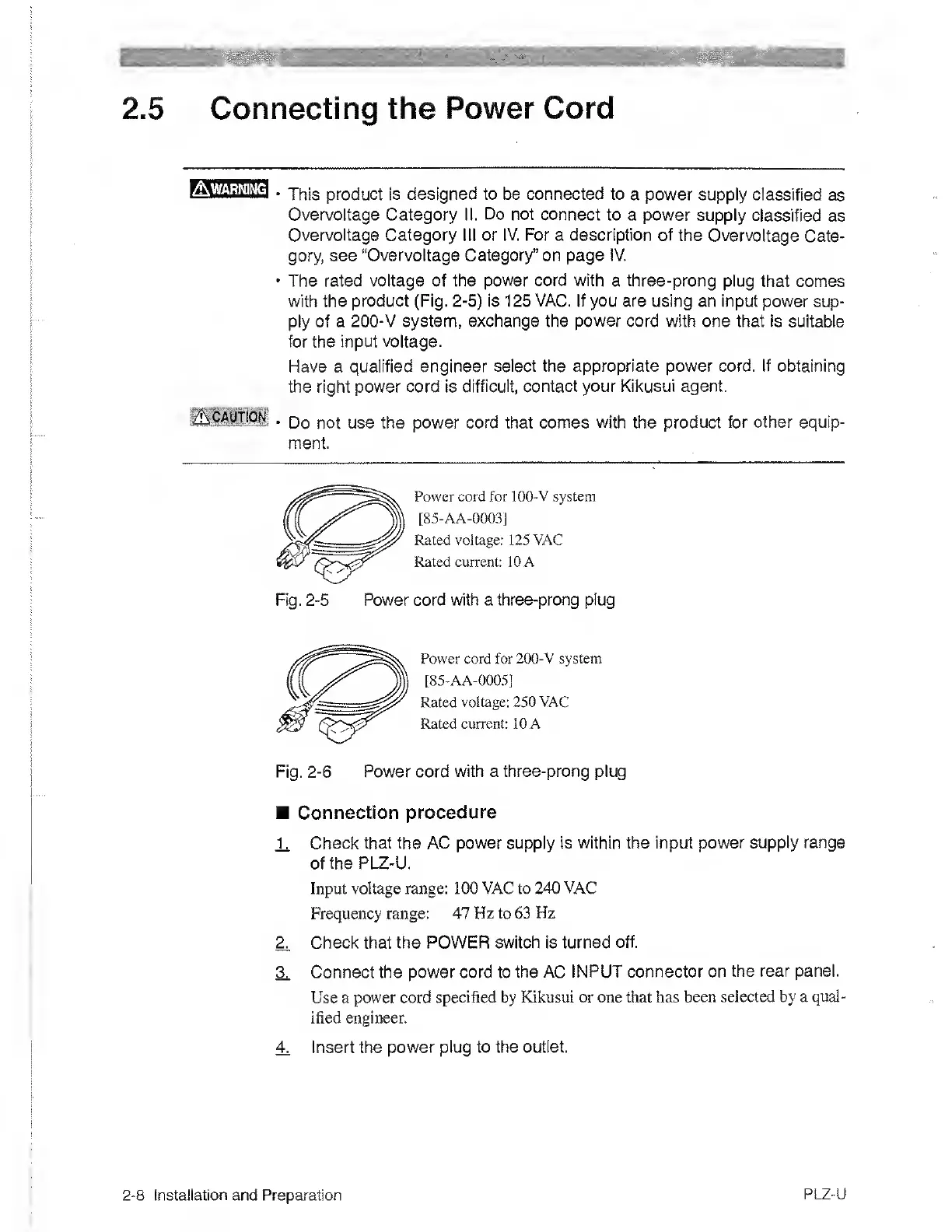

Kikusui PLZ-U Series Operation Manual

2.5 Connecting the
Power Cord
A
WARNING
This
product is designed to be connected to
a power supply classified
as
Overvoltage
Category II. Do not connect
to a power
supply classified
as
Overvoltage Category III or
IV. For
a description
of the Overvoltage
Cate-
gory,
see
‘Overvoltage Category"
on page
iV.
The rated voltage of the power
cord with
a three-prong plug
that comes
with the product (Fig.
2-5)
is 125 VAC.
If
you are using an input power
sup-
ply of a 200-V system, exchange the
power
cord with one that is suitable
for the input voltage.
Have a qualified engineer
select the appropriate power cord. If obtaining
the right power cord is
difficult, contact your Kikusui agent.
Do
not use the power cord that comes
with
the
product for other equip-
ment.
Power
cord
for
100-V system
[85-AA-0003]
Rated voltage; 125 VAC
Rated current: 10 A
cord with a three-prong plug
Power cord for
200-V system
[85-AA-0005]
Rated
voltage: 250 VAC
Rated current: 10 A
Fig.
2-6
Power cord
with a three-prong plug
Connection
procedure
T Check that the AC power supply is within
the input power supply range
of the
PLZ-U.
Input voltage range: 100 VAC to 240
VAC
Frequency range: 47
Hz to 63 Hz
Z Check that the POWER switch is
turned off.
3^
Connect the power cord to
the AC INPUT
connector on the rear panel.
Use a power cord
specified
by
Kikusui or one that has
been selected by a qual-
ified engineer.
Insert the
power plug to the outlet.
2-8
Installation
and Preparation
PLZ-U
