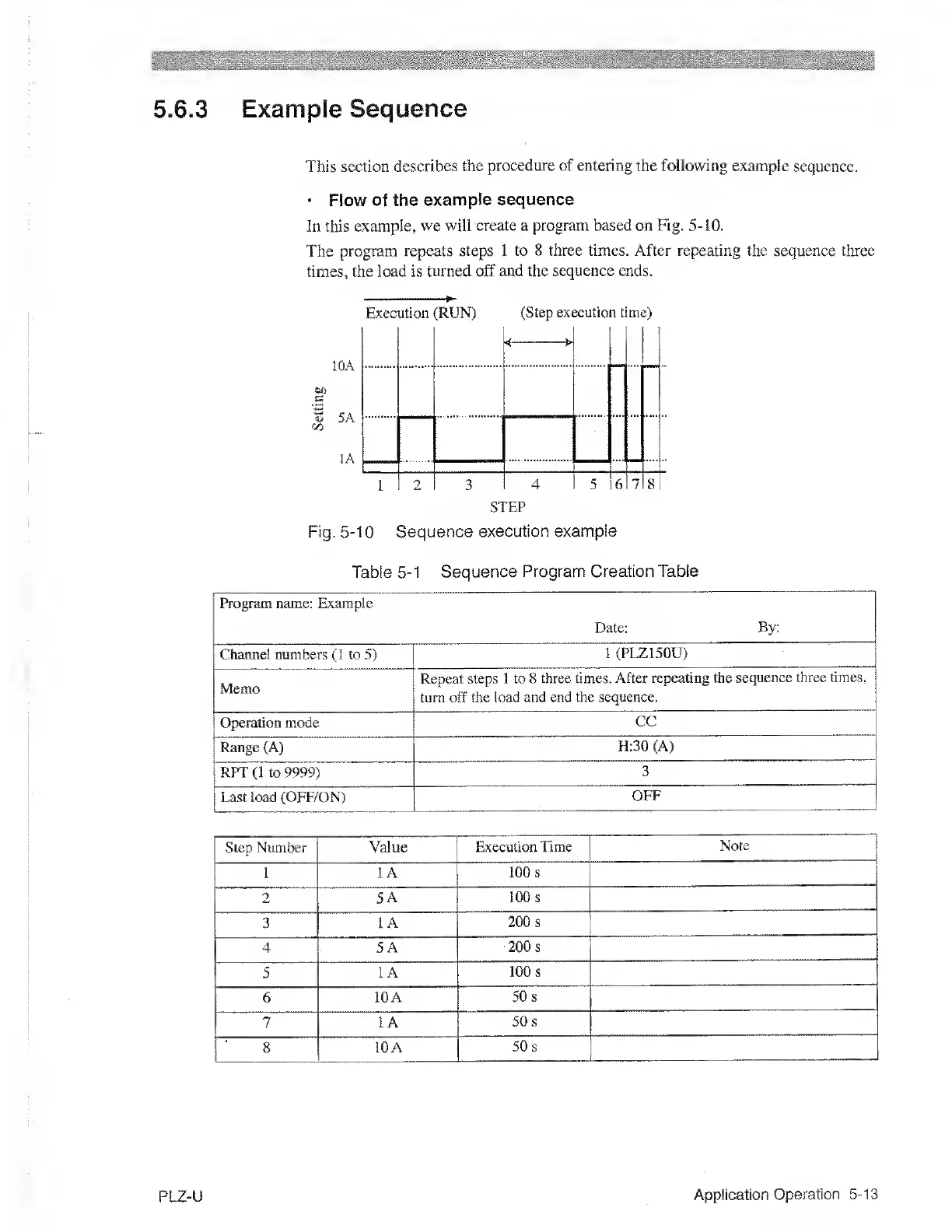

5.6.3 Example
Sequence
This section
describes the
procedure of entering
the following example
sequence.
Flow of the
example sequence
In this
example, we
will
create
a
program based on Fig.
5-10.
The
program repeats steps 1
to 8 three times. After
repeating the sequence three
times, the load is
turned off and the
sequence ends.
Execution (RUN)
(Step execution time)
Fig.
5-1
0
Sequence
execution
example
Table
5-1
Sequence Program
Creation Table
Program name: Example
Date:
By:
Channel numbers
(1
to
5)
1
(PLZ150U)
Memo
Repeat
steps 1 to 8 three times.
After repeating the
sequence three times,
turn off the
load and end the sequence.
Operation mode
CC
Range (A)
H:30 (A)
RPT
(1
to 9999)
3
Last load (OFF/ON)
OFF
Step Number Value
Execution
Time
Note
1 lA
100
s
2 5A
100 s
3 1 A
200 s
4 5A
200
s
5 1 A
100 s
6 lOA
50 s
7 1 A
50 s
8 lOA
50 s
PLZ-U
Application
Operation
5-13
