Kikusui PLZ-U Series Operation Manual

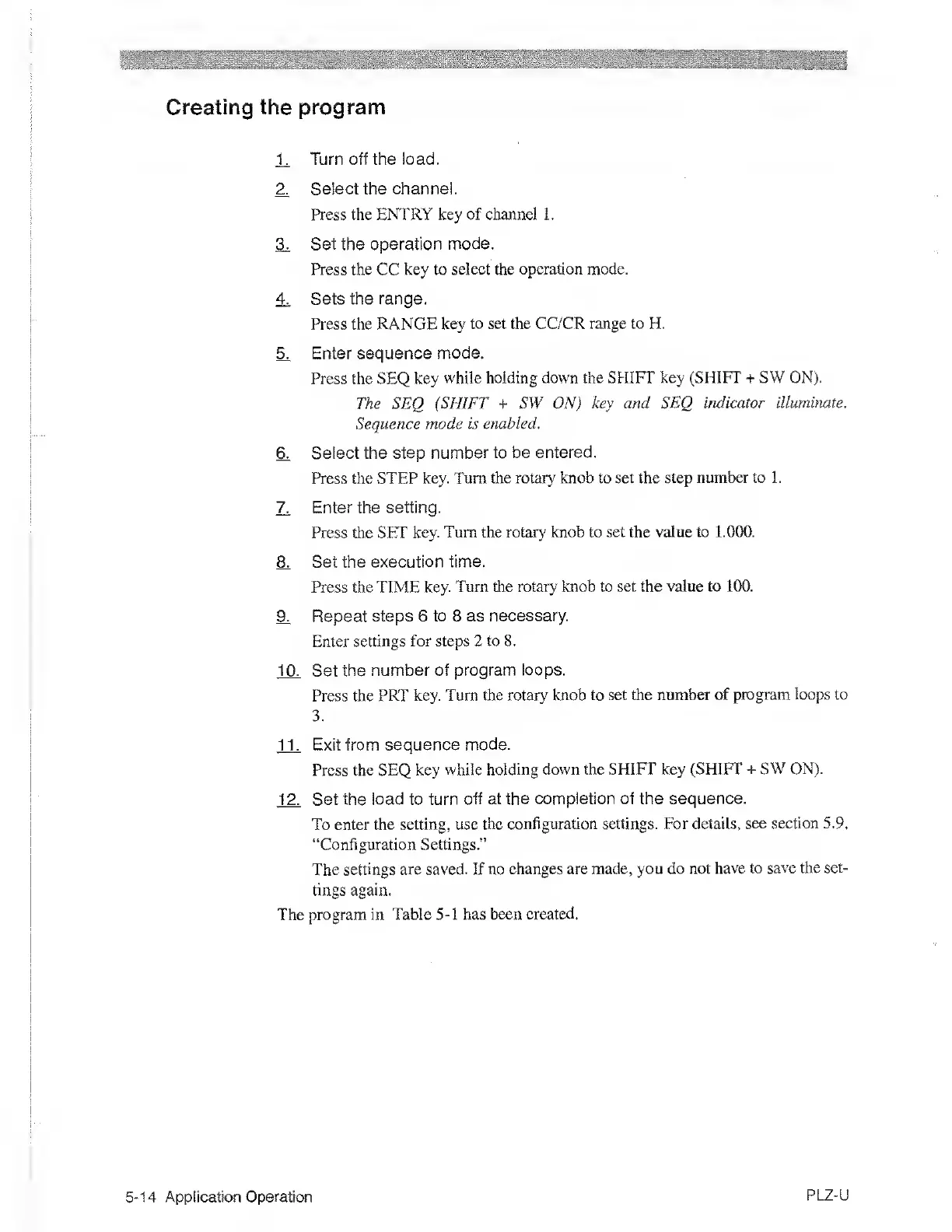

Creating the program
Turn off the load.
Z Select the channel.
Press the ENTRY
key
of
channel
1.
2.
Set
the
operation mode.
Press the
CC
key to select the operation
mode.
4,
Sets the range.
Press the RANGE key
to set the CC/CR range
to
H.
^
Enter sequence
mode.
Press the SEQ key
while holding down the SHIFT key
(SHIFT + SW ON).
The SEQ
{SHIFT + SW ON)
key and SEQ indicator illuminate.
Sequence
mode is enabled.
^
Select the step
number to be entered.
Press the STEP key.
Turn the rotary knob to set the step
number to 1.
7^
Enter the setting.
Press the SET key.
Turn the rotary knob to
.set
the
value to 1.0(K).
8^
Set the
execution time.
Press the TIME key.
Turn the rotary knob to
set
the
value to 100.
Repeat
steps 6 to 8 as
necessary.
Enter
settings for steps 2 to 8.
10.
Set
the number of
program loops.
Press the
PRT key. Turn the rotary knob
to set the number of
program loops to
3.
11. Exit from sequence
mode.
Press
the SEQ key while
holding down the SHIFT key (SHIFT
4-
SW ON).
12. Set the load to turn
off at the completion of the
sequence.
To
enter the setting, use
the configuration settings. For details, see
section 5.9,
“Configuration
Settings.”
The settings are saved. If no
changes are made,
you
do
not
have to save the set-
tings
again.
The program in Table
5-1
has been created.
5-14
Application
Operation
PLZ-U
