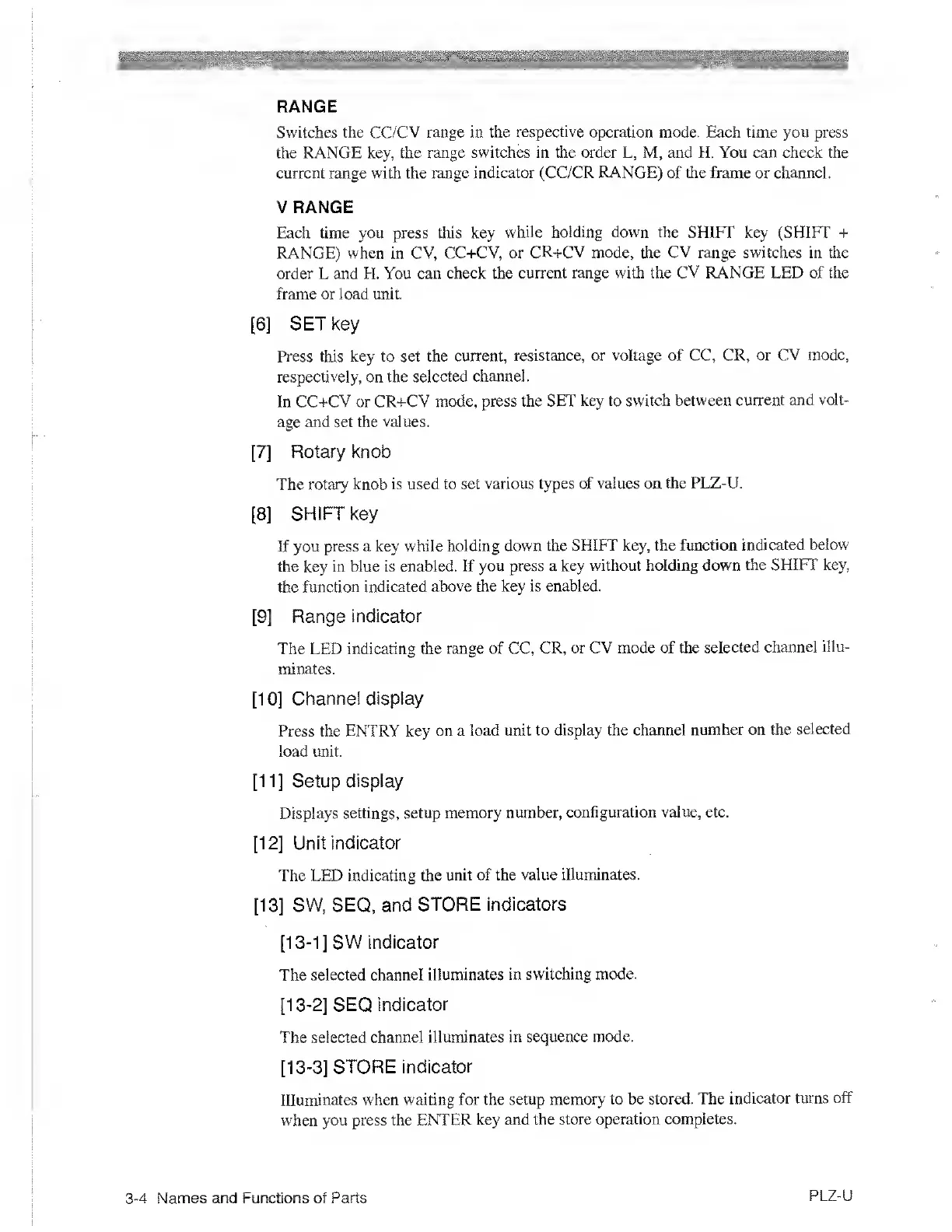

RANGE
Switches the CC/CV range in the
respective
operation mode. Each time you press
the RANGE key, the
range switches in the order L, M, and H. You can check the
current range with the range
indicator (CC/CR RANGE)
of
the frame
or
channel.
V RANGE
Each time you press this key
while
holding
down
the SHIFT key (SHIFT +
RANGE)
when in CV, CC+CV, or
CR-fCV mode, the
CV
range
switches
in the
order
L and FI. You
can check the
current range with the
CV
RANGE LED of the
frame or load unit
[6]
SET key
Press
this
key to set the current,
resistance, or voltage of CC,
CR, or CV
mode,
respectively, on the
selected channel.
In CC+CV or CR+CV
mode, press the SET
key to switch between
current and volt-
age and set the values.
[7]
Rotary knob
The
rotary knob is used to set
various types of
values
on
the PLZ-U.
[8]
SHIFT key
If
you press a key while
holding down the
SHIFT key, the function
indicated below
the key in blue is enabled.
If you press a
key without holding down
the SHIFT key,
the
function indicated
above the key is enabled.
[9]
Range
indicator
The LED indicating the
range of CC,
CR, or CV mode of the
selected
channel illu-
minates.
[10]
Channel display
Press the ENTRY key
on a load unit
to display the channel
number on the
selected
load unit.
[11]
Setup
display
Displays
settings, setup
memory number,
configuration value, etc.
[12]
Unit indicator
The LED indicating the
unit of the
value illuminates.
[13]
SW, SEQ, and
STORE
indicators
[13-1]
S\A/ indicator
The selected
channel
illuminates in switching mode.
[13-2]
SEQ indicator
The selected
channel illuminates
in sequence mode.
[13-3]
STORE
indicator
Illuminates when waiting
for the setup memory
to be stored. The
indicator turns
off
when you press the ENTER
key and the store
operation completes.
