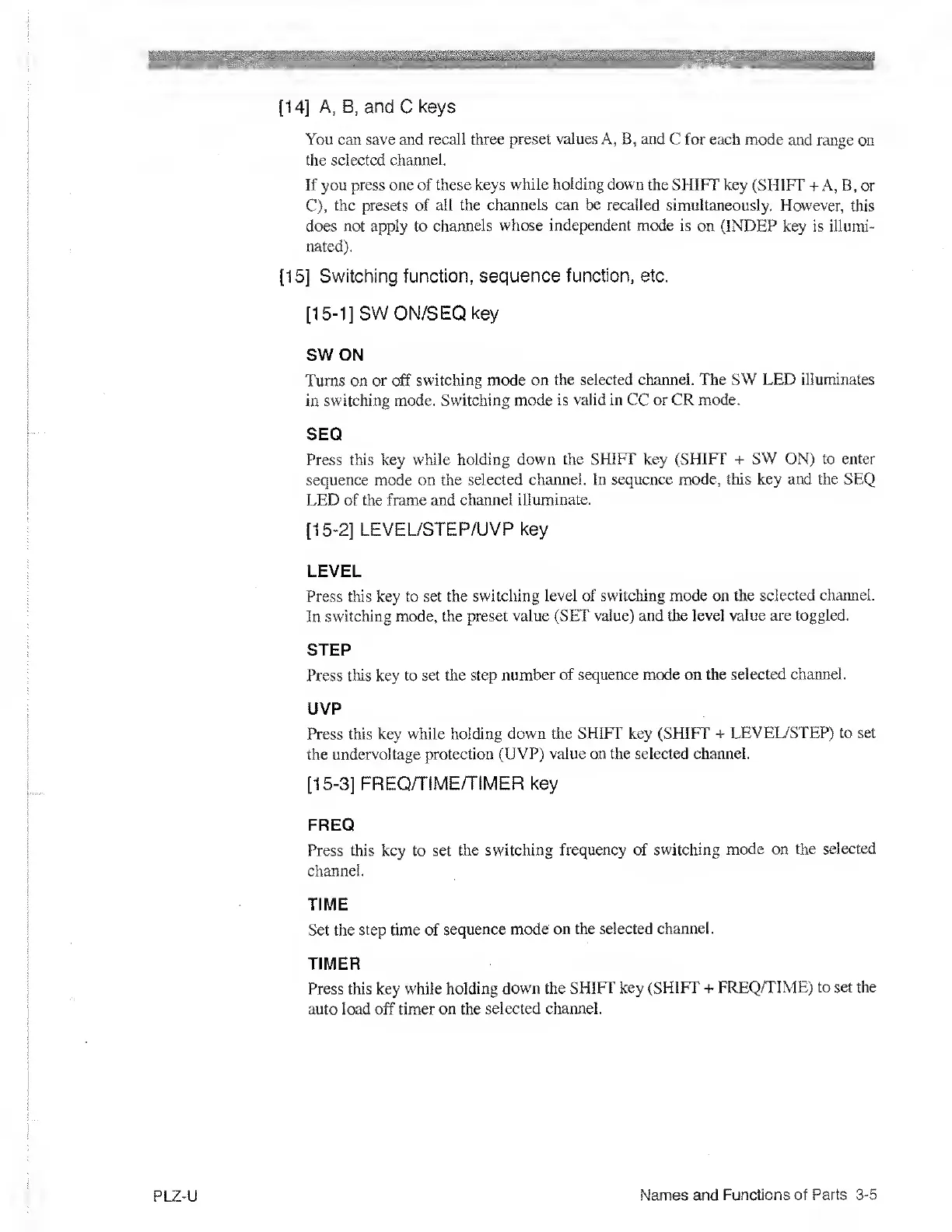

Kikusui PLZ-U Series Operation Manual

[14]
A, B, and
C
keys
You can save and recall three
preset values A, B, and
C for each mode
and range on
the selected
channel.
If
you press one of these keys
while holding down
the SHIFT key
(SHIFT + A, B, or
C), the presets
of all the
channels can be
recalled simultaneously.
However, this
does not apply to
channels
whose independent
mode is
on (INDEP key is
illumi-
nated).
[15]
Switching function, sequence
function,
etc.
[15-1]
SWON/SEQ key
SWON
Turns on
or
off
switching mode on
the selected channel. The
SW
LED
illuminates
in
switching mode. Switching mode
is valid in CC or CR mode.
SEQ
Press this key while
holding down the SHIFT key
(SHIFT + SW ON) to enter
sequence mode on
the selected channel. In
sequence mode, this key and the SEQ
LED of the frame
and channel
illuminate.
[15-2]
LEVEL/STEP/UVP key
LEVEL
Press this key
to set the switching
level of switching mode on the
selected channel.
In
switching mode, the preset
value (SET value) and the
level value are toggled.
STEP
Press
this
key
to set the step
number of sequence mode on the
selected channel.
UVP
Press this key while holding
down the SHIFT key (SHIFT
+ LEVEL/STEP) to set
the
undervoltage protection
(UVP) value on the selected channel.
[15-3]
FREQ/TIMEn-IMER key
FREQ
Press this key to set the
switching frequency of
switching mode on the
selected
channel.
TIME
Set the step time of
sequence mode
on the selected
channel.
TIMER
Press this key while
holding down the SHIFT
key (SHIFT +
FREQ/TIME) to set the
auto load off timer on the
selected channel.
PLZ-U
Names and
Functions of Parts
3-5
