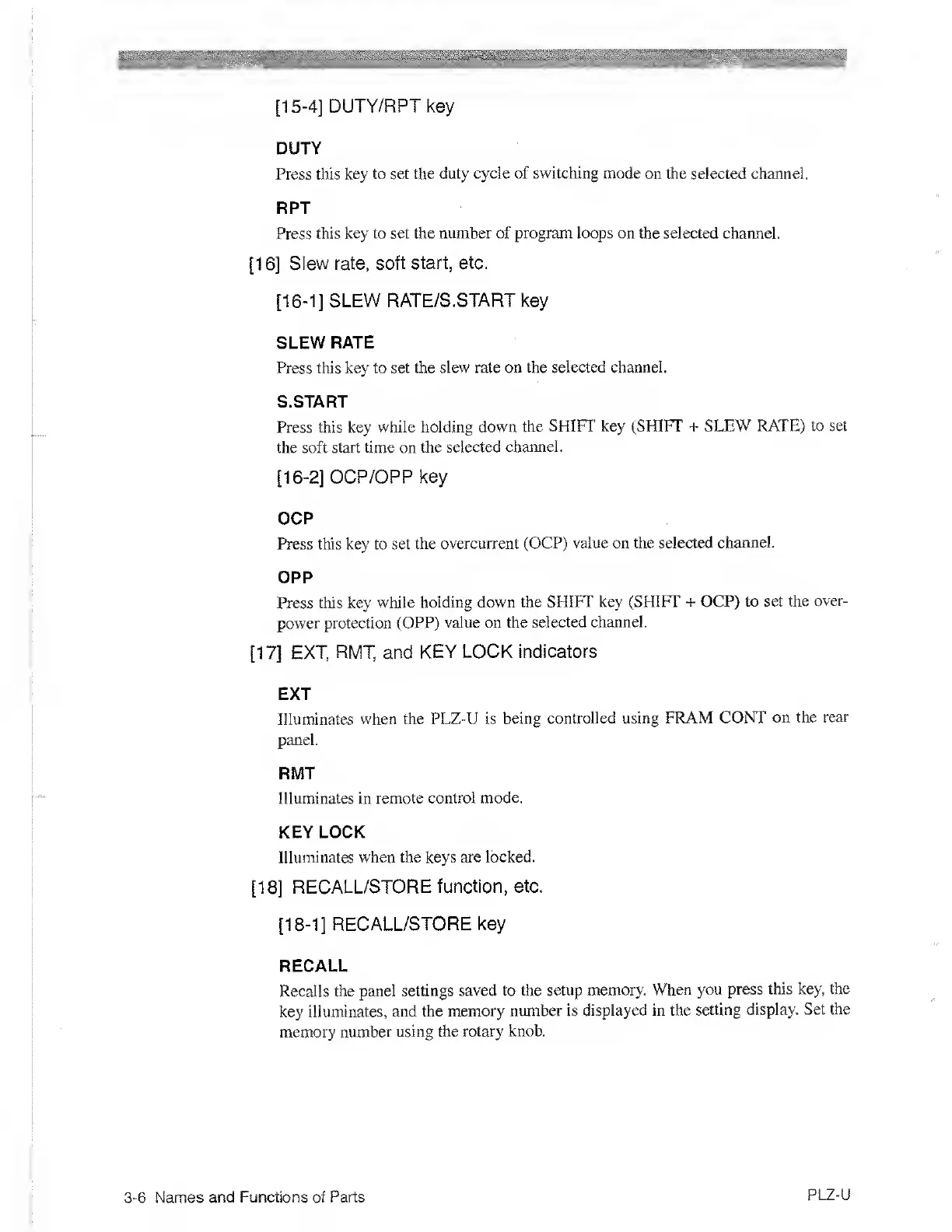

[15-4]
DUTY/RPT key
DUTY
Press this
key to set the duty
cycle of switching mode
on the selected channel.
RPT
Press
this key to set
the number
of
program loops on
the selected channel.
[16]
Slew rate, soft
start, etc.
[16-1]
SLEW
RATE/S.START key
SLEW
RATE
Press
this key to set the
slew rate on the
selected channel.
S.START
Press this key
while holding down
the SHIFT key (SHIFT +
SLEW RATE) to set
the soft start time on
the selected
channel.
[16-2]
OCP/OPPkey
OCP
Press this key to set
the overcurrent
(OCP) value on the selected
channel.
OPP
Press this key
while holding down the
SHIFT key (SHIFT
4-
OCP)
to set the
over-
power protection (OPP)
value on the
selected channel.
[17]
EXT, RMT, and
KEY LOCK
indicators
EXT
Illuminates
when the PLZ-U is
being controlled
using FRAM CONT
on the
rear
panel.
RMT
Illuminates in
remote control
mode.
KEY LOCK
Illuminates
when the keys are
locked.
[18]
RECALL/STORE
function, etc.
[18-1]
RECALL/STORE key
RECALL
Recalls the panel settings
saved to the
setup memory.
When you press
this key, the
key illuminates,
and the
memory number is
displayed in the
setting display.
Set the
memory
number using the
rotary knob.
3-6
Names
and Functions of Parts
