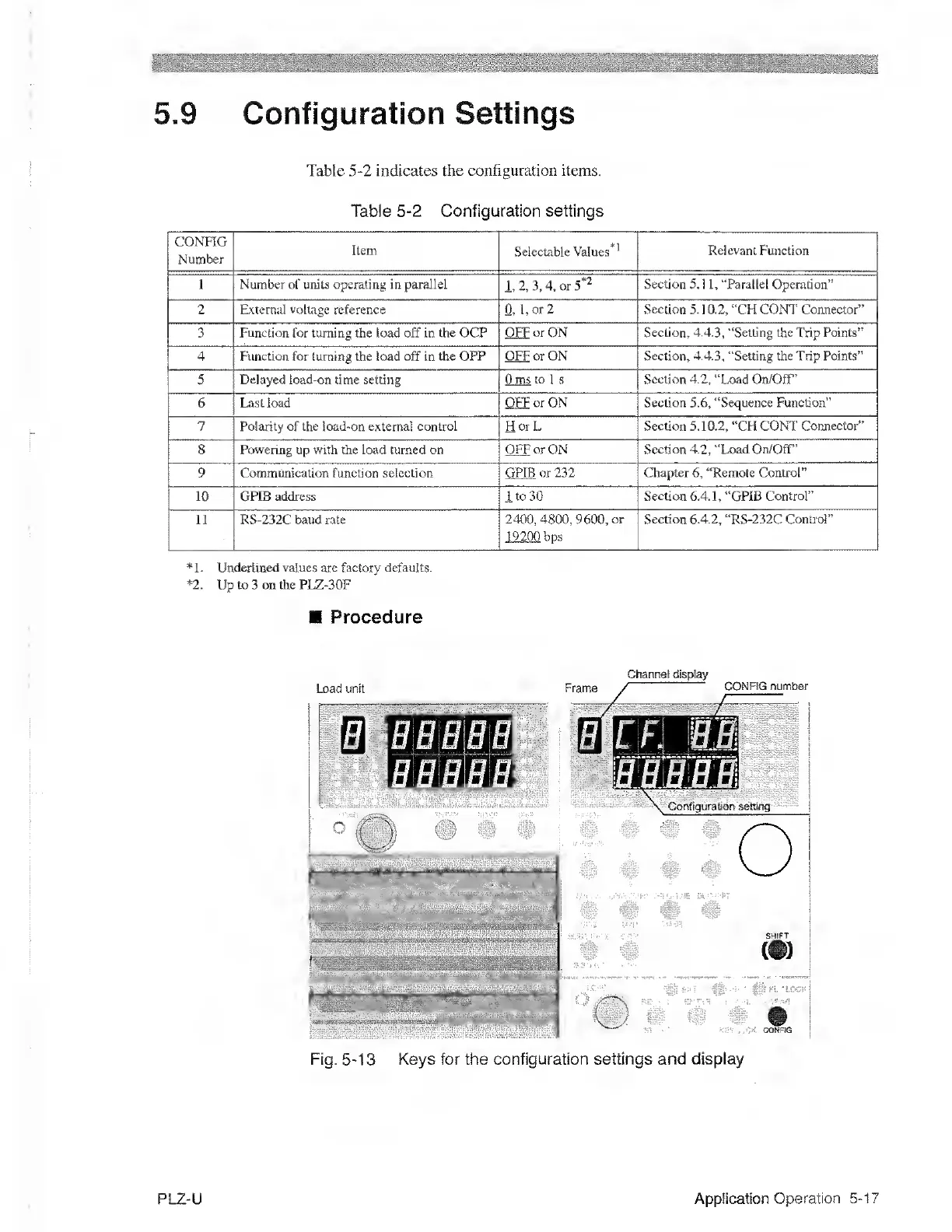

Kikusui PLZ-U Series Operation Manual

Table
5-2
indicates
the configuration items.
Table
5-2
Configuration settings
CONFIG
Number
Item
vSelectable Values*'
Relevant
Function
1 Number of units operating in parallel
1,
2,3,4,
or
5*2
Section
5. 1
1 ,
"Parallel Operation”
2 External
voltage
reference
Q,
Lor
2
Section 5.
10.2, “CH CONT Connector”
3
Function
for turning the load olT in the OCP
OFF or
ON
Section, 4.4.3, "Setling the
Trip
Points”
4
Function for
turning the load off in
the OPP OFF or ON Section, 4.4.3. “Setting the Trip
Points”
5
Delayed load-on time setting 0 ms
to
1 s
Section
4.2, “Load On/Off”
6
Last load OFF or ON Section
5.6,
“Sequence Function”
7 Polarity of the load-on external control Her L Section 5.
10.2,
“CH CONT
Connector”
8
Powering
up with the load turned on
OFF or ON Section
4.2,
“Ixjad On/Off”
9
Communication
function
selection
GPTR or
?,37.
Chapter
6,
“Remote Control”
10 GPIB address
ito30
Section
6.4.1, “GPIB
Control”
11 RS-232C baud rate 2400, 4800,9600,
or
19200
bps
Section
6.4.2, “RS-232C
Conti'ol”
*
1
.
Underlined values are factory defaults.
*2.
Upto3 onthePLZ-30F
Procedure
Load unit
Frame
Channel display
CONFIG number
Fig.
5-13
Keys for the configuration settings and
display
PL2-U
Application
Operation
5-17
