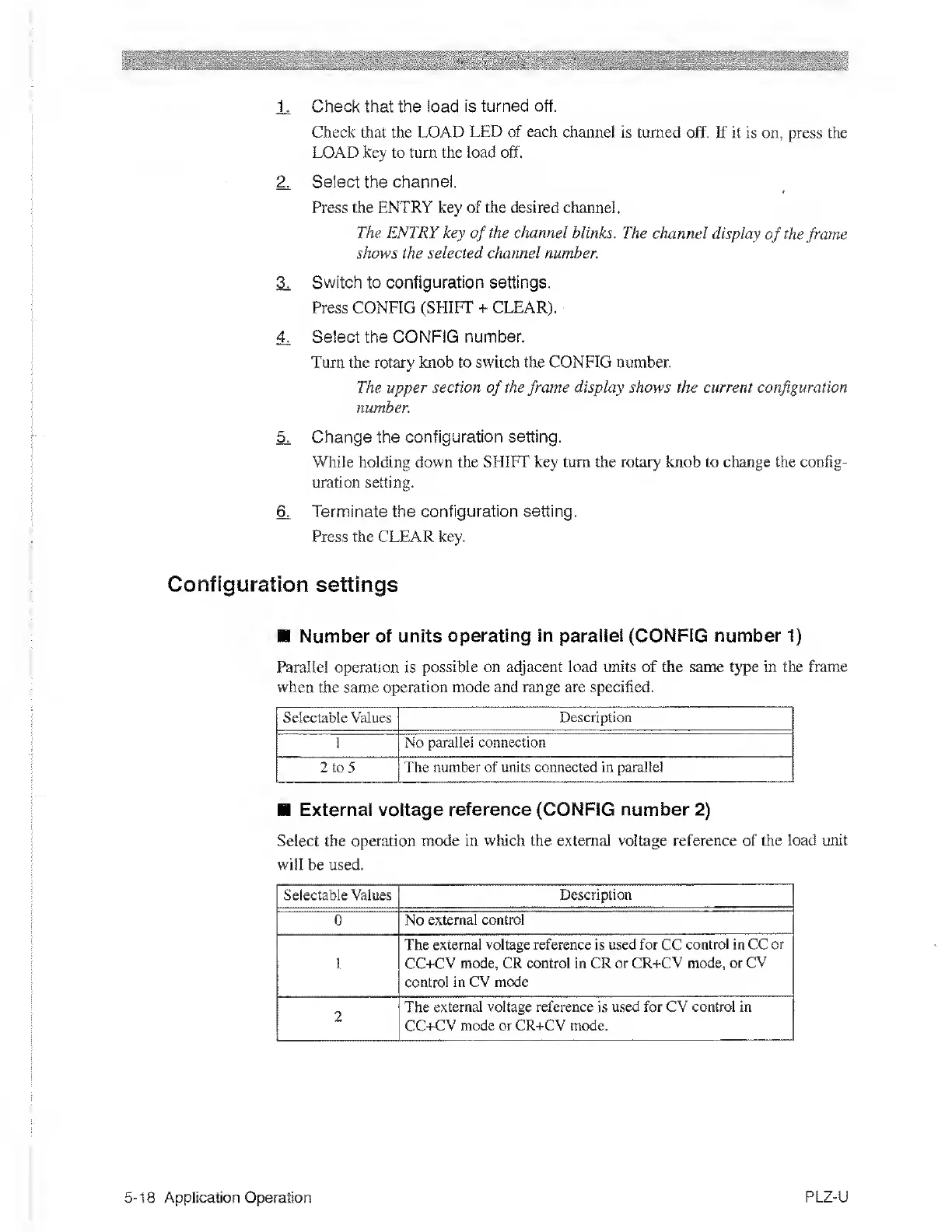

Kikusui PLZ-U Series Operation Manual

Check that the load
is turned off.
Check that the LOAD
LED of each
channel is turned
off. If it is on, press the
LOAD key to turn the load off.
Z Select the channel.
Press
the ENTRY key of the desired channel.
The ENTRY key
of
the
channel
blinks. The channel
display
of
the
frame
shows the selected
channel
number.
^
Switch to configuration settings.
Press CONFIG
(SHIFT + CLEAR).
4
Select the
CONFIG number.
Turn the rotary knob to switch the CONFIG number.
The
upper section
of
the
frame
display shows the current
configuration
number.
5^
Change the
configuration setting.
While holding down
the SHIFT key turn
the
rotary
knob
to change the config-
uration setting.
Terminate the
configuration setting.
Press the CLEAR key.
Configuration
settings
Number of units
operating in parallel (CONFIG number
1)
Parallel operation is
possible on adjacent load units of the same type in the
frame
when
the same
operation mode and range are specified.
Selectable Values
Description
1
No parallel connection
2 to 5 The
number of units connected in parallel
External voltage
reference (CONFIG number
2)
Select the operation
mode in which
the external
voltage reference of the
load
unit
will
be used.
Selectable Values
Description
0 No
external control
1
The
external voltage reference
is
used for CC
control in
CC
or
CC-i-CV mode, CR control in CR or
CR-i-CV mode, or CV
control in CV mode
2
1
The
external voltage reference
is
used for CV control in
CC+CV mode or CR+CV mode.
5-18
Application Operation
PLZ-U
