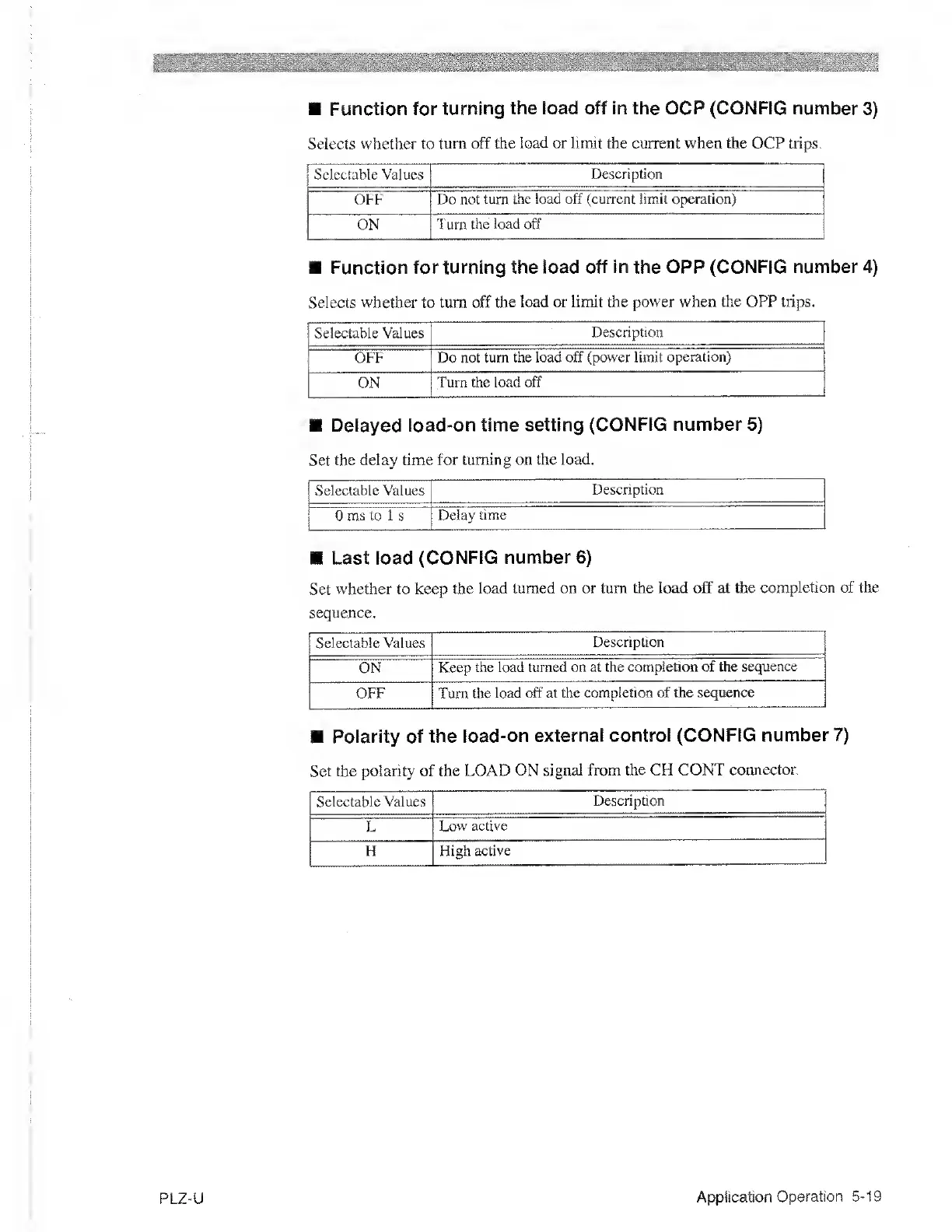

Function for
turning the load off in the OCR (CONFIG number
3)
Selects whether to
turn off the
load or limit
the current when
the
OCP trips.
Selectable Values
Description
OFF
Do not turn
the load
off (current
limit
operation)
ON
'furn the load off
i
Function for
turning the load off in the OPP (CONFIG number
4)
Selects whether to turn off
the load or limit the
power
when
the OPP trips.
Selectable Values
Description
OFF Do not
turn the load off (power limit
operation)
ON
Turn the load off
Delayed load-on
time setting
(CONFIG number
5)
Set
the delay time for
turning on the load.
Selectable Values
Description
0
ms to 1
s
Delay
time
Last load
(CONFIG
number
6)
Set
whether to keep the
load turned on or
turn the load off at the
completion of the
sequence.
Selectable Values
Description
ON Keep
the load turned on at
the completion of the
sequence
OFF Turn the
load off at the
completion of the sequence
Polarity of the
load-on
external control (CONFIG
number?)
Set the polarity of
the LOAD ON
signal from the CH CONT
connector.
Selectable Values
Description
L
Low active
H
Fligh active
PLZ-U
Application
Operation
5-19
