Kikusui PLZ-U Series Operation Manual

Z Carry the load unit
with
both hands and slowly insert it into
the desired
slot.
Check
that the
panel
surface of the
load
unit is nearly flat with the frame
panel
surface.
X
Fix the load unit
in place
using the unit
attachment screws (M3-10) pro-
vided.

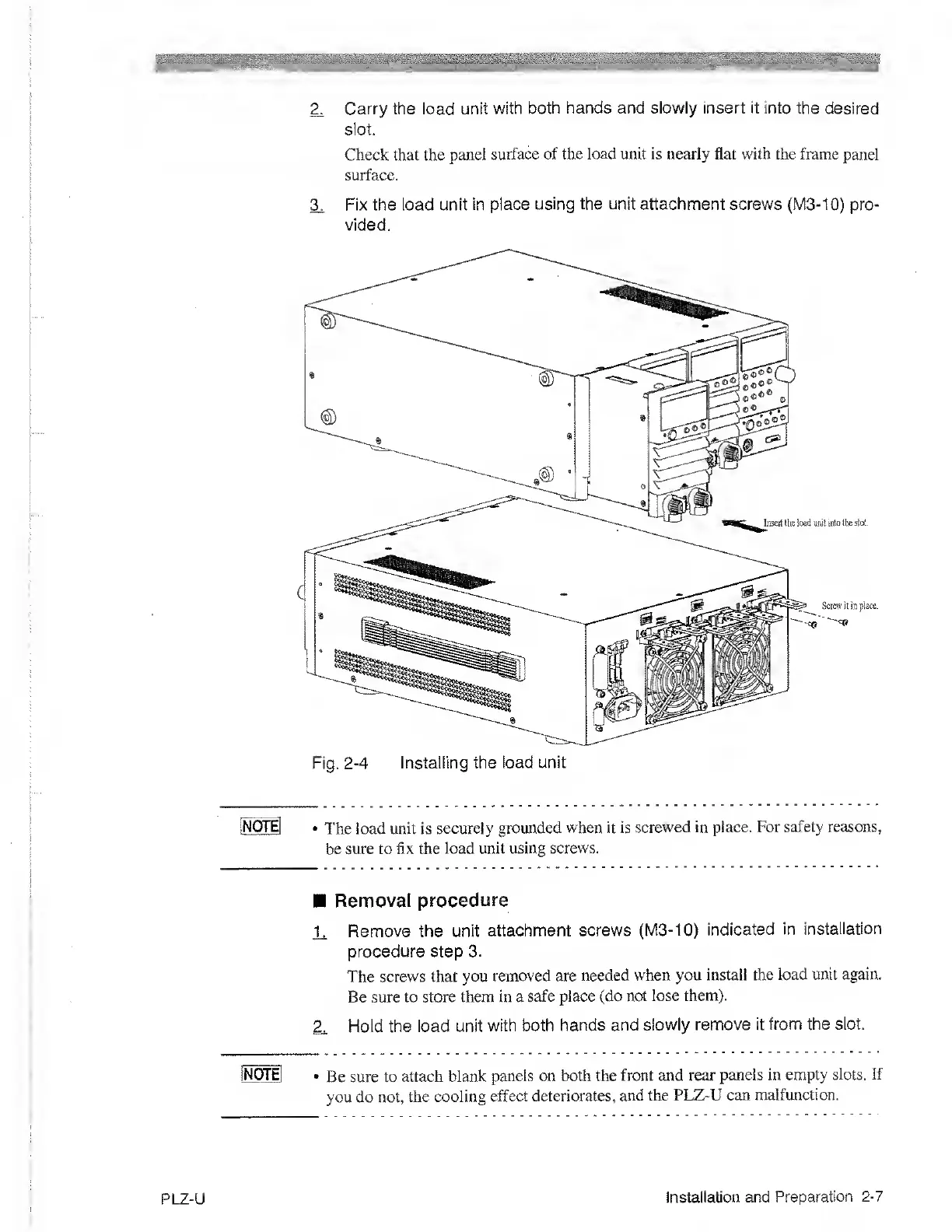

Fig.
2-4
Installing the
load unit
The load unit
is securely
grounded when it is
screwed in place. For safety
reasons,
be sure to fix the
load
unit
using
screws.
Removal procedure
T Remove the unit
attachment
screws
(M3-10)
indicated in
installation
procedure step
3.
The
screws that you
removed are
needed when
you install the
load unit again.
Be sure to
store them in a
safe place (do
not lose them).
Z.
Hold the load unit
with both
hands and slowly
remove it
from the slot.
•
Be sure to
attach blank
panels on both the
front and rear
panels in empty
slots. If
you do not,
the cooling
effect deteriorates,
and the PLZ-U
can malfunction.
PLZ-U
Installation and
Preparation
2-7
