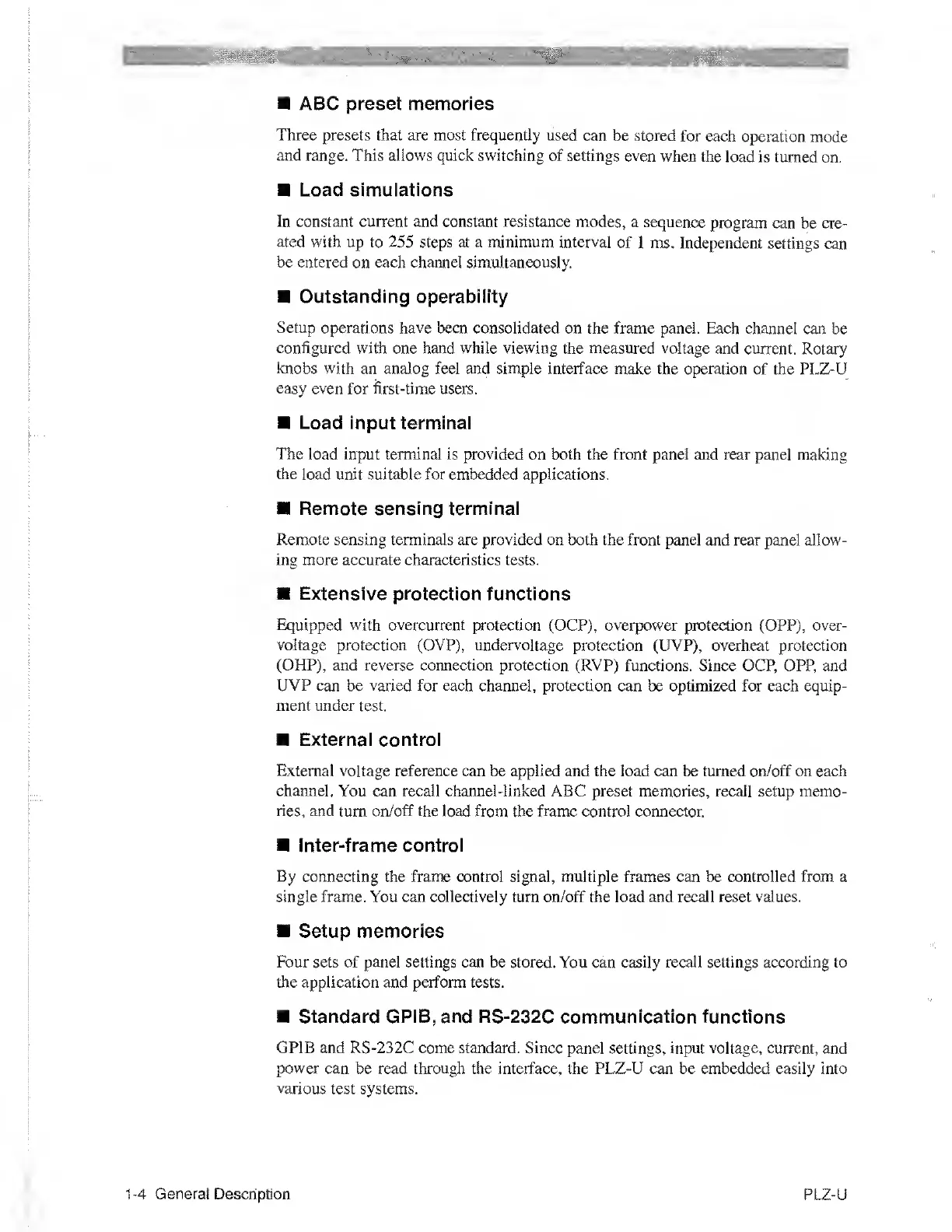

ABC preset memories
Three presets that are most frequently used
can be stored
for each
operation mode
and range.
This
allows quick switching
of settings even
when the
load is turned
on.
Load simulations
In
constant
current and constant resistance
modes,
a sequence
program can be
cre-
ated with up to 255
steps
at
a
minimum interval
of
1
ms.
Independent
settings can
be entered
on
each
channel simultaneously.
Outstanding operability
Setup
operations
have
been consolidated on the frame panel. Each channel
can be
configured
with one hand while viewing the measured voltage and current.
Rotary
knobs with an analog feel and simple interface
make
the operation
of the PLZ-U
easy even for first-time users.
Load
input terminal
The
load input terminal is provided on both the front panel and rear panel making
the
load unit suitable for embedded applications.
Remote sensing terminal
Remote sensing terminals are provided on both the front
panel and rear panel allow-
ing more accurate characteristics tests.
Extensive protection
functions
Equipped with overcurrent
protection (OCP), overpower protection (OPP), over-
voltage protection (OVP), undervoltage
protection (UVP), overheat protection
(OHP), and reverse connection protection (RVP)
functions. Since OCP, OPP, and
UVP can
be
varied
for
each channel,
protection can be optimized for each equip-
ment under test.
External control
External voltage
reference can be applied and the load can be turned on/off on each
channel.
You can
recall
channel-linked ABC preset memories, recall setup memo-
ries, and turn on/off the load from
the
frame
control connector.
Inter-frame control
By
connecting the frame control signal, multiple frames can be controlled from
a
single frame.
You can collectively turn on/off the load and recall reset
values.
Setup
memories
Four sets of panel settings can be stored.
You can easily
recall settings according to
the application and perform tests.
Standard GPIB, and RS-232C communication functions
GPIB and RS-232C come standard. Since
panel settings,
input voltage,
current, and
power
can be read
through
the interface, the PLZ-U can be embedded easily into
various
test systems.
1-4
General
Description
