Kikusui PLZ-U Series Operation Manual

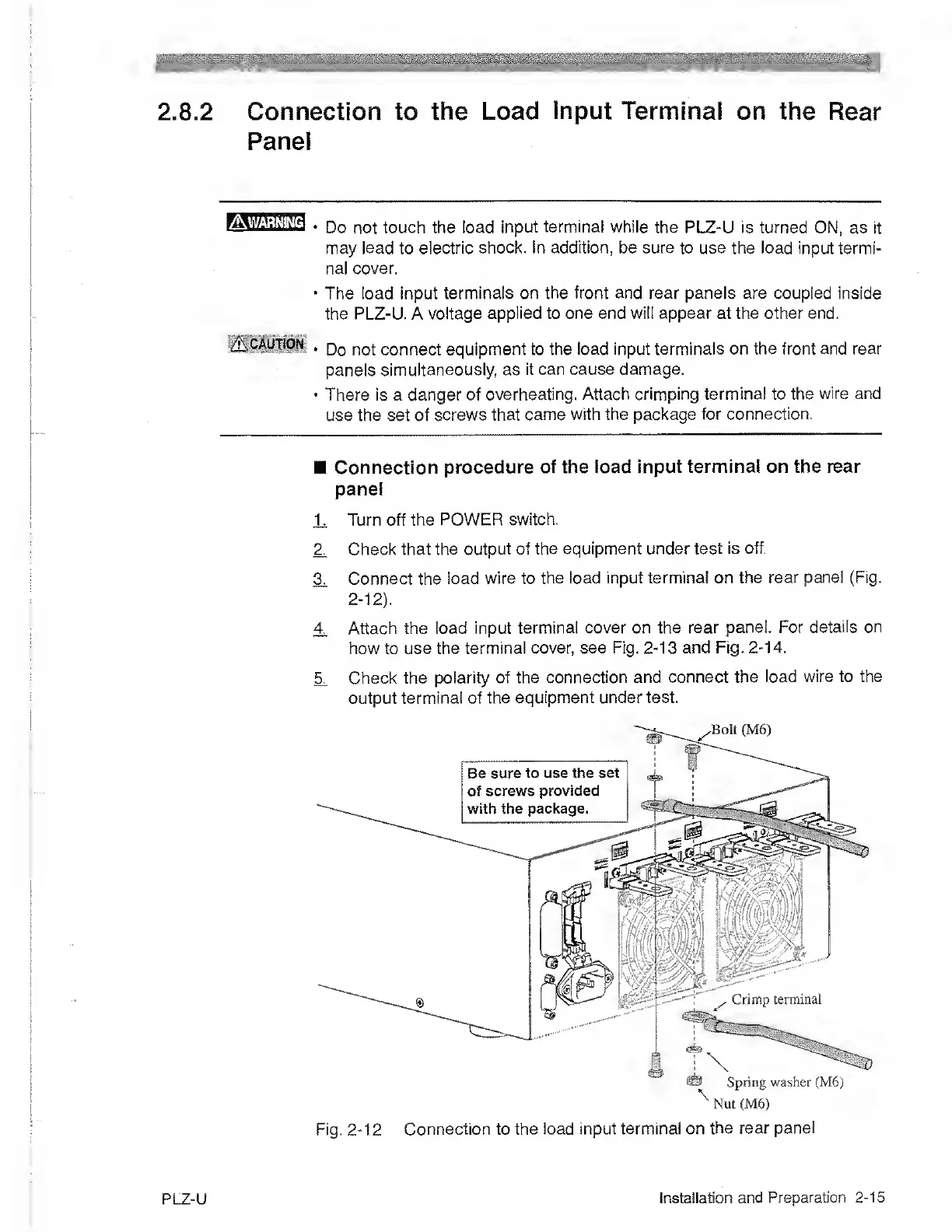

2.8.2 Connection to
the Load
Input Terminal
on the
Rear
Panel
Awarns^g
Do not
touch the load input
terminal
while the PLZ-U
is turned ON, as it
may lead to
electric shock.
In addition,
be sure to
use
the load
input termi-
nal cover.
•
The
load
input terminals on
the front and
rear panels are coupled inside
the PLZ-U. A
voltage applied to one end will appear at the other end.
•
Do not connect
equipment to the load input
terminals on the front and rear
panels
simultaneously, as
it can cause damage.
•
There is a
danger of
overheating. Attach crimping terminal to the
wire and
use the set of
screws that
came with the package for
connection.
Connection
procedure of the load input
terminal on the rear
panel
T Turn off
the POWER
switch.
Z Check that the
output of the equipment under
test is off.
3. Connect the
load wire to
the load input terminal on the
rear panel (Fig.
2
-
12
).
4 Attach the load input
terminal cover on the
rear panel. For
details on
how to use the
terminal cover, see Fig.
2-13
and Fig.
2-14.
Check the
polarity of the
connection and connect the
load wire to the
output
terminal of the
equipment under test.
PLZ-U
Installation
and Preparation
2-15
