Killbros 690 - Auger Components

21

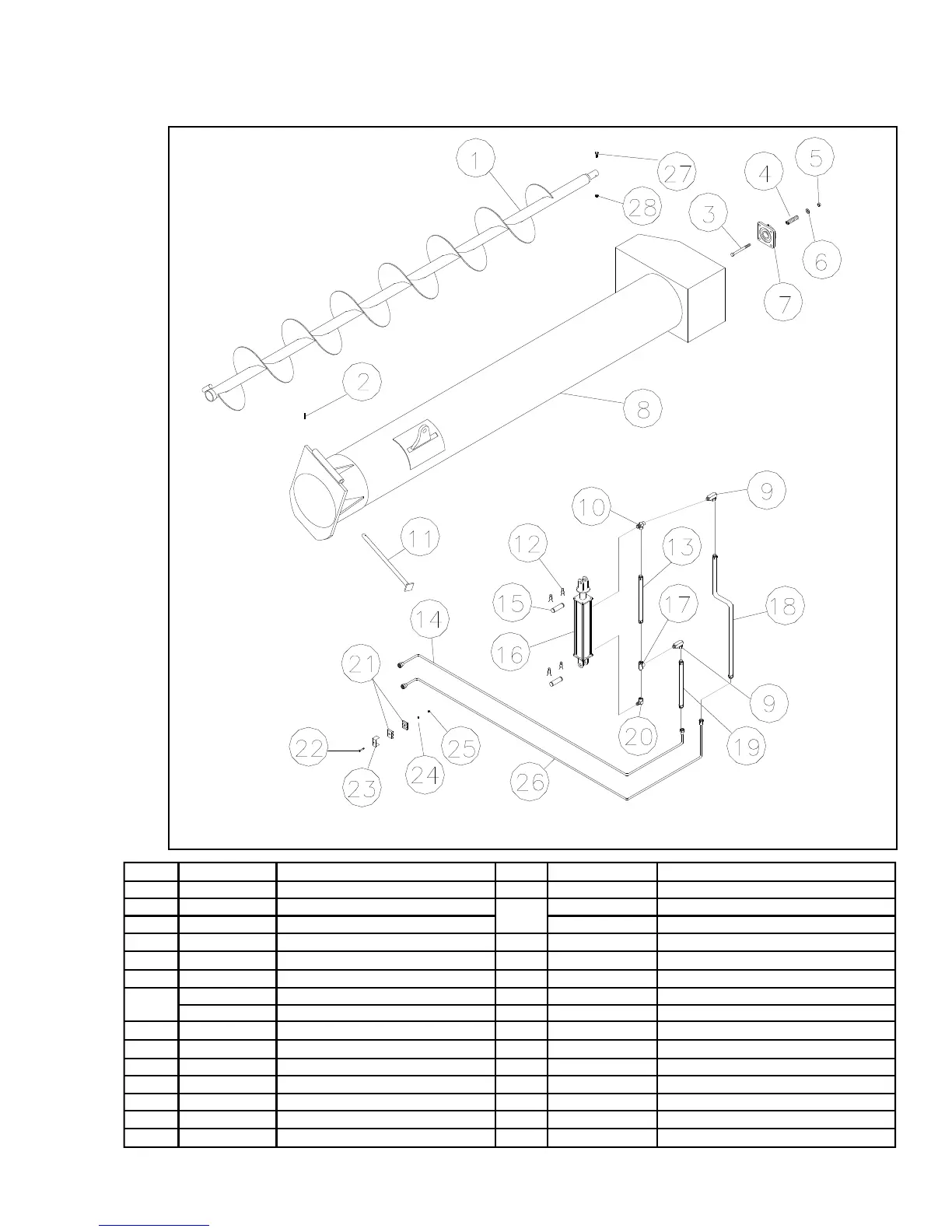

Auger Components
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
PART NO.
103482
911444-162
9389-115
100719
94981
9405-088
100743
102204
103493*
100784
103442
103484
102426
103437
103444
DESCRIPTION
U.V.A. Screw
1/4” x 1-1/2” Expansion Pin
1/2” x 5” HH Bolt
Comp. Spring, 3-5/8”
1/2” Reversible Locknut
1/2” Washer
1-1/2” Flange Bearing
1-1/2” Bearing Insert
U.V.A. Tube Assembly
3/8” Restrictor, 90 Degree
3/8” Male Run Tee
Hinge Pin
Hairpin Clip
19-3/8” Hydraulic Hose
3/8” Hydraulic Tube
ITEM
15
16
17
18
19
20
21
22
23
24
25
26
27
28
PART NO.
102427
100782
101791
103443
103439
103438
103441
102611
9389-007
103458
9404-017
9394-002
103445
9390-060
9928
DESCRIPTION
Cylinder Pin w/ Clips
2-1/2” x 20” Hyd. Cylinder
2-1/2” Hyd. Cylinder Repair Kit
Pilot Check Valve
51” Hydraulic Hose
30” Hydraulic Hose
3/8” Street Elbow, 90 Degree
Cushion, Hyd. Tube
1/4” x 1-1/2” Bolt
Upper Hose Bracket
1/4” Lockwasher
1/4” Nut
3/8” Hydraulic Tube
3/8” x 2-1/4” HCS Gr. 5
3/8” Locknut
OM02507
* Determine color (-G,-R,-OR)
