HLX+ in Series
HLX+ in Parallel

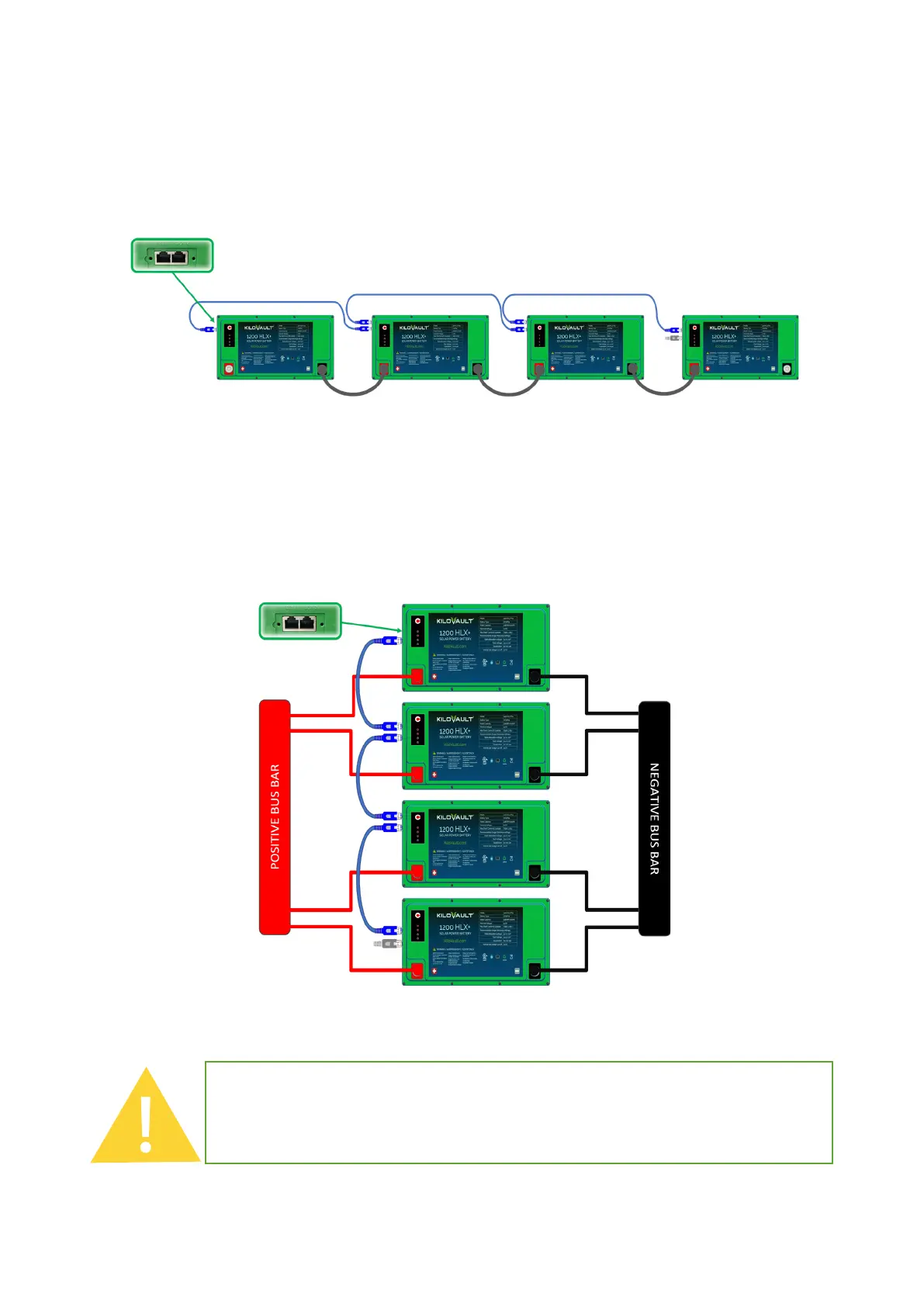

HLX+ Batteries are paralleled by wiring from individual HLX+ Batteries to DC busbars
or plates, which may be located in a DC combiner box or the inverter’s power panel.
All wire lengths from each HLX+ Battery to common busbars or plates should be identical
in length and gauge in order to balance the load across (all) HLX+ Batteries in the installa-
tion.
Warning:
All wire lengths from each HLX+ Battery to common busbars or plates should
be identical in length and gauge in order to balance the load across (all) HLX+
Batteries in the installation.
