STEP 3
ENGINE INSTALLATION:
NOTE: THE RIGHT INSTALLATION OF THE ENGINE IS CRUCIAL TO THE GOOD WORKING
ORDER OF THE SNOWBLOWER.

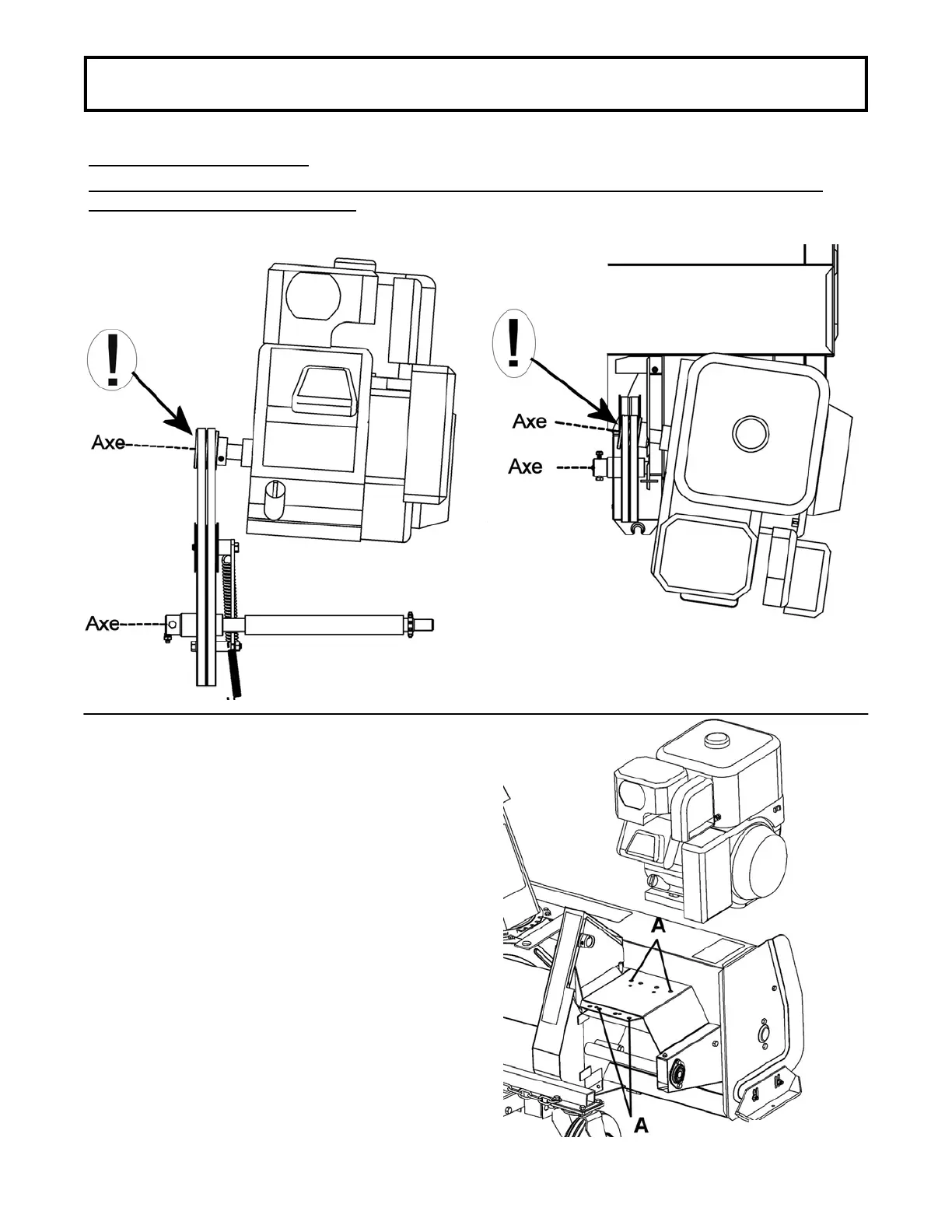

Figure 1
Engine not in right position
Figure 2
Engine not in right position
NOTE: Figures 1 and 2 show an engine that is not well positioned.
IMPORTANT: We recommend using a 13 H.P.
motor on this snowblower.
DO NOT USE A MOTOR BIGGER THAN A 13 HP,
THE PULLEYS AND BELTS ARE CALIBRATED
FOR A 13 HP MOTOR AND NOT BIGGER,
Remove the belt guide stopper (item 1) and the belt
guard (item 2).
ENGINE INSTALLATION, (HONDA, BRIGGS &
STRATTON OR TECUMSEH) 13 HP
Install the engine on the stand, using the holes
identified as item A.
Secure with four 3/8 x 1 1/2" bolts, two flat washers
(over the slot) and nuts.
NOTE: Make sure the side of the base of the engine
is parallel with the snowblower’s body.
Tighten the bolts firmly.
ASSEMBLY
Install engine
