ASSEMBLY

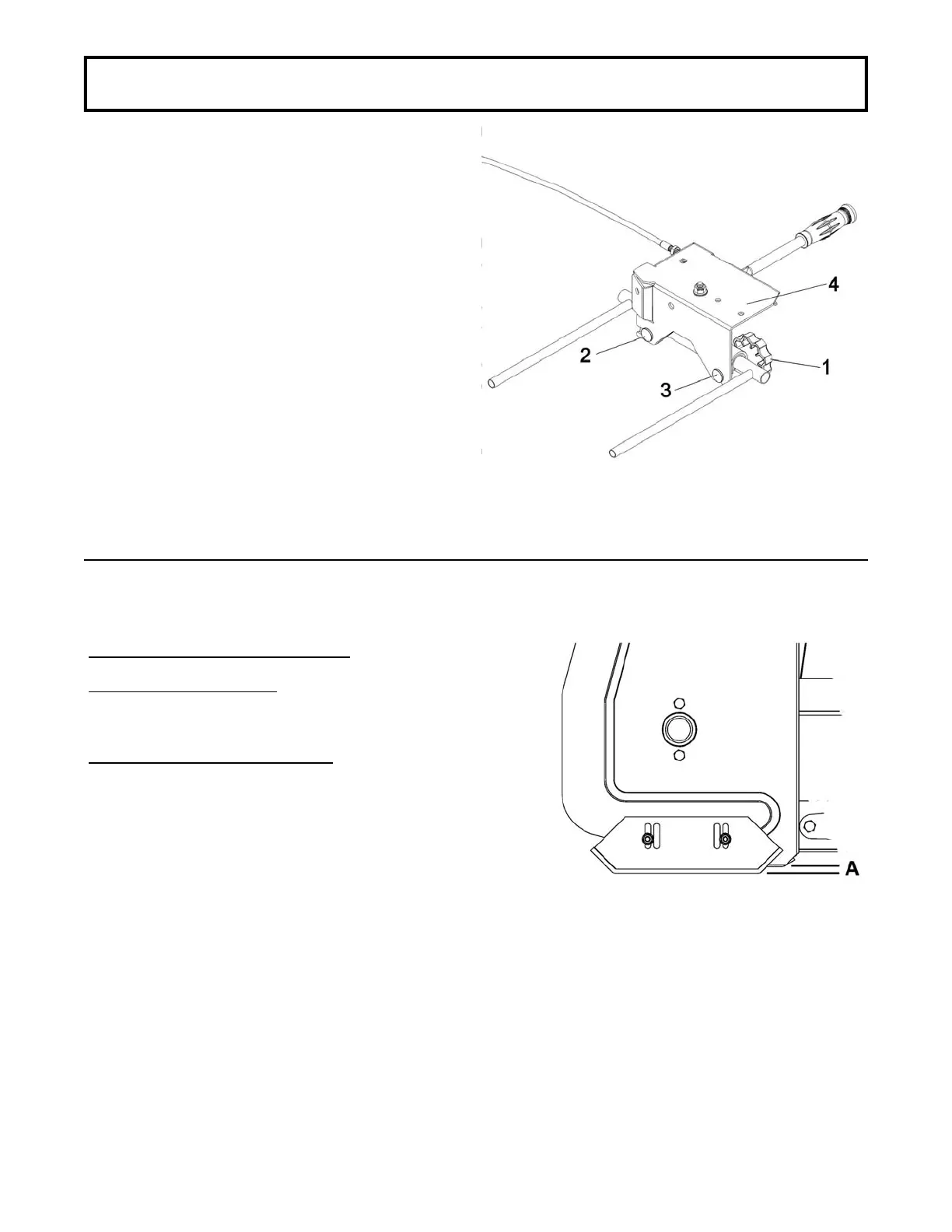

Install the clutch support (item 4) by loosening the
knob (item 1) and slide the front slot between the bolt
head (item 2) and the support. Slide the back slot
between the bolt head (item 3) and the support.
Secure with the knob (item 1).
Tighten all the bolts firmly.
VERIFY SKID SHOE ADJUSTMENT:
LEVEL PAVED SURFACE:
Adjust skid shoes to allow
3/16" to 1/4" clearance (A) between cutting edge and
surface.
UNEVEN OR GRAVEL SURFACE:
Adjust skid shoes
to allow 1/2" to 5/8" clearance (A) between cutting
edge and surface.
Adjust skid shoes
Install clutch support
