ASSEMBLY
IMPORTANT: TORQUE ALL BOLTS ACCORDING
TO TORQUE SPECIFICATION TABLE (SEE TABLE
OF CONTENTS) WHEN STATED: TIGHTEN
FIRMLY. REFER TO PARTS BREAKDOWN
SECTION FOR PART IDENTIFICATION.

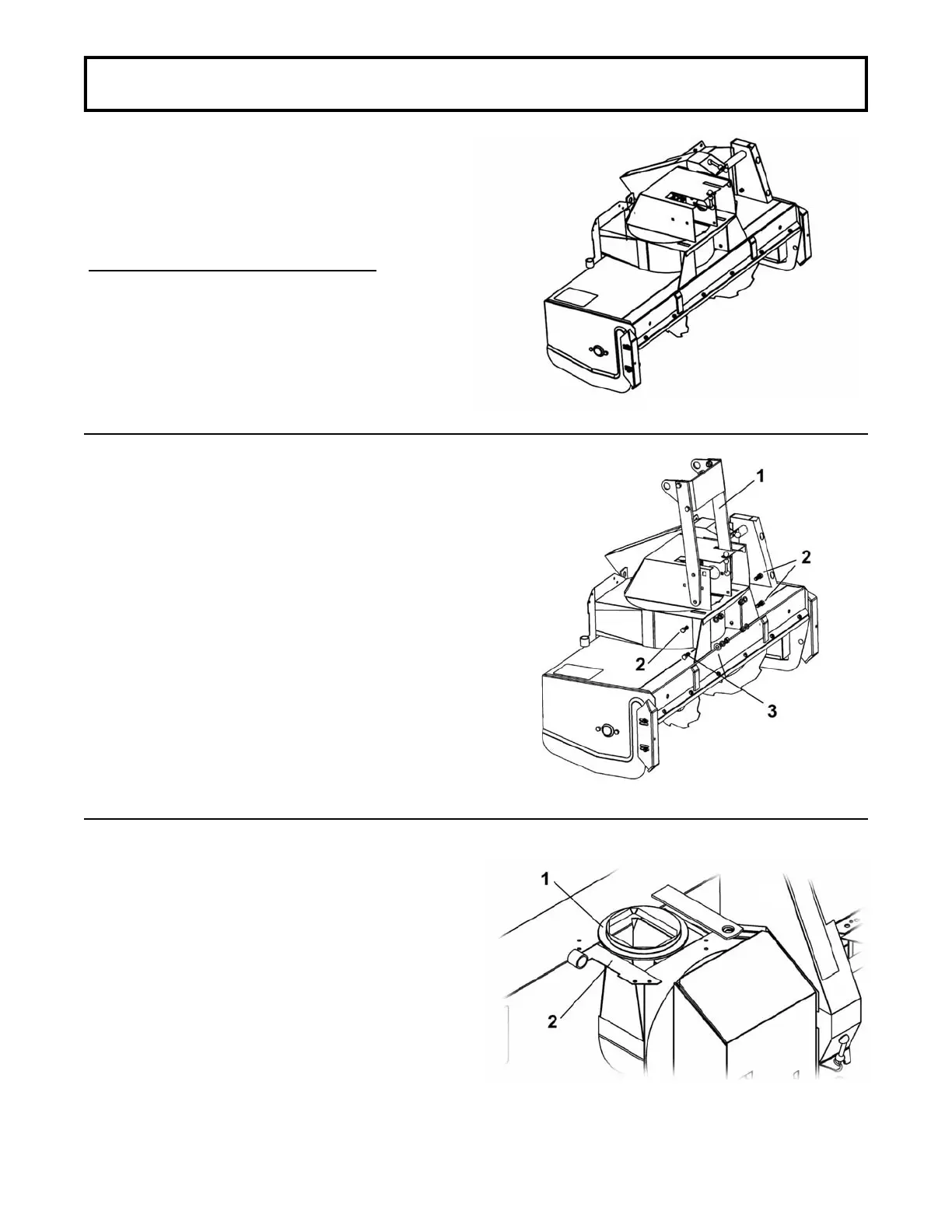

STEP 1
SNOWBLOWER PREPARATION:
Place snowblower face down.
Install the hitch (item 1) with three 7/16 x 1 1/4" bolts
(item 2), lock washers, nylon insert locknuts and a
7/16 x 1 1/4" bolt with a flat washer (item 3) over the
slot, lock washer and a nylon insert locknut as shown.
Tighten the bolts firmly.
Turn the snowblower upright.
Place the rotation ring (item 1) on top of the
snowblower (item 2) as shown.
Only one position provides a perfect fit.
Install hitch
Install rotation ring
Place snowblower face down
