ASSEMBLY
STEP 4
INSTALLATION ON THE VEHICULE:
Install the optional quick hitch mounting brackets
(item 1) under the vehicle. Refer to the Mounting
Bracket Chart to identify the proper bracket model for
your vehicle. (see table of contents).
Follow the mounting instructions supplied with the
mounting bracket kit.
DO NOT INSTALL THE OTHER ITEMS.
Carefully drive the vehicle over the subframe.

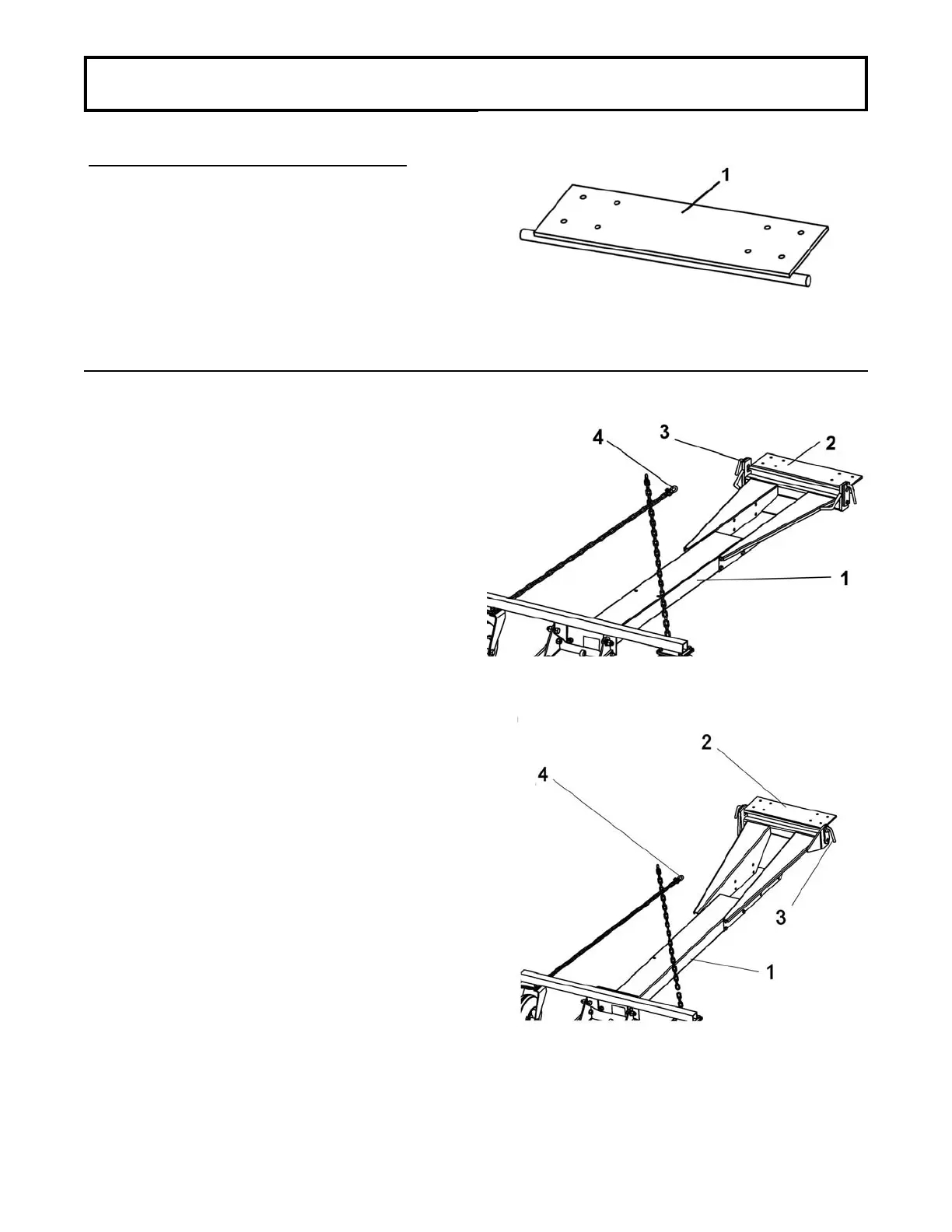

Hook the subframe (item 1) to the quick hitch bracket
(item 2) and secure in place with the handle locks
(item 3).
Attach the chains with the shackles (item 4) to the
vehicle ’s suspension to prevent the snowblower from
swaying side to side.
NOTE: Do not install the chains to the front
bumper of the vehicle.
Chains must be tight and crossed horizontally,
parallel to the ground as shown.
