ASSEMBLY
LIFT THE SNOWBLOWER USING THE A.T.V.’S
WINCH:

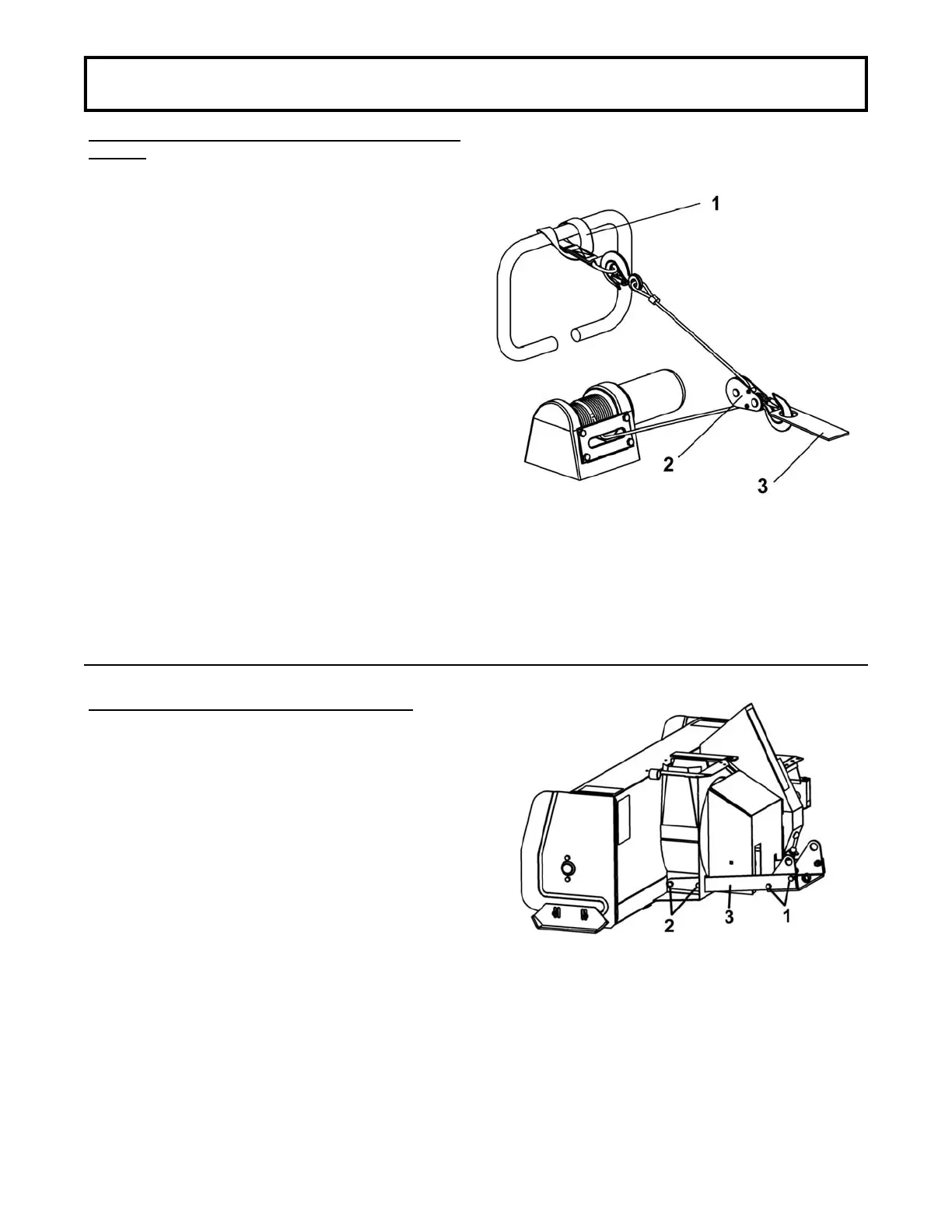

NOTE: Optional kit #700269 Lift connection kit (items
1 & 2) must be used. This kit will double the winch’s
lifting and braking capacity and reduces the lifting
speed by 50%. This will prevent damage to the
snowblower’s engine.
Hook the pulley block (item 2) into the hole on the flat
bar welded on top of the snowblower (item 3).
Remove the pulley from the block to pass the winch
cable through the pulley block. Use the nylon strap
(item 1) supplied in the kit to attach the winch cable to
the vehicle's chassis.
If the winch is located lower than the pulley block on
the snowblower, attach the cable in the highest
position possible on the vehicle’s chassis.
If the winch is located higher than the pulley block on
the snowblower, attach the cable in the lowest
position possible on the vehicle’s chassis.
If snowblower doesn’t raise evenly see below for
instructions.
VERIFY IF SNOWBLOWER RAISES EVENLY
If snowblower does not raise evenly, follow these
instructions:
Loosen the eight bolts (items 1 & 2, four on each
side) which hold the push frame (item 3).
Lift the engine side of the snowblower and slide a 1
1/2" (approx.) piece of wood underneath.
Tighten the eight bolts very firmly (torque to 65 lbs/ft).
The snowblower should raise evenly. If not, repeat
the procedure using thicker or thinner pieces of wood
depending on the weight of the engine.
Install lift connection kit
Verify if the snowblower raises evenly
