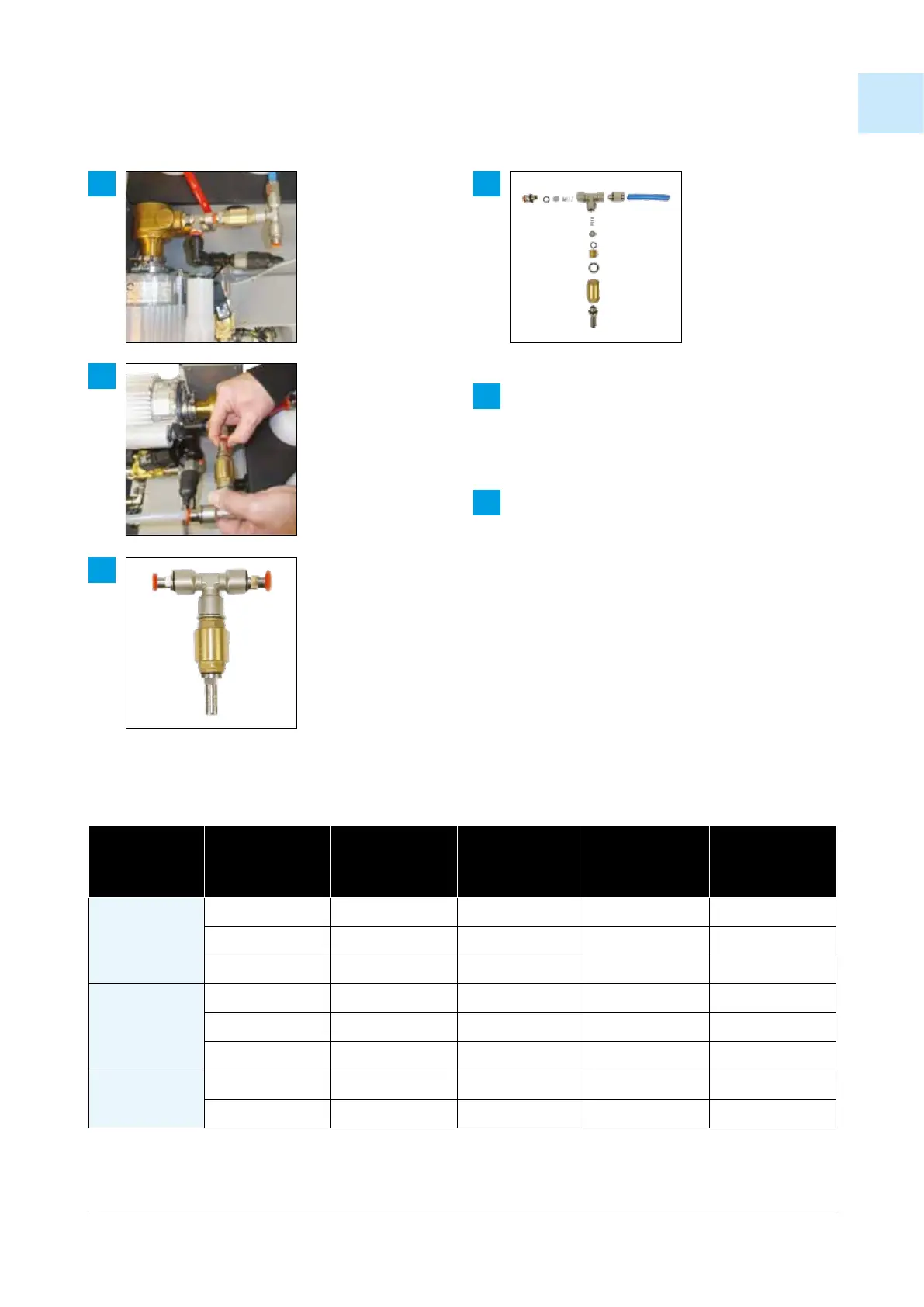

Kinetico Reverse Osmosis Compact Series - Nozzle Chart

www.kinetico.eu
37
1
Identify the reject
and recirculation
plumbing lines
2
Remove the male
and the check
valve together
with the drain line
3
Disassemble the
fittings
This will expose
the fixed orifice
flow restrictors.
4
Inspect for
blockage
If an orifice is
blocked, the fitting
must be
unscrewed before
cleaning.
Note: Always check both orifices.
5
Cleaning
Use water, or air pressure. Dilute acid may
also be used should blockage be due to
hardness scaling.
6
Replace the fitting and elbow connectors
RO-Compact 2 and 3:
Model
Maximum
Hardness
0
o
dH
Recovery (%)
Circulation
Nozzle
Permeate
Nozzle
Setting
Compact 1
0 75 136 43 -
10 50 115 67 -
25 40 115 78 standard
Compact 2
0 75 115 43 standard
10 50 115 89 -
25 40 115 98 -
Compact 3
0 75 177 59 standard
10 50 177 110 -
Nozzle chart:
