Kinetico Drinking Water Filter
with MACguard
®
Undersink Models 7000 and 7500
Installation Instructions
Rev.: 01/2011 Kinetico Incorporated ◆ Corporate Headquarters ◆ Newbury, Ohio 44065 ◆ (440) 564-9111 Product No. 9383H
5

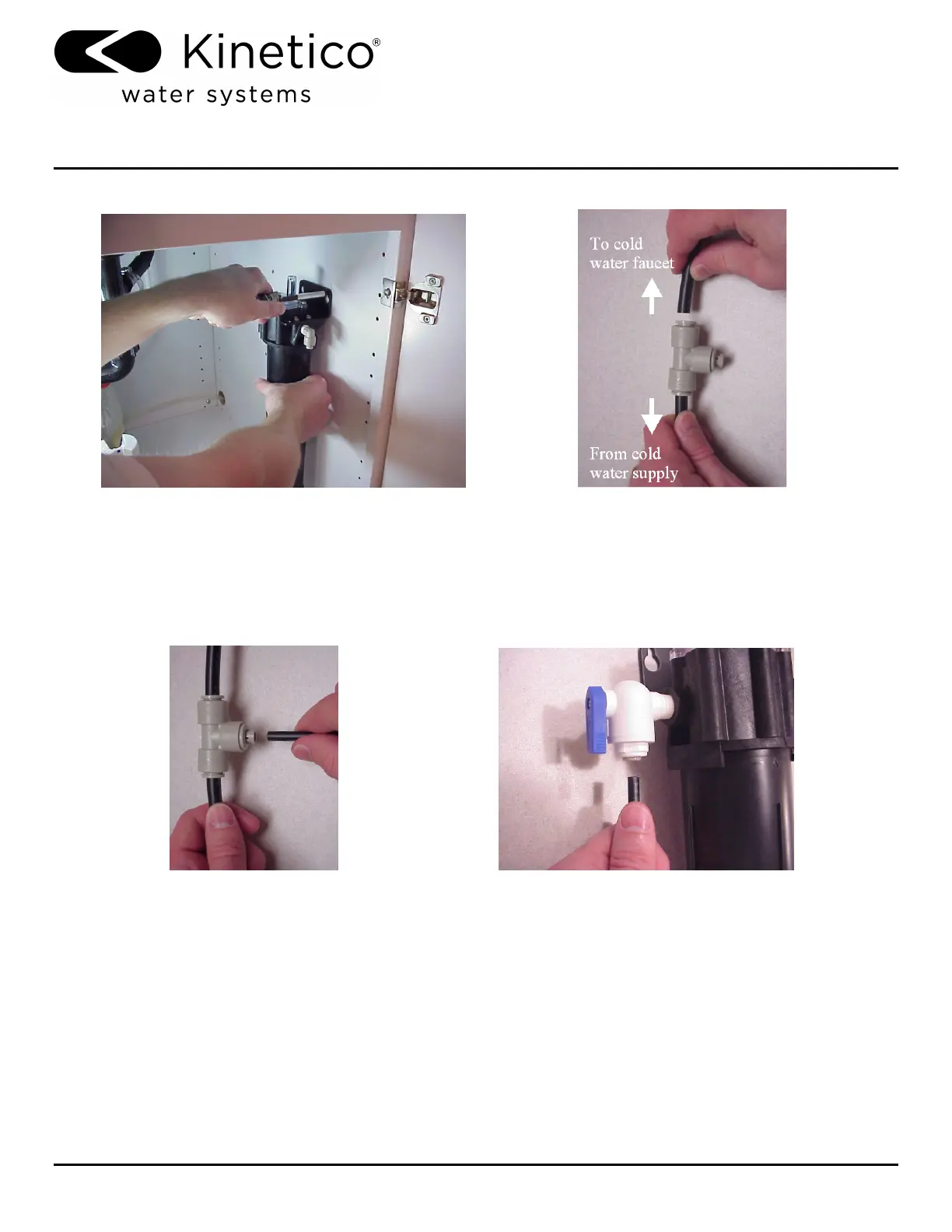

Figure 6. Filter Bracket Installation
Figure 7. Water Supply Connections
8. Insert one end of the ¼” tubing provided into the ¼” outlet on the fitting plumbed into the cold water line (See Figure8).
You may need to trim the length of the tubing to accommodate your installation. Insert the other end into the
elbow/shutoff valve fitting on the inlet on the left side of the filter head/bracket assembly (See Figure 9).
Figure 8. Cold Water Supply
Connection to Tee Fitting
Figure 9. Cold Water Supply Connection
to Shutoff Valve
9. Push one end of the ¼” tube x ¼” tube faucet connector onto the ¼” tubing that is attached to the faucet assembly
(See Figure 10).
Note: Depending on the installation, the tubing that is attached to the faucet assembly may reach the
outlet elbow of the filter head/bracket assembly without using the faucet adapter and an extra length
of tubing. Be sure this line is not pinched or stressed at the fittings.
10. Install a length of ¼” tubing from the faucet connector into the outlet elbow on the right side of the filter head/bracket
assembly (See Figure 11).
