11. 使用時各項調整
11-1 針線張力調整梢
每一條針線各對應一支調整梢，可分別調整
針線上線環的大小
11-1-1 標準設定位置
1. 降下揚線臂到最低點。
2. 設定調整梢端面與最右針針線輕輕接觸。
3. 設定調整梢比高 0.8mm。
4. 設定調整梢比高 1.6mm。
5. 設定調整梢比高 3.2mm。
6. 確認四支調整梢端面水平後，再確實鎖緊
螺絲。
11-1-2 變更調整梢的高低位置，可調整
針線線環的大小
1. 調整梢向上(U 方向)針線線環加大。
2. 調整梢向下(D 方向)針線線環減小。
11. Adjustments
11-1 Needle thread tension
Each of four needles has the needle thread
strike-off pin which can adjust the thread
tension respectively.

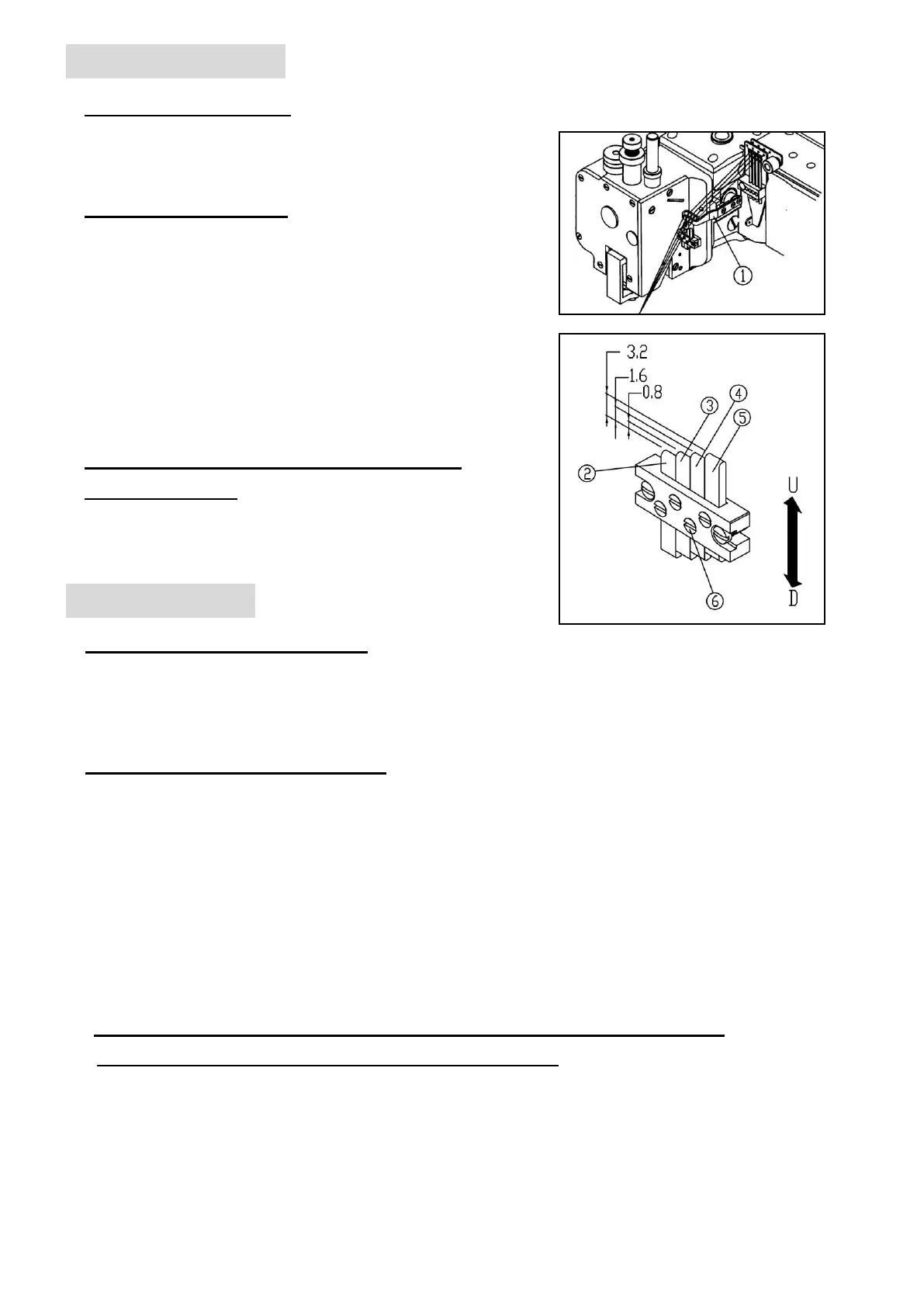

11-1-1 Standard set position
(1) Position the needle thread take-up at the lowest point.
(2) Set the top of pin even with the needle thread of the
fourth right needle.
(3) Set the pin even with or 0.8 mm higher than the pin.
(4) Set the pin 1.6mm higher than the pin.
(5) Set the pin 3.2mm higher than the pin.
(6) Tighten the screws securely.
Note: Check the top of the pins are horizontally.
11-1-2 By changing the High / Low position of strike off pin,
can changing the size of needle thread loops.
Loosen the screws and move the pins up or down to adjust
the needle thread loop.
 To make the loop larger, move the pins in the direction “U”.
 To make the loop smaller, move the pins in the direction “D”.
