OPERATION
POSITION CONTROL
The position of an attachment can be
freely controlled within the range of po-
sition control, using the lever. An attach-
ment will completely lower when the le-
ver is in the floating range.

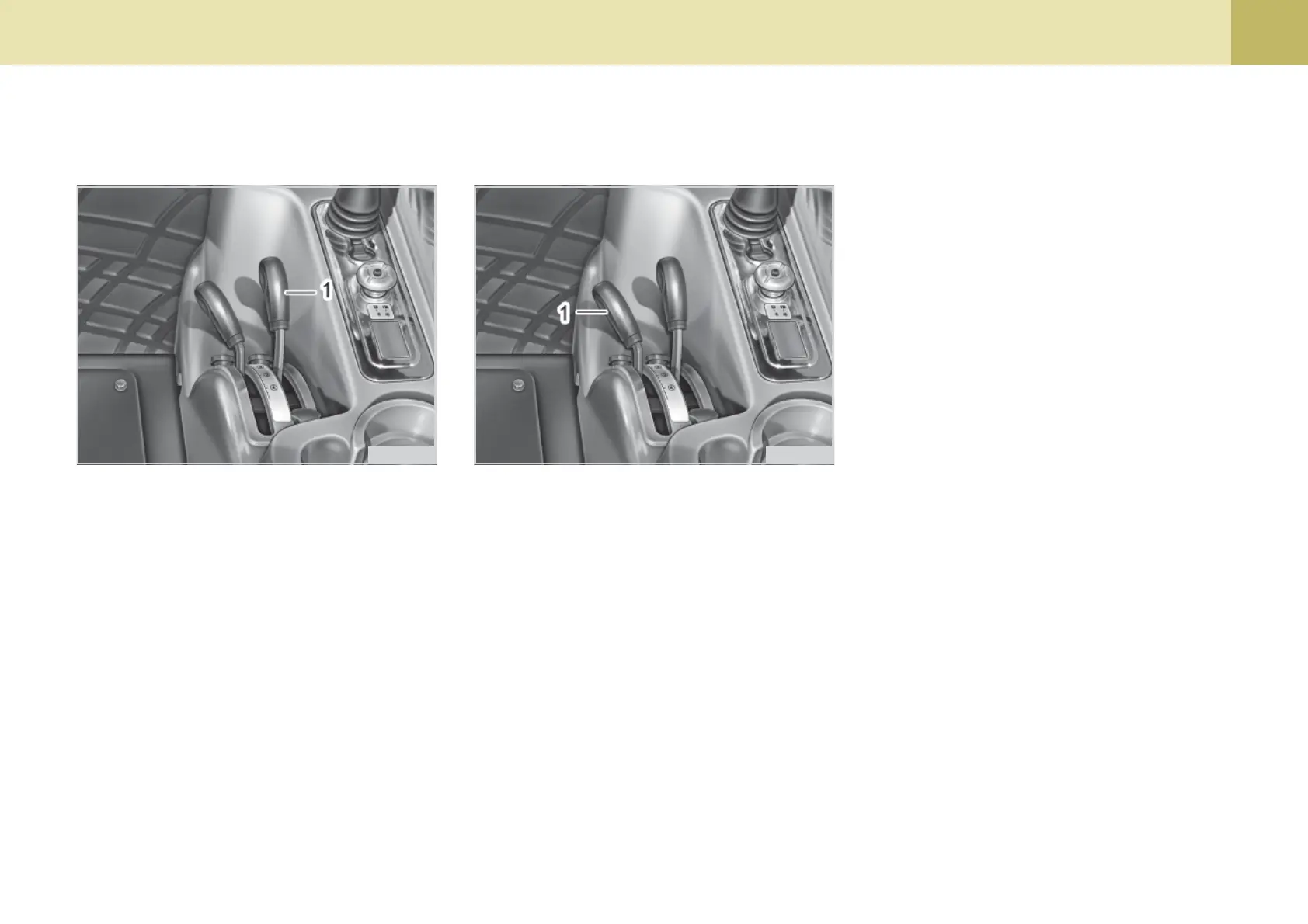

(1) Position Control Lever
DRAFT CONTROL
1. The draft control is used to do draft
work with an attachment, like a plow,
attached to the 3-point linkage.
2. In the floating range. the attachment
will completely lower.
3. In the draft control range, the hy-
draulic unit will have a force to lift
the attachment. In this stage, it is
possible to do stable work without
slipping.
(1) Draft control Lever
[3-POINT HITCH CONTROL SYSTEM]
S43O519A S43O520A
4. If the draft force is higher than the
resistance of the attachment, the at-
tachment will be lifted up. If it is lower
than the resistance of the
attachment, the attachment will be
restored to its original state.
5. By placing the lever closer to
shallow, the attachment can be lifted
up by smaller draft resistance.
