OPERATION
ATTACHING DEVICES FOR AN IMPLE-MENT (FOR GENERAL IMPLEMENT)

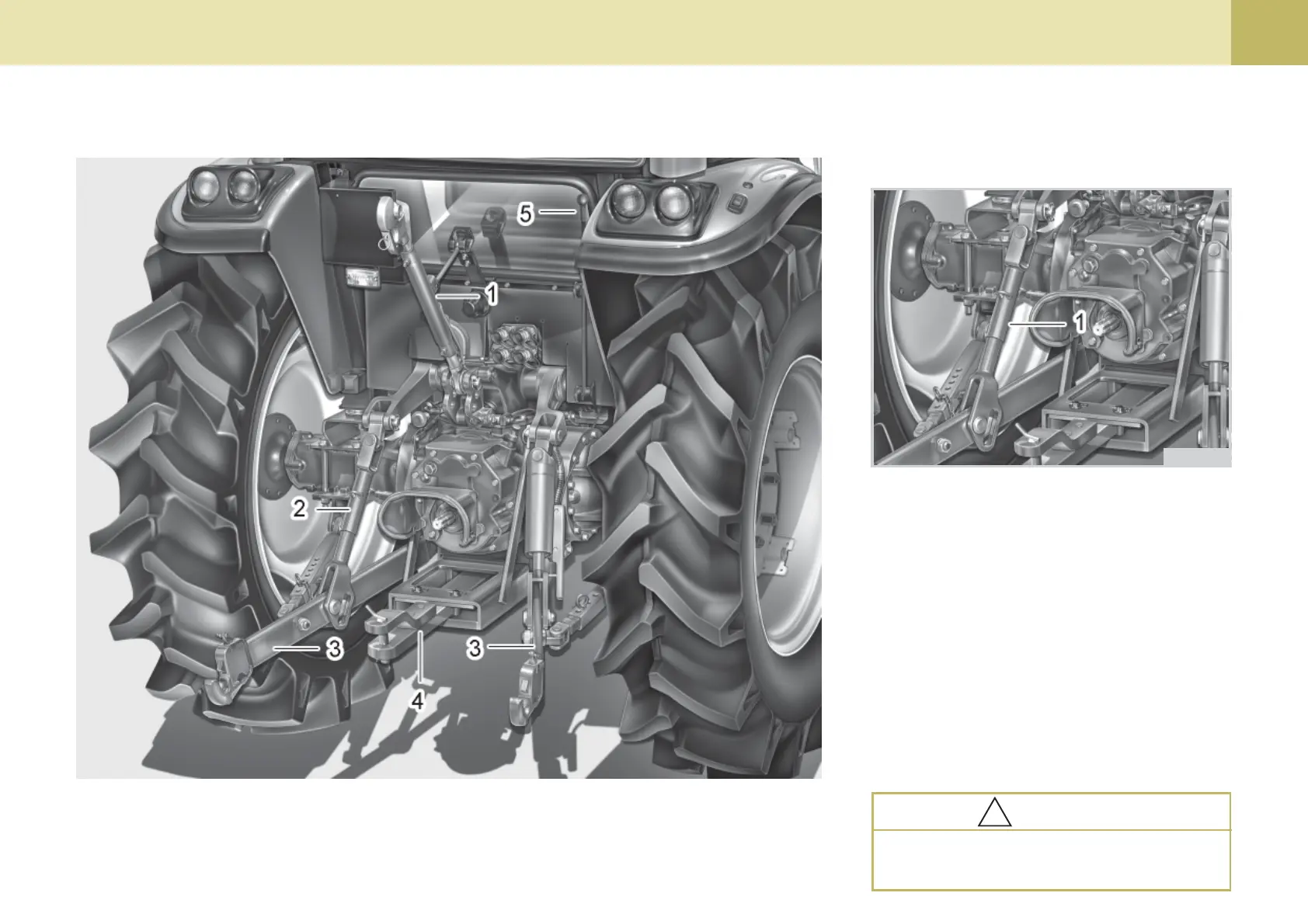

3 POINT HITCH
S43O525A
(1) Top Link
(2) Crank Lifting Rod (L)
(3) Lower Link
(4) Swing Drawbar Frame
ADJUSTMENT OF LIFT ROD
(1) Lift rod
S43O526A
1. Move the lift rod to adjust the posi-
tion of the attachment evenly.
2. After adjustment, fix it with the
stopper.
3. The exact position of the lift rod con-
nected to the lower link is as above.
The position can be changed accord-
ing to the attachment type.
Never use 2 (rear) holes of the
lower link.
!!
!!
!
CAUTION
