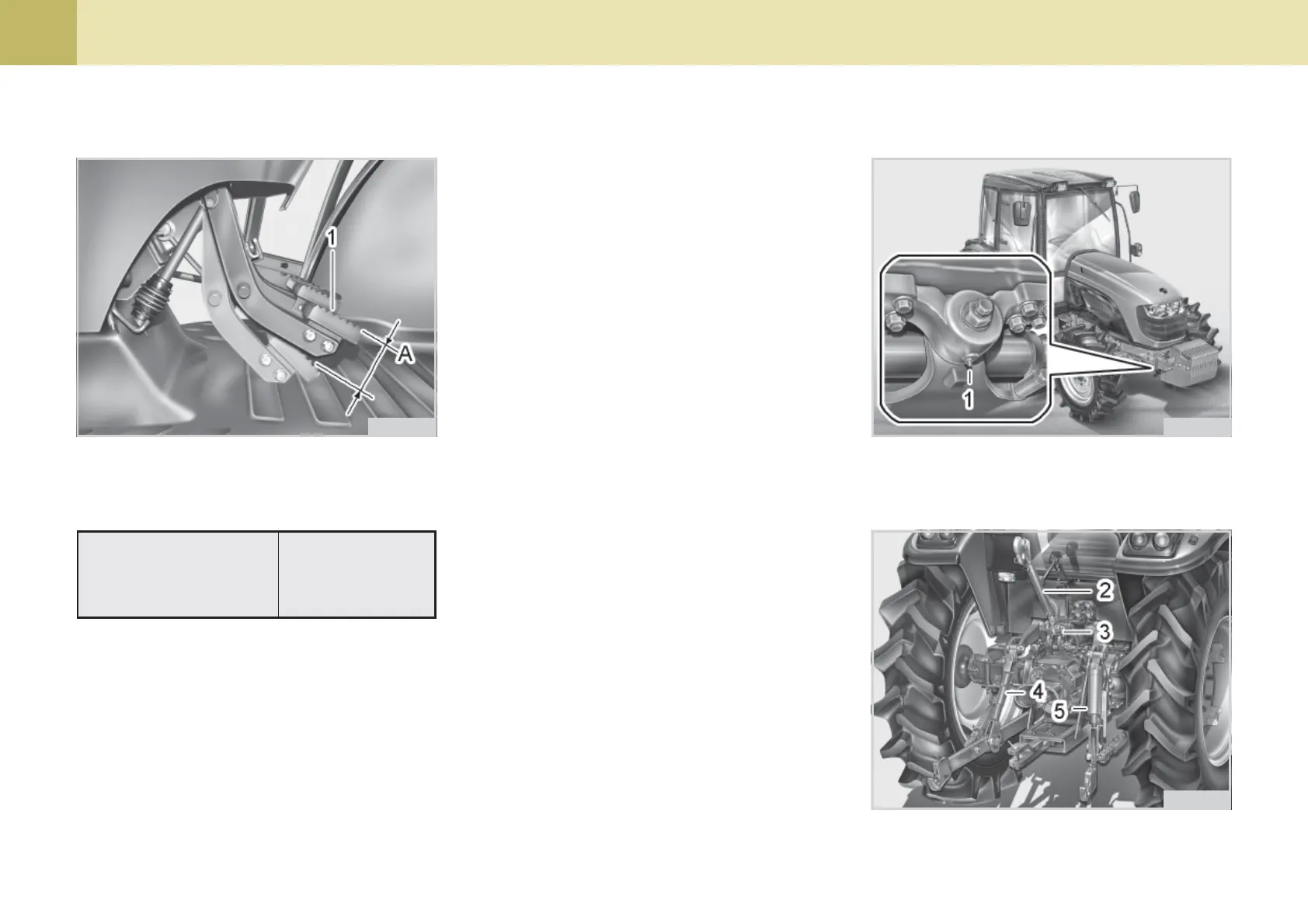

(2) Top Link (4) Lifting Rod (LH)
(3) Top Link Bracket (5) Lifting Rod (RH)
(1) Front Axle Bracket(Front/Rear Sides of
Axle)
You should apply a small amount of
multi-purpose grease to the following
points every 50 hours or as needed.
If your tractor is operated in extremely
wet, muddy, or dusty conditions you
should lubricate the fittings more often.
EVERY 50 HOURS
LUBRICATING GREASE FITTINGS
S43O621A
S43O619A
A properly adjusted clutch should have
3/4-1” of free play before engaging the
pressure plate. The clutch pedal should
be checked daily to verify the proper
amount of free play. Operating the trac-
tor with an impropely adjusted clutch
will lead to premature clutch failure.
(1) Clutch Pedal
(A) Free Play
ADJUSTING CLUTCH PEDAL
Proper clutch
pedal free travel (A)
0.03 ~ 0.30 in.
(1 ~ 10 mm)
on the pedal
S43O627A
