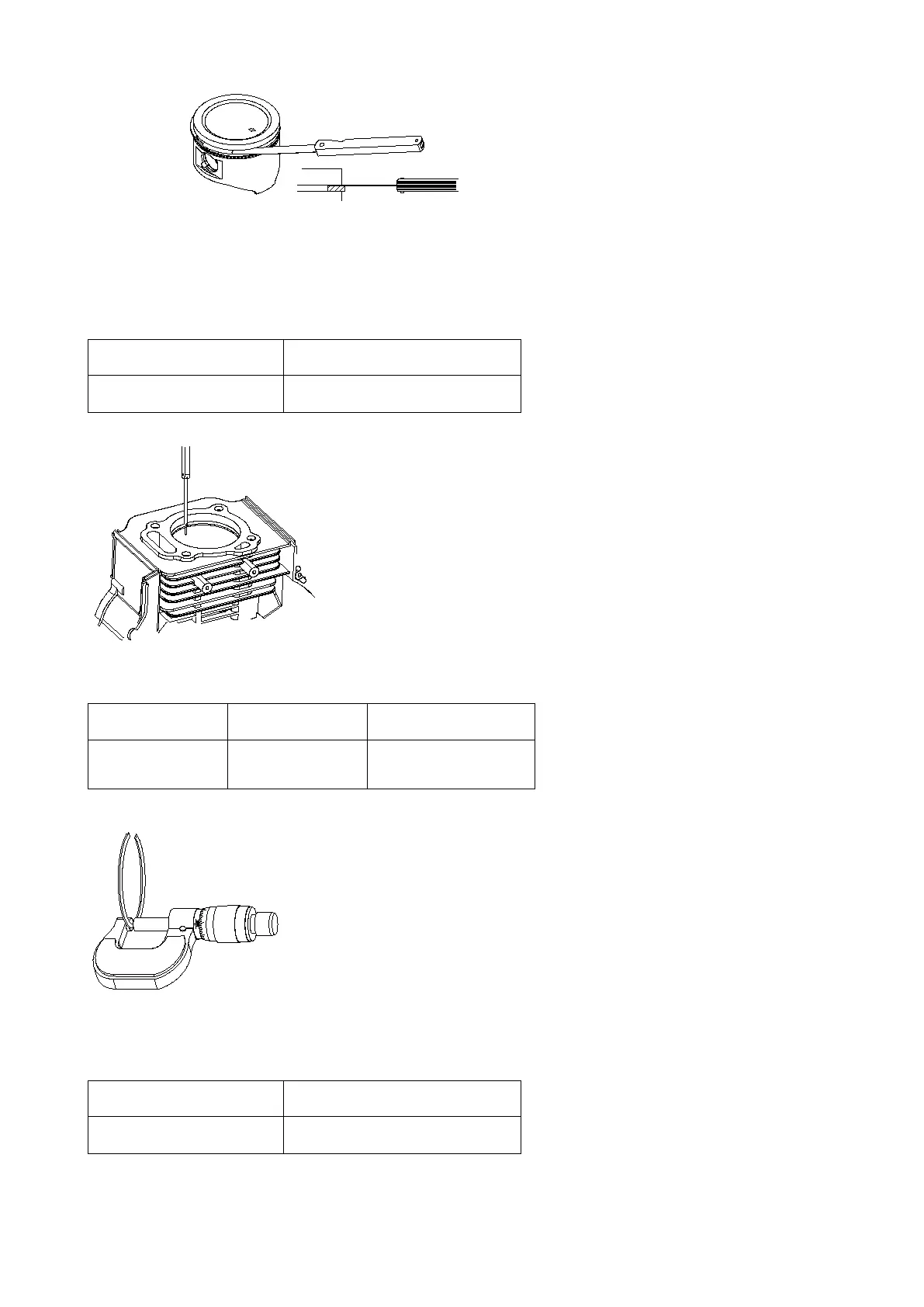

● Terminal clearance of piston ring
Fix the piston ring in cylinder using the top part of piston and measure the terminal clearance of piston.
Standard （mm）
Service limit (mm)
0.20~0.35 1.0
● Height of piston ring
Standard （mm
）
Service limit (mm)
The first ring/the
second ring
1.97~1.99 1.87
● External diameter of piston pin
Standard （mm）
Service limit (mm)
19.994~20.000 19.950
