PT8100 Service Manual
22

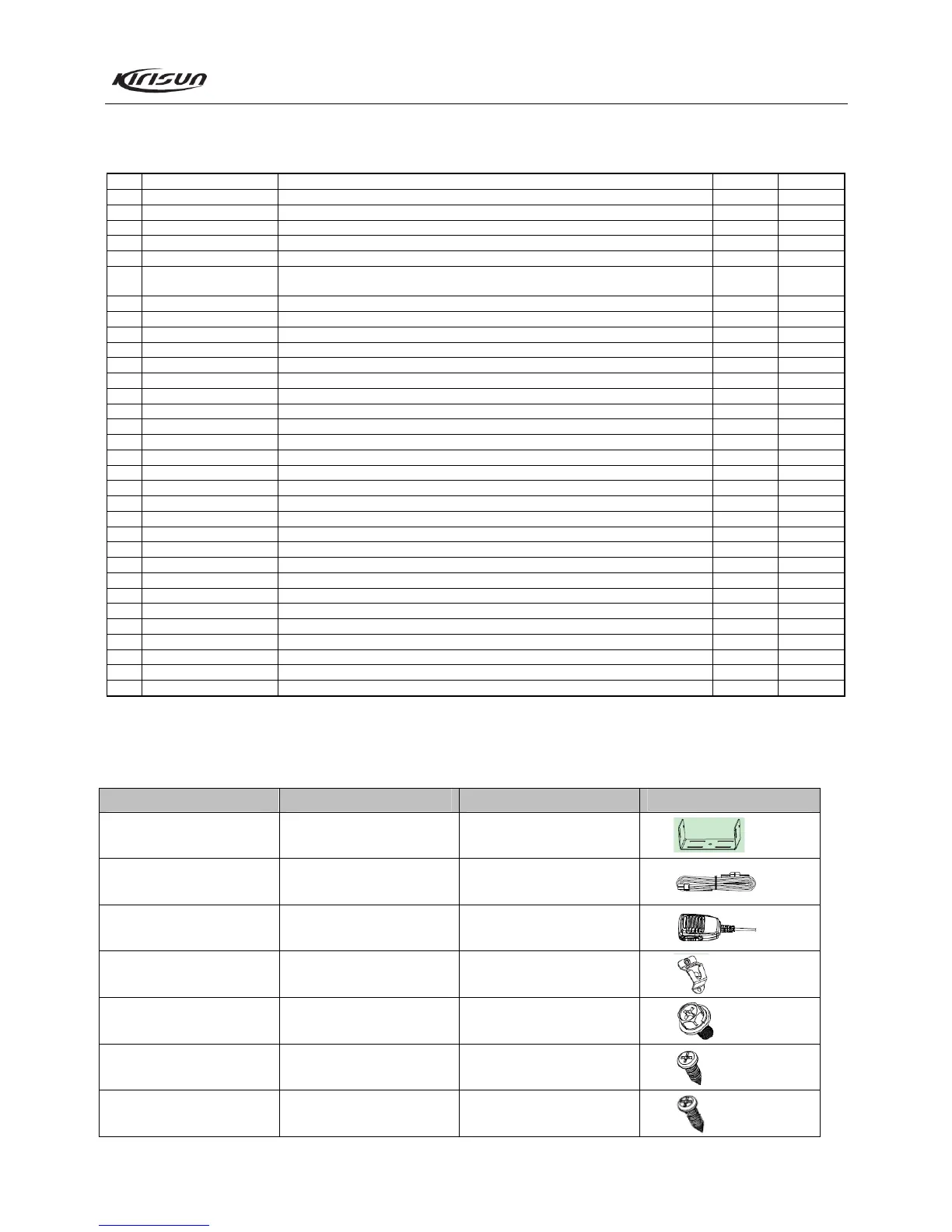

Appendix 3 Structural Parts List
No. Part number Description Unit Qty.
1 201-008100-R01A PT8100 Case Front/ ABS, Black, ROHS pcs 1
2 201-008100-R02A PT8100 Knob Volume / ABS, Black, white sign, ROHS pcs 1
3 201-008100-R03A PT8100 SR Power Line/ ABS, Black, ROHS pcs 1
4 201-008100-R04A PT8100 Lens Display Window / PC, Transparent, ROHS pcs 1
5 201-008100-R05A PT8100 Lens Led / PC, Transparent, ROHS pcs 1
6 202-008000-R03A
PT8000/8100 Washer Transmit Thermal / Rubber, Black, 3*7*15mm, HC240,
ROHS
pcs 1
7 202-008100-R01A PT8100 Key Rubber / rubber, silkprint, ROHS pcs 1
8 202-008100-R02A PT8100 Dustproof Cushion LCD/ Rubber,45 degree, black, ROHS pcs 1
9 202-008200-R02A PT8200 Plug Speaker Jack/ Rubber, Black, ROHS pcs 1
10 203-00618A-R08 PT618A Handed Microphone Bracket/ with 2pcs Screw(SP4*16), ROHS pcs 1
11 203-007200-R08 PT7200 Nut Volume Knob/ Cu, Zn-Plated, Black, ROHS pcs 1
12 203-008000-R01B PT8000 Case Top / Al, Spray Black Oil, ROHS pcs 1
13 203-008000-R02B PT8000 Case Bottom / Al, Spray Black Oil, ROHS pcs 1
14 203-008000-R03A PT8000 Metal Plate/ SECC, Thk's=1.2mm,Spray Black Oil, ROHS pcs 1
15 203-008000-R04A V8000 Assemble Bracket/ SUS304,Spray Black Oil, ROHS pcs 1
16 203-008100-R01A PT8100 METAL DOME，ROHS pcs 1
17 203-008200-R03B PT8200 Base Antenna / SL16-50KF-3,Plated Gold, ROHS pcs 1
18 203-008200-R05A PT8200 Shield Cover Power Module/Cu, Ni-Plated, ROHS pcs 1
19 204-008000-R01A PT8000 Dustproof Net Speaker/Black, ROHS pcs 1
20 204-008000-R02A PT8000 Dustproof Strip Case Front Top/ with Tape, Black, ROHS pcs 1
21 204-008000-R03A PT8000 Dustproof Strip Case Front Bottom/ with Tape, Black, ROHS pcs 1
22 204-008000-R04A PT8000 Dustproof Case Al/ with Tape, Black, ROHS pcs 2
23 204-008000-R06A PT8000/8100 Washer Sponge/ Sponge,60*38*10mm,ROHS pcs 1
24 204-008200-R08A PT8200 Film LCD Lens/ 0.1mm PVC,ROHS pcs 1
25 204-008200-R10B PT8200 Conductive Sponge/ 50*18.5*3,with Tape, ROHS pcs 1
26 301-25050J-R01C Screw/ M2.5*5.0,Black Zn-Plated, ROHS pcs 6
27 301-30060G-R01 Screw/ M3.0*6.0,Black Zn-Plated, ROHS pcs 7
28 301-30250D-R01 Screw/ M3.0*25.0,Black Zn-Plated, ROHS pcs 6
29 302-26060D-R01 Screw/ SP2.6*6.0,Black Zn-Plated, ROHS pcs 3
30 302-50160E-R01 Screw/ SP5.0*16.0,Ni-Plated,ROHS pcs 4
31 303-30100G-R01 Screw/ M3.0*10.0,with Flat and Spring Washer, Ni-Plated, ROHS pcs 5
32 303-40100D-R01 Screw/ M4.0*10.0, with Flat and Spring Washer, Black Zn-Plated, ROHS pcs 4
Appendix 4 Accessories
Item Model Specifications External View
Mounting Bracket
Power Cable
Hand Microphone KME215
Microphone Hanger
SEMS Screw M4.0*10.0
Self-tapping Screw M5.0*16.0
Self-tapping Screw M4.0*16.0
