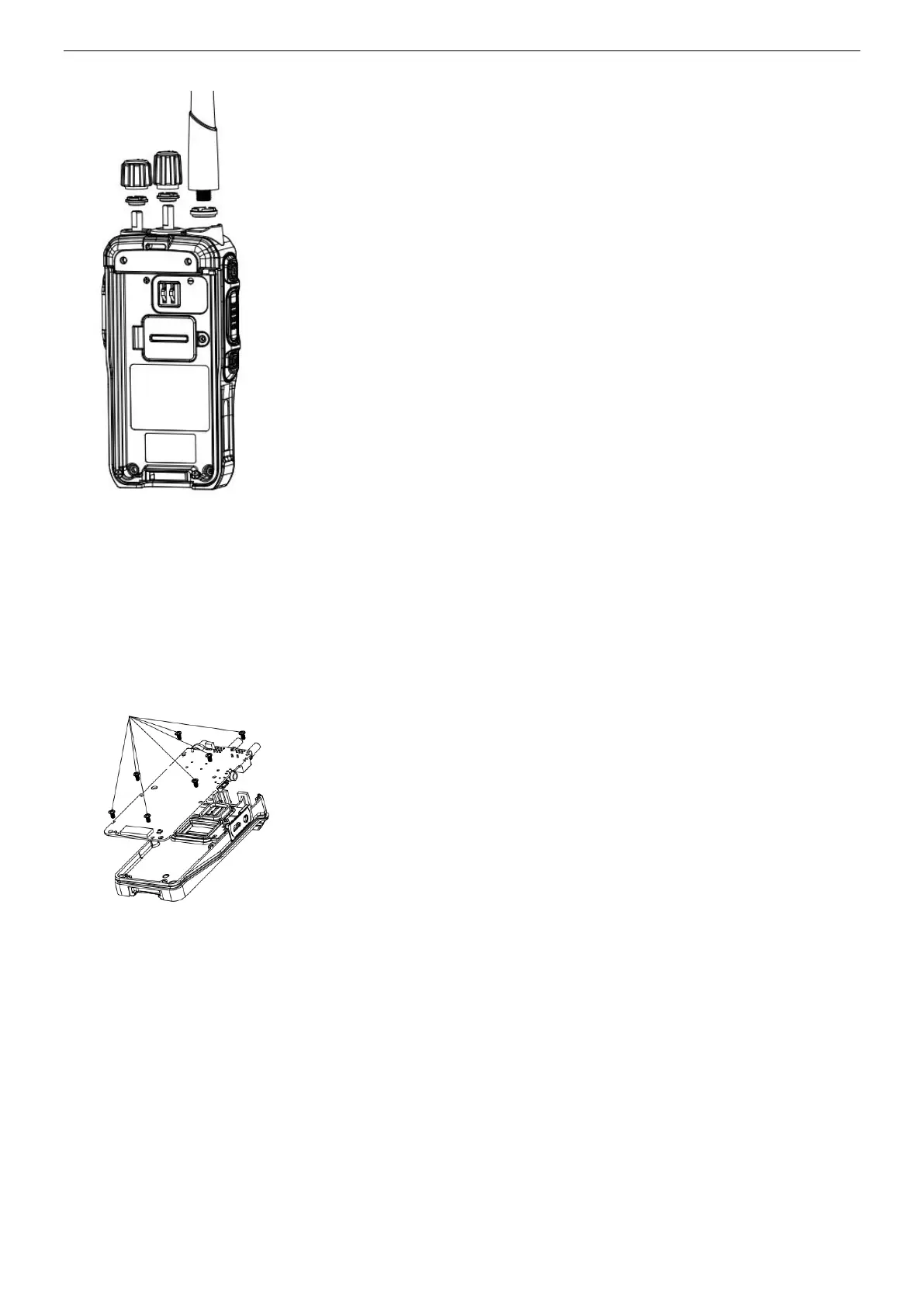

5.5 Detaching Main Board from Aluminum-Alloy Holder
1. Take down the ten bolts from the main board.
2. Screw down all the screws (two at the PTT key). Now the aluminum-alloy holder and the main board are
separated.
Explosion Diagram
