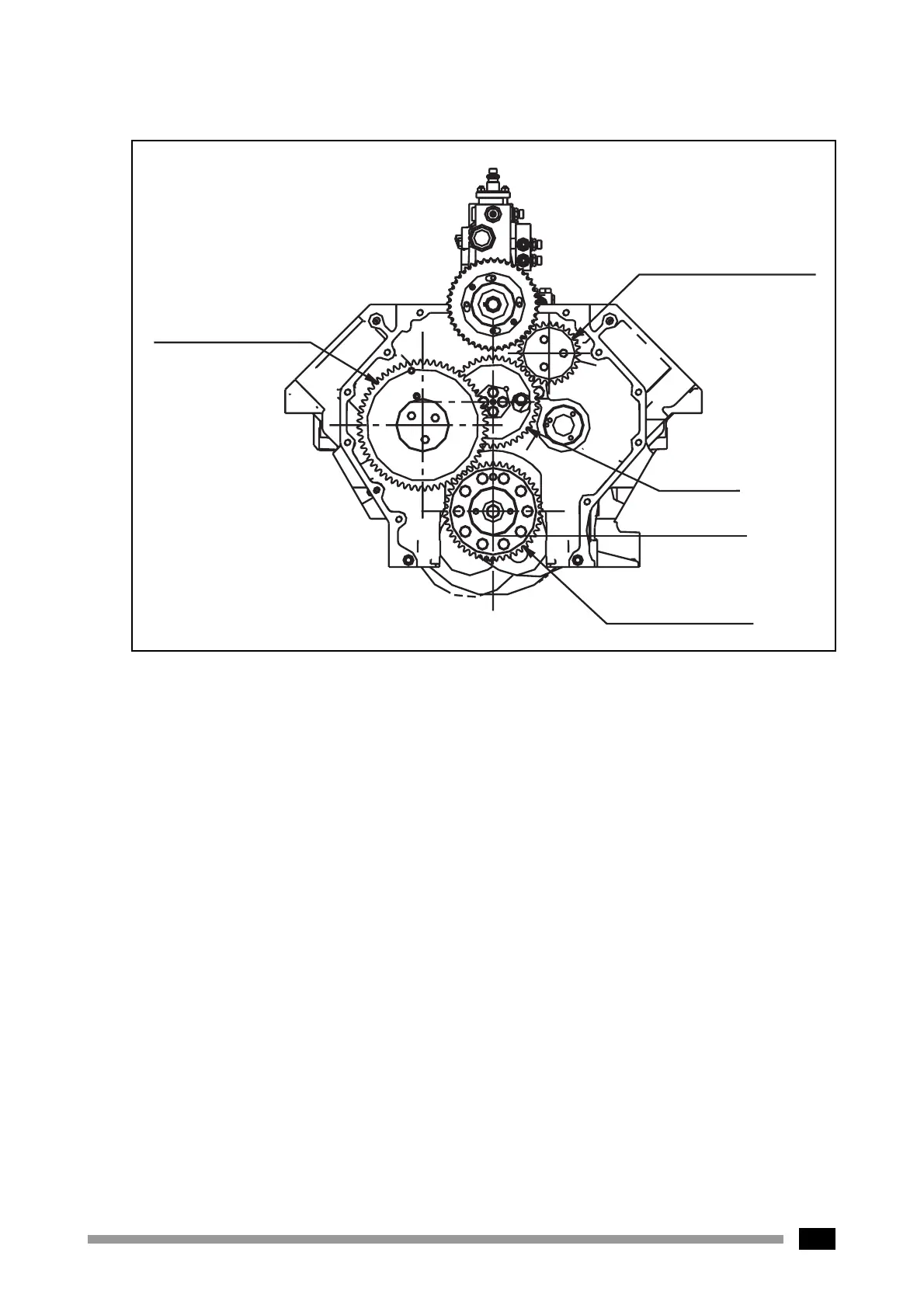

FUEL PUMP
GEAR
INTERMEDIATE GEAR
(CAM AND FUEL
PUMP GEAR)
INTERMEDIATE
DOUBLE GEAR
CAM GEAR)
(CRANK AND
CAM GEAR
GEAR TRAIN
ASSEMBLY
CRANK SHAFT GEAR
4.5 Gear Train Arrangment
Camshaft, lube oil pump and fuel injection pump are driven by a gear train arranged at Flywheel End.
Water pump is belt driven.
4.6 Valves
The overhead valves are actuated via chilled cast iron tappets, push rods and rocker arms from the camshaft.
