46
4.13 Electrical equipment

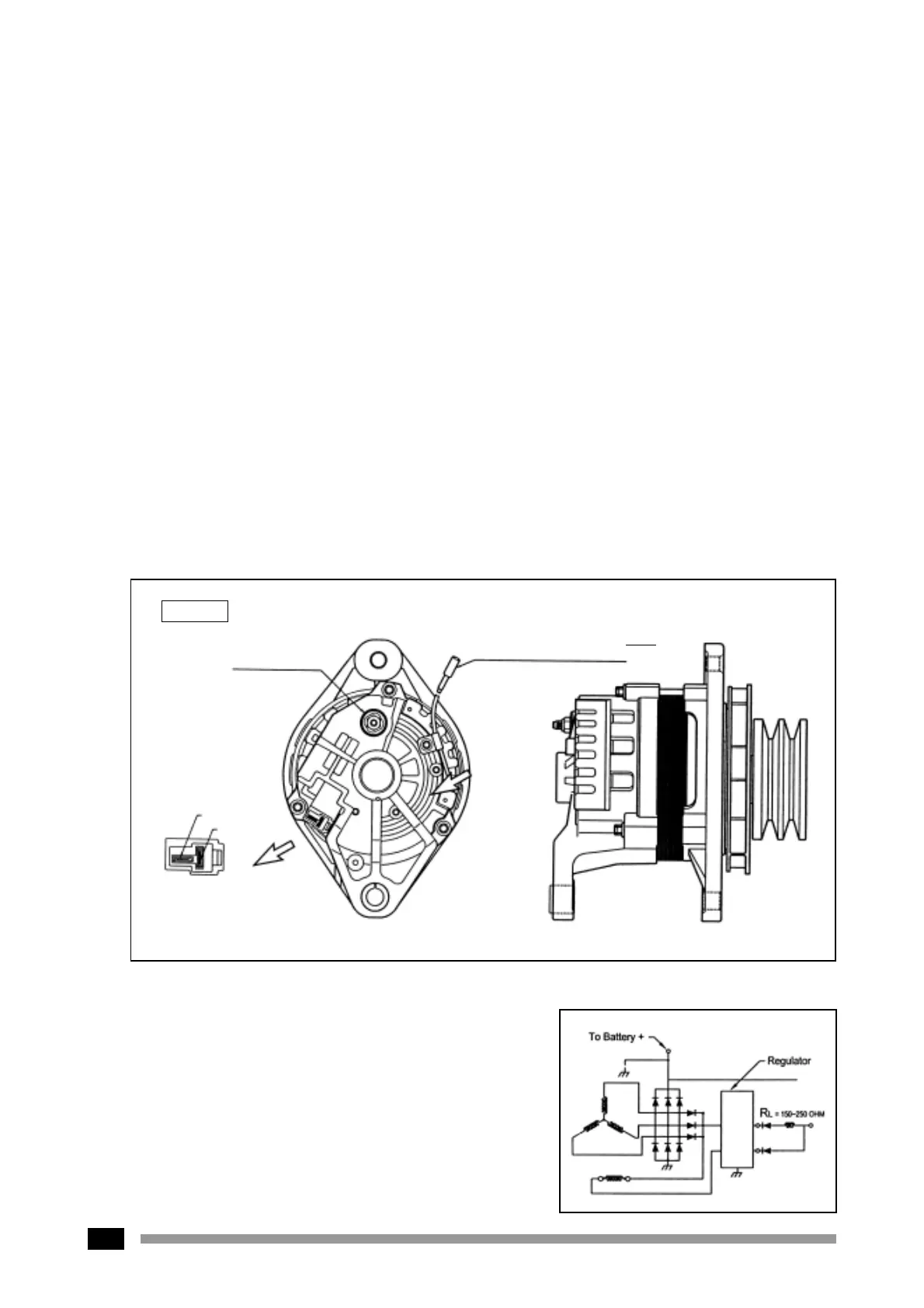

4.13.1 Alternator
The alternator is fitted with integral silicon rectifiers. A transistorized regulator mounted on the alternator
body interior limits the alternator voltage. The alternator should not be operated except with the regulator
and battery connected in circuit to avoid damage to the rectfier and regulator.
The alternator is maintenance-free, nevertheless, it must
be protected against dust and, above all, against moisture
and water.
Operate the alternator according to the instructions given
in the chapter.
Part List
1. Compressor cover 13. Journal bearing
2. Compressor locknut 14. Bearing hosing O ring (optional)
3. Compressor wheel 15. Bearing Housing
4. Circlip 16. Clamp plate
5. Insert 17. Screw and washer assembly
6. Insert O ring 18. Piston ring (Turbine)
7. Piston ring (Compressor) 19. Turbine backplate
8. Flinger sleeve 20. Shaft and Turbine wheel
9. Oil deflector 21. Setscrew
10. Thrust sleeve 22. Clamp plate
11. Thrust bearing 23. Turbine housing
12. Journal bearing circlip
M6 x 1.0 Thread
Battery Terminal
“L” Terminal
“R” Terminal
Connector Housing
KET MG 620042
Terminal
KET ST 740254
P-TAB : KET GP 890545
Tachometer Charge Indicator
ALDO System Frequency =
24V x 45A
Rpm
10
