These marks indicate mounting tab screw locations (refer to step 1 page 7)
NOTE: All depth measurements are taken from the front face of the adjacent cabinetry.
NOTE: To align drawer front to adjacent cabinetry, the product to counter top clearance can be increased
from 3mm.
Important!
Adjacent cabinetry must not extend above cavity base.
WARNING!
Ensure the edges of the services hole are smooth or covered to prevent damage to the power
cord or hoses.

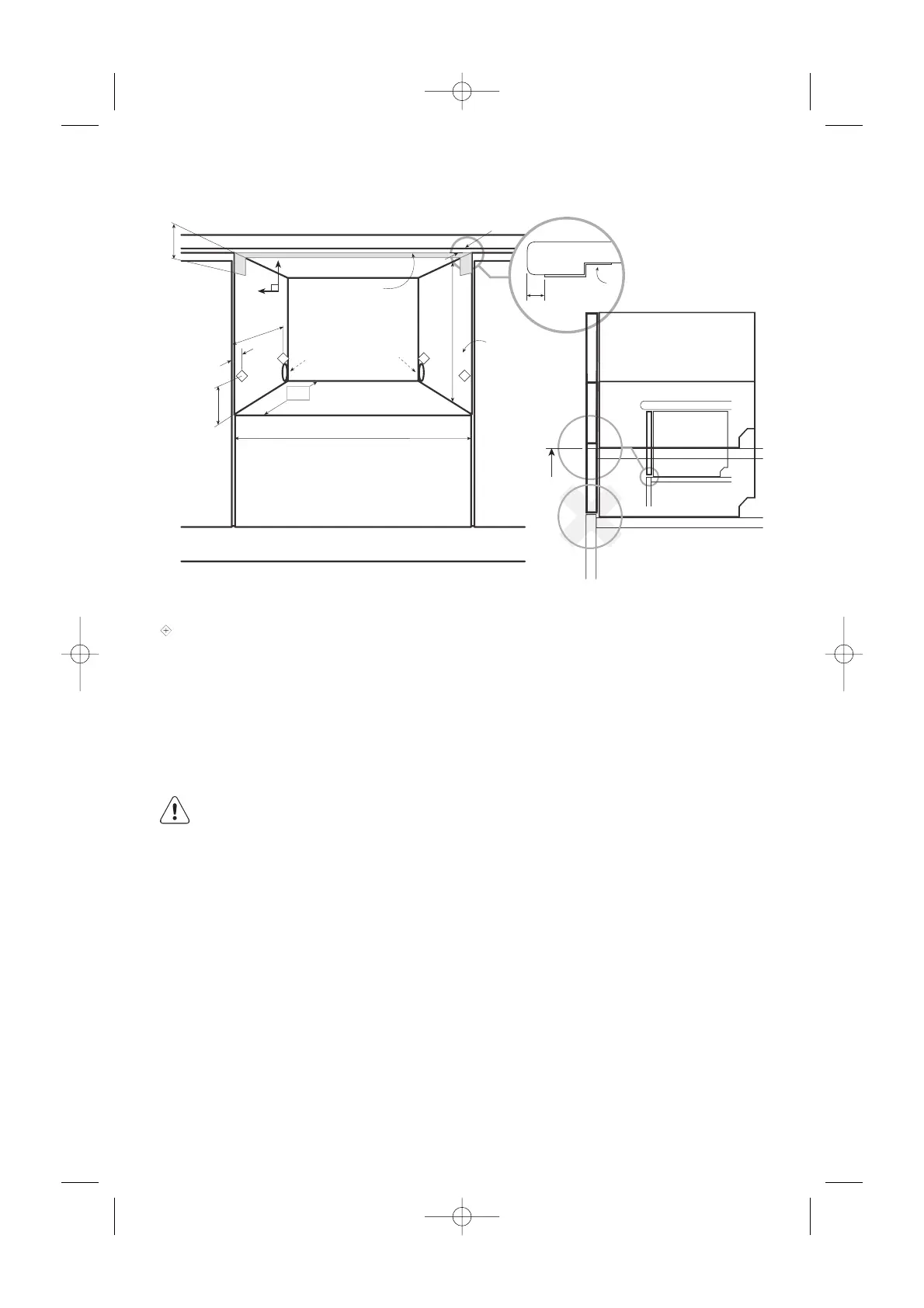

The cavity - single models
