KitchenAid KDDS 6010 - The Cavity - Double Models

NOTE: All depth measurements are taken from the front face of the adjacent cabinetry.
These marks indicate mounting tab screw locations (refer to step 1 page 7)
WARNING!
Ensure the edges of the services hole are smooth or covered to prevent damage to the power
cord of hoses.

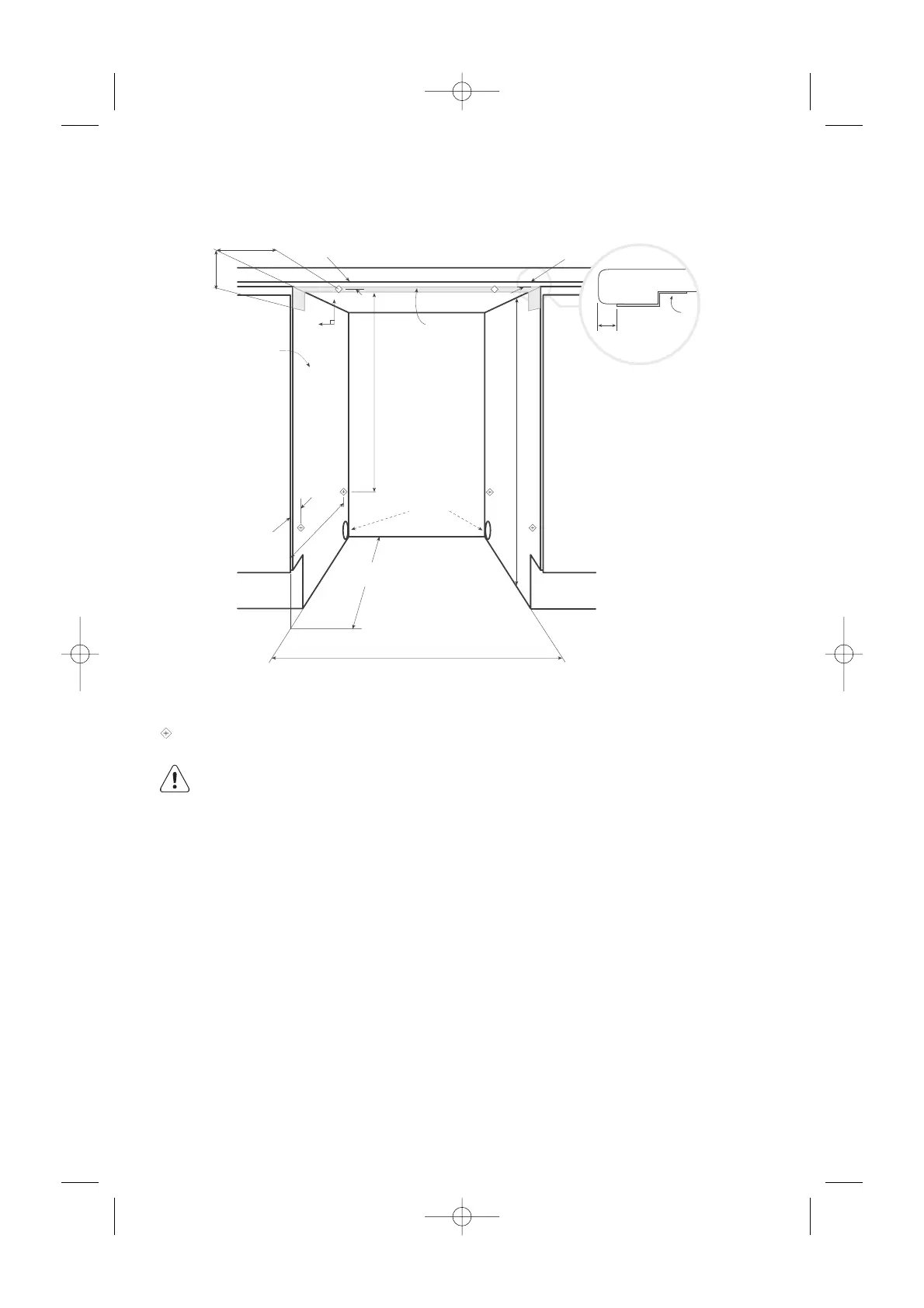

The cavity - double models
Min thickness
of cavity sides
is 16mm
Ø50mm
services hole
immediately
adjacent to corner,
can be either
side
600mm
580mm
throughout cavity
822.5mm-882.5mm
109.5mm
97mm
645.5mm
Screw 14mm From
front of cabinetry
+
90°
+
10mm
Moisture
Protection
Tape
100mm
5
05m m
benchtop
moisture
protection
tape
10mm
9
