OPERATION
KitchenAid 2015 Microltration Dishwashers
n
2-11
14
Culinary Tool Rack (3rd level rack)

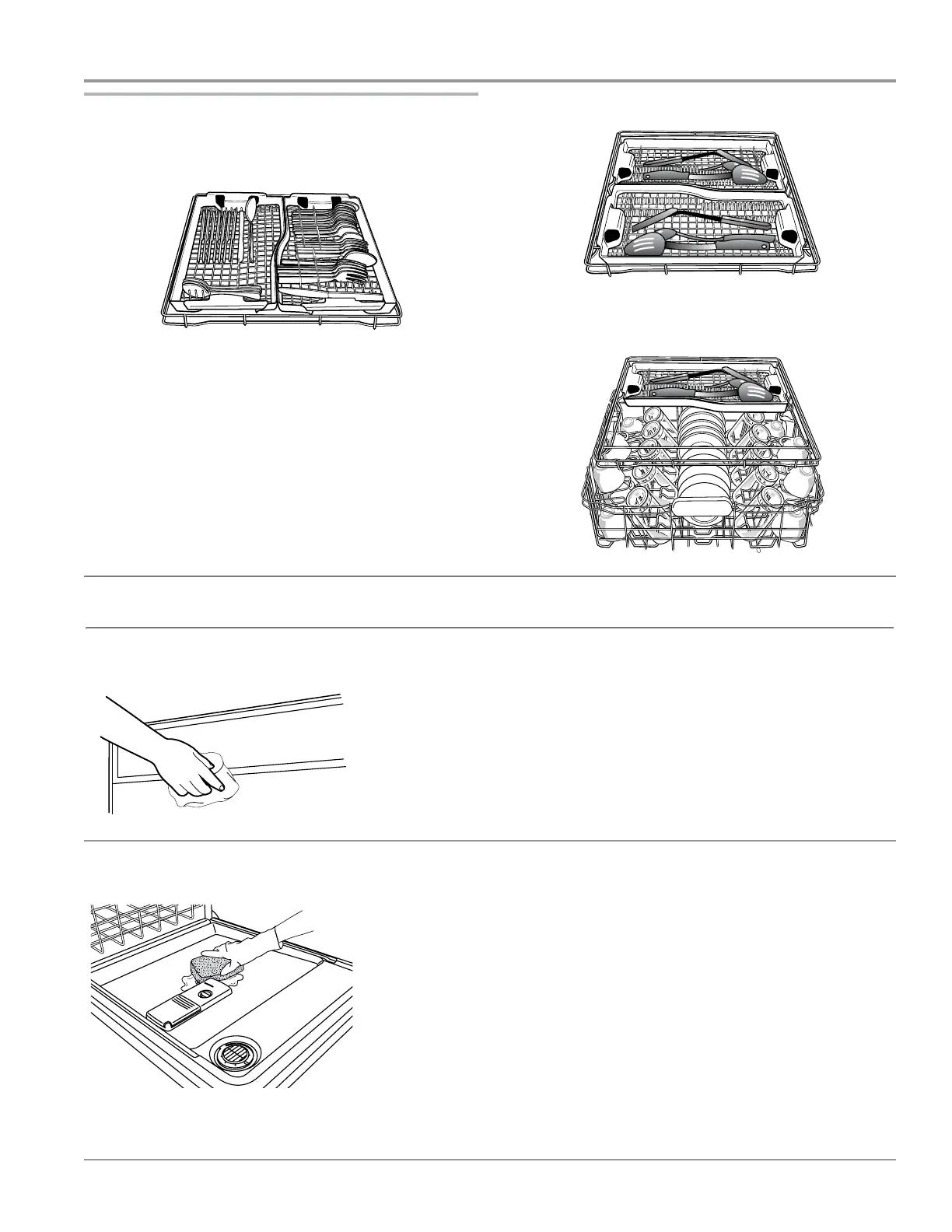

The culinary tool rack is designed with 2 movable baskets to hold
extra silverware, knives and cooking utensils.
Install the baskets in this up position when you have extra
silverware and flatware to wash.
Install the baskets in this down position when you have extra
silverware, knives, or utensils requiring more room to wash.
IMPORTANT: When you are using the culinary tool baskets in the
down position, the top rack must also be in the lowest position.
Remove the front basket in the down position, when you ar
e using
the cup shelves or other tall items in the top rack for more room.
&ILTRATION3YSTEM
Your dishwasher has the latest technology in dishwasher filtration. This triple filtration system minimizes sound and optimizes water and
energy conservation while providing superior cleaning performance. Throughout the life of your dishwasher, the filter will require
maintenance to sustain peak cleaning performance.
Up position
Down position
The triple filter system consists of 2 parts, an upper filter
assembly and a lower filter.
■ The upper filter assembly keeps oversized items and
foreign objects, along with very fine food particles, out of
the pump.
■
The lower filter keeps food from being recirculated onto
your dishware.
The filters may need to be cleaned when:
■ Visible objects or soils are on the Upper Filter Assembly.
■ There is degradation in cleaning performance (that is,
soils still present on dishes).
■ Dishes feel gritty to the touch.
Upper Filter
Assembly
Lower Filter
Dishwasher Care
15
It is very easy to remove and maintain the filters. The chart below shows the recommended cleaning frequency.
*Manufacturer's recommendation: This practice will conserve the water and energy that you would have used to prepare your dishes. This
will also save you time and effort.
Very Hard Water
If you have hard water (above 15 grains), clean your filter at least
once per month. Building up of white residue on your dishwasher
indicates hard water. For tips on removing spots and stains, see
“Troubleshooting” section.
Cleaning Instructions
IMPORTANT: Do not use wire brush, scouring pad, etc., as they
may damage the filters.
Rinse filter under running water until most soils are removed. If you
have hard-to-remove soils or calcium deposits from hard water, a
soft brush may be required.
IMPORTANT: To avoid damage to dishwasher, do not operate your
dishwasher without the filters properly installed. Be sure the Lower
Filter is securely in place and the Upper Filter Assembly is locked
into place. If the Upper Filter Assembly turns freely, it is not locked
into place.
$ISHWASHER#ARE
Cleaning
RECOMMENDED TIME INTERVALS TO CLEAN YOUR FILTER
Number of Loads
Per Week
If you wash
before loading
If you scrape and rinse
before loading
If you only scrape
before loading*
If you do not scrape or rinse
before loading
1-3 Once per year Once per year Twice per year Every two months
4-7 Once per year Once per year Twice per year Once per month
8-12 Once per year Twice per year Every three months Every two weeks
13-14 Once per year Twice per year Every three months Once per week
Filter Removal Instructions
1. Turn the Upper Filter
Assembly ¼ turn
counterclockwise and lift
out.
2. Grasp the Lower Filter in
the circular opening, lift
slightly, and pull forward to
remove.
3. Clean the filters as shown
below.
To remove Upper Filter Assembly
L
O
C
K
U
N
L
O
C
K
P
U
S
H
D
O
W
N
&
T
U
R
N
Filter Reinstallation Instructions
1. Noting the previous
illustrations, place the
Lower Filter under the
Locating Tabs in the
bottom of the dishwasher
so the round opening for
the Upper Filter Assembly
lines up with the round
opening in the bottom of
the tub.
To replace Upper Filter Assembly
2. Insert the Upper Filter Assembly into the circular opening in
the Lower Filter.
3. Slowly rotate the filter clockwise until it drops into place.
Continue to rotate until the filter is locked into place. If the
filter is not fully seated (still turns freely), continue to turn
the filter clockwise until it drops and locks into place.
NOTE: The Upper Filter Assembly arrow does not have to
align with the arrow in the Lower Filter as long as the filter is
locked.
L
O
C
K
U
N
L
O
C
K
P
U
S
H
D
O
W
N
&
T
U
R
N
†® affresh is a registered trademark of Whirlpool, U.S.A.
Cleaning the exterior
In most cases, regular use of a soft, damp cloth or sponge and a mild detergent is all that
is necessary to keep the outside of your dishwasher looking nice and clean. If your
dishwasher has a stainless steel exterior, a stainless steel cleaner is recommended, such
as affresh
®†
Stainless Steel Cleaner Part Number W10355016.
16
Dishwasher Maintenance Procedure
Drain Air Gap
Vacation or Extended Time Without Use
Cleaning the interior
Hard water minerals can cause a white film to build up on the inside surfaces, especially
just beneath the door area.
Do not clean the dishwasher interior until it has cooled. You may want to wear rubber
gloves. Do not use any type of cleanser other than dishwasher deter
gent because it may
cause foaming or sudsing.
To clean interior
Make a paste with powdered dishwasher detergent on a damp sponge and clean.
OR
Use liquid automatic dishwasher detergent and clean with a damp sponge.
OR
See the vinegar rinse procedure in “Cloudy or spotted dishware (and hard water
solution)” in “Troubleshooting” section.
NOTE: Run a normal cycle with dishwasher detergent after cleaning the interior.
Cleaning the Dishwasher
Clean the exterior of dishwasher with a soft, damp cloth and mild detergent. If your dishwasher has a stainless steel exterior, a stainless
steel cleaner is recommended, such as affresh
®
Stainless Steel Cleaner Part Number W10355016.
Removal of Hard Water / Filming:
Recommended use of a monthly maintenance product such as affresh
®
Dishwasher Cleaner Part Number W10282479.
■ Load your dishwasher (preferably with dishes affected by filming / hard water).
■ Place tablet in main wash compartment of detergent dispenser.
■ Select cycle/option best for heavily soiled dishes and start dishwasher.
NOTE: Recommended to use a premeasured detergent tablet or pack for regular daily use.
Some state or local plumbing codes require the addition of a drain air gap between a
built-in dishwasher and the home drain system. Check the drain air gap when your
dishwasher is not draining well.
The drain air gap is usually located on top of the sink or countertop near the dishwasher.
NOTE: The drain air gap is an external plumbing device that is not part of your
dishwasher. The warranty provided with your dishwasher does not cover service costs
directly associated with the cleaning or repair of the external drain air gap.
To clean the drain air gap
Clean the drain air gap periodically to ensure proper drainage of your dishwasher. With
most types, you lift off the chrome cover. Unscrew the plastic cap. Then check for any soil
buildup. Clean if necessary.
To reduce the risk of property
damage
■ If you will not be using the dishwasher during the summer months, turn off the water
and power supply to the dishwasher.
■ Make sure the water supply lines are protected against freezing conditions. Ice
formations in the supply lines can increase water pressure and damage your
dishwasher or home. Damage from freezing is not covered by the warranty.
■ When storing your dishwasher in the winter, avoid water damage by having your
dishwasher winterized by authorized service personnel.
Remove the front basket when more room is needed in the top
rack for use of cup shelves, or placement of other tall items.
